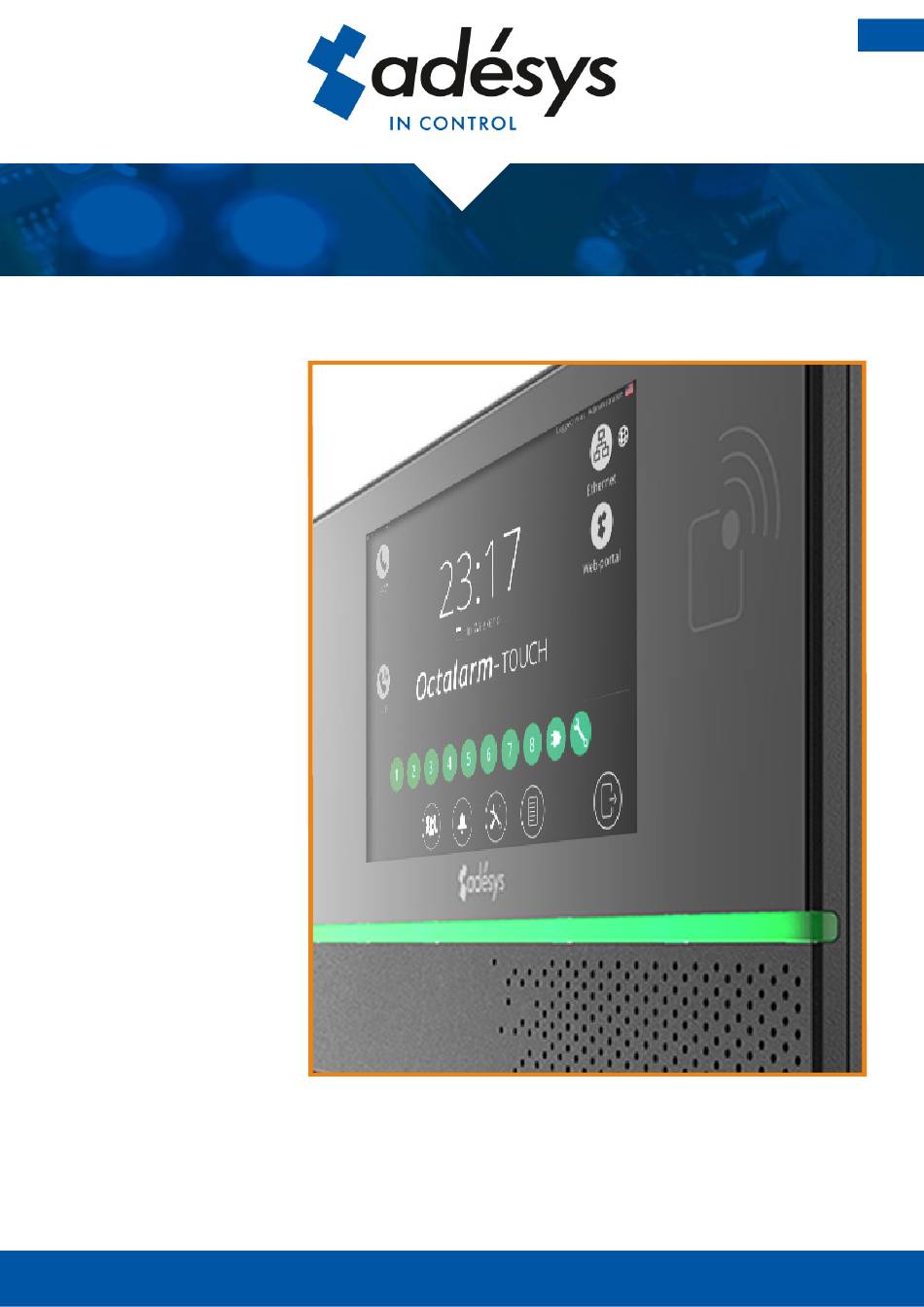

- Page 1 Quickstart Octalarm-Touch A0500.0030 | Version 11-2023 MEASURE - ALERT - CONNECT...
-
Page 2: Technical Specifications
Technical specifications System properties Contact inputs Voltage 30VDC Max <3V >4V Note • 10k pull-up to 12VDC • Input can be a contact to GND or a voltage Relay contact Max load 30VDC / 2A, 30VAC / 1A (resistive load) Open-drain output Max switch voltage 12V/300mA... -
Page 3: Installation
Stable internet connection You should connect the Octalarm alarm dialler to a stable Caution: only use the battery for the Octalarm-Touch (A-Batt- internet connection. If a firewall is used in the corporate network, 6,4V) supplied by Adésys! This battery has been developed by please refer to the information What to do in case of a firewall in Adésys, has been fully tested and has a communication chip. - Page 4 The EM-8001 can be used to extend the number of inputs on the immediately after installation and perform this test periodically. Octalarm-Touch to 16 or even 24 (max. 2 modules per alarm). The EM-8001 is connected to the Octalarm-Touch via the I/O bus 3.5.
-
Page 5: Accessories Included
Recycling and disposal can activate it during installation and use it to subscribe to Octalarm Connect. If the Octalarm-Touch or the battery is at the end of its service Antenna (AA-114) life, please observe the regulations in force in your country when SMA connector disposing of it. - Page 6 Create a free account at portal.octalarm.com Remote setup and management View current status alarms Installer can provide remote support Possible to use app “Adesys Alarm” Download the free app “Adesys Alarm” Access your dialler(s) literally from your pocket High priority alarms always on your mind...
