Enclosure; To Open; Releasing The Retaining Catch; Wall Mounting - Adesys Octalarm-IP User Manual

11.3

Enclosure

11.3.1 To Open

The Octalarm's inputs and outputs are located behind
the operating panel. Simply slide up the operating
panel to make connections:

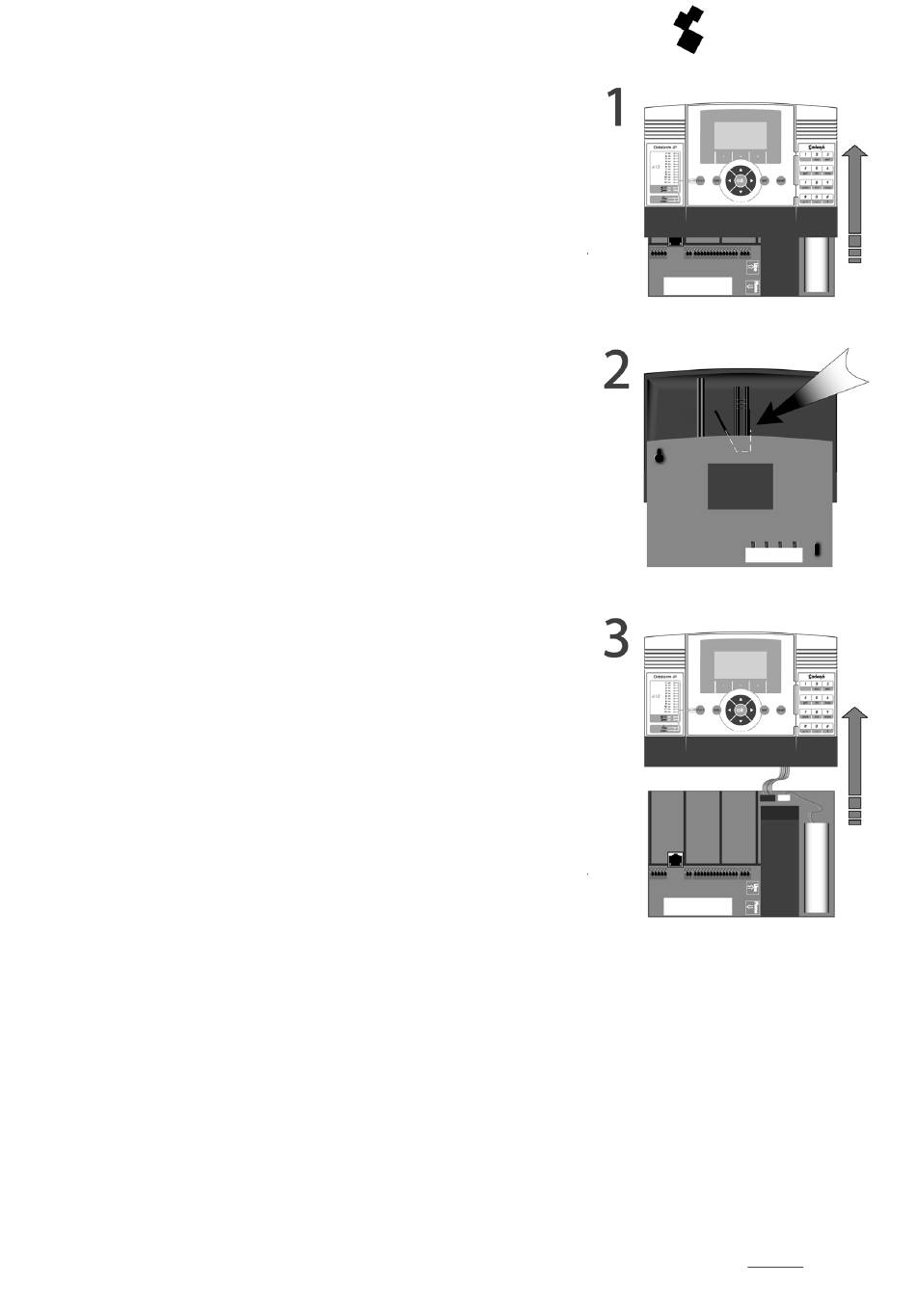

slide the operating panel up to the click stop (1).
•
NB: do not use too much force when doing
this.
If the alarm dialler doesn't slide open easily the
operating panel may be jammed and it will then
be necessary to find the cause of the jam first and
sort it out. If you don't do this you may damage
the alarm dialler.

11.3.2 Releasing the retaining catch

In order to remove the operating panel completely, to
change the battery for example, it is necessary to
release the retaining catch first:
on the rear of the operation panel there is a
•
small, triangular panel with a ridged zone that can
easily be felt;
pressing lightly on the ridged area (2) and sliding
•
the operating panel up further will cause it to
separate from the enclosure completely (3).
NB: take into account that the operating panel is
connected to the Octalarm's main printed
circuit board by a flat cable and a connector.
Disconnect this cable before setting the operating
panel to one side

11.3.3 Wall mounting

Proceed as follows if the Octalarm-IP is to be
mounted on a wall:
the rear of the Octalarm casing has two screw holes. One of these (1, top right,
•
viewed from the front) can only be accessed from the rear, the second (2, below left,
viewed from the front) can be accessed from the front;
drill a hole and screw a screw into the wall at the place where the top, right-hand side
•
(where the screw hole is located) of the Octalarm is to be hung;
hang the alarm dialler on the screw that's already in the wall, then hold it vertically
•
and mark the screw hole at the bottom left;
remove the alarm dialler and drill a new hole;
•
hang the Octalarm-IP on the first screw again, hold it vertical and screw in the second
•
screw.
