Summary of Contents for Adesys Octalarm-Touch Pro

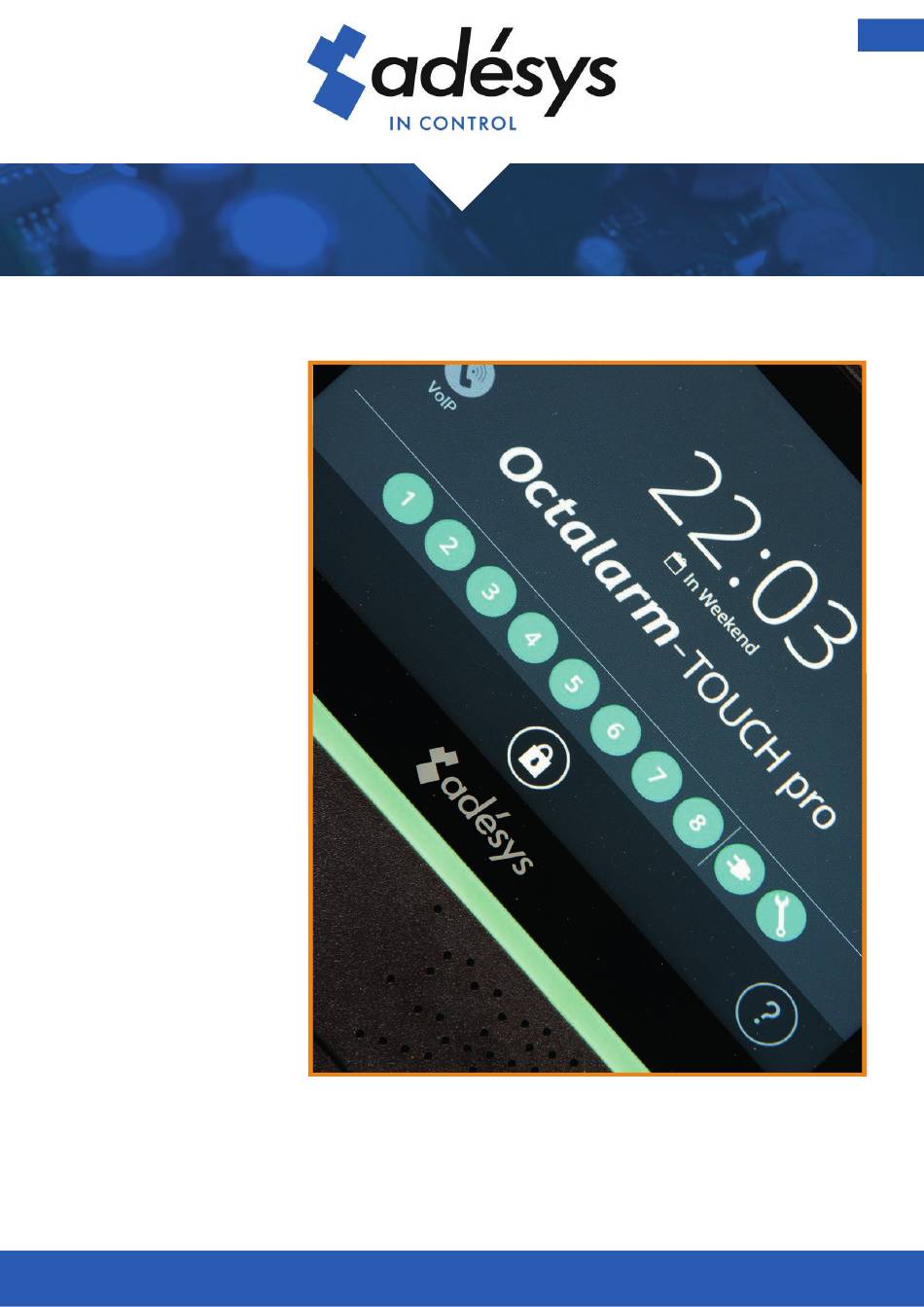

- Page 1 Quickstart Octalarm-Touch Pro Version 05-2021 MEASURE - ALERT - CONNECT...
-
Page 2: Technical Specifications
Technical specifications System properties Contact inputs Voltage Impedance 10k pull-up to 12VDC <2V >2.5V Note Input can be a contact to GND or a voltage Relay contact Max load 30VDC / 2A, 30VAC / 1A (resistive load) Open-drain output Max switch voltage 12V/300mA Max load current 350mA... - Page 3 Mounting the Octalarm-Touch Pro Before connecting the Octalarm-Touch Pro, the unit needs to be power mounted on a wall or solid object. The Octalarm-Touch Pro can be mounted by first placing screws in the wall before sliding the PSTN line in (RJ11) mounting holes on the device over them.
- Page 4 Adésys and has been fully tested. (Replacing the battery with an incorrect type may cause damage to the device and the battery.) Scherm pictogrammen RFID reader 3.4. PSTN configuration There are 2 ways to connect the Octalarm-Touch Pro to the PSTN: • standalone; Brand logo •...
-
Page 5: Maintenance
The EM-8001 can be used to extend the number of inputs on the batteries at your local waste collection point or recycling centre. Octalarm-Touch Pro to 16 or even 24 (max. 2 modules per alarm). Throwing the empty battery in a fire or hot oven may cause The EM-8001 is connected to the Octalarm-Touch Pro via the I/O bus an explosion. - Page 6 Molenweer 4 +31 174 794022 2291 NR Wateringen www.adesys.nl The Netherlands info@adesys.nl How to optimally use your dialler Create a free account at portal.octalarm.com Remote setup and management View current status alarms Installer can provide remote support Possible to use app “Adésys Alarm”...
