Connecting via Sensorbus

The Sensorbus connection makes it possible to
connect a number of alarms with a single twin core
cable (2 x 0.75 1,000m max). Coded terminal blocks
are required for this.

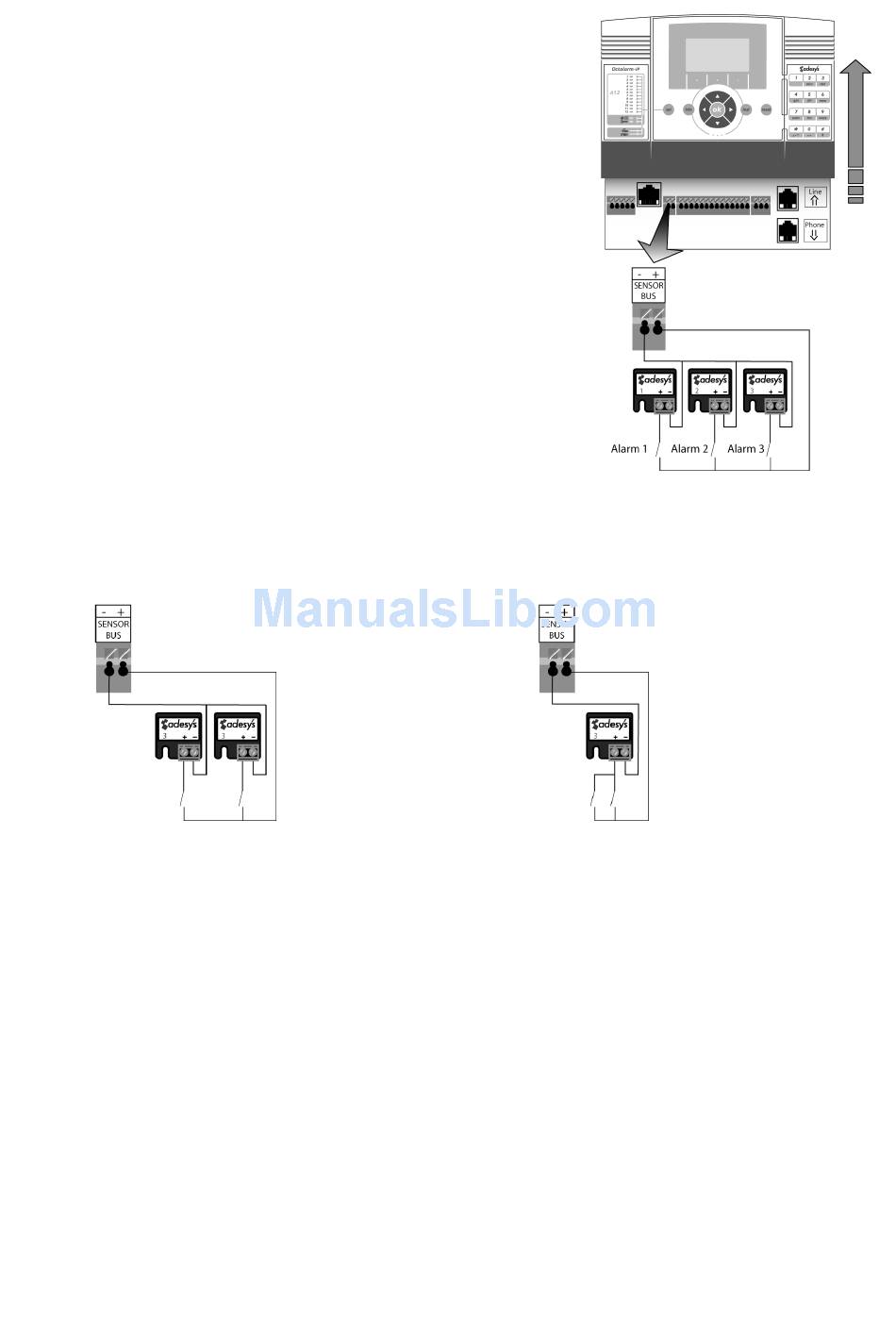

Connect the alarm contacts as illustrated.
Terminal blocks from the previous generation of
Octalarm's (sensornet) aren't compatible with the
current series. They should therefore never be
used in combination and old blocks should not be
connected to the Octalarm-IP.
All terminal blocks are coded from 1 to 12. The codes
correspond to the alarm inputs that the terminal block
will activate. If required you can use two blocks with
the same code in order to activate the same alarm
input or connect two alarm contacts to one terminal
block.
Like this: Or this:
