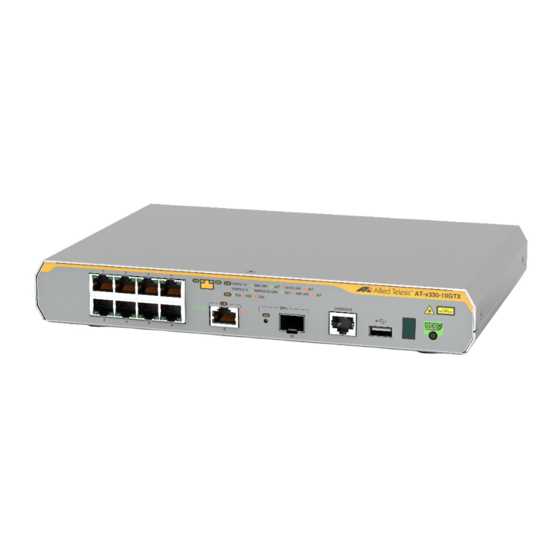

Allied Telesis x330 Series Installation Manual

Fanless gigabit layer 3 access switch virtual chassis stacking
Hide thumbs Also See for x330 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
x330 Series
Fanless Gigabit Layer 3 Access Switches
x330-10GTX
x330-20GTX
x330-28GTX
Installation Guide for Virtual Chassis
Stacking
613-002997 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the x330 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Allied Telesis x330 Series

Summary of Contents for Allied Telesis x330 Series

  • Page 1 Series Fanless Gigabit Layer 3 Access Switches x330-10GTX x330-20GTX x330-28GTX Installation Guide for Virtual Chassis Stacking 613-002997 Rev. A...
  • Page 2 Allied Telesis, Inc. has been advised of, known, or should have known, the...
  • Page 3 Electrical Safety and Emissions Standards This product meets the following standards. U.S. Federal Communications Commission Radiated Energy Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules.
  • Page 4 Table 1. Product Certifications (Continued) European Economic Area (EEA) (Conformité Européenne) WEEE (Waste Electrical and Electronic Equipment) RoHS (EU 1025/863) (Restriction of Hazardous Substances) European Standards (EN) EMC (Immunity): EN 55024, EN 55035 Laser Safety: EN 60825-1 EN 55032 Class A, EN 61000-3-2, EN 61000-3-3 India (Telecommunications Engineering Center) Japan...
  • Page 5 Translated Safety Statements Important: Safety statements that have the  symbol are translated into multiple languages in the Translated Safety Statements document at www.alliedtelesis.com/us/en/documents/translated- safety-statements Remarque: Les consignes de sécurité portant le symbole  sont traduites dans plusieurs langues dans le document Translated Safety Statements, disponible à l'adresse www.alliedtelesis.com/us/ en/documents/translated-safety-statements.

  • Page 7: Table Of Contents

    Contents Preface ....................................15 Document Conventions ...............................16 Contacting Allied Telesis ..............................17 Chapter 1: Overview ................................ 19 Front and Back Panels ................................20 Features ....................................22 10/100/1000Mbps Copper Ports ..........................22 1/2.5/5/10Gbps Multi-Gigabit Copper Ports........................22 1/10Gbps SFP+ Ports ..............................22 Port and System LEDs ..............................23 Installation Options ...............................23 MAC Address Table ..............................23...
  • Page 8 Contents Hardware Options ................................74 RKMT-J13 Equipment Rack Brackets Kit ........................74 BRKT-J24 Wall Brackets Kit ............................75 Installing the Switch on a Table ............................76 Chapter 4: Installing the x330-20GTX Switch in an Equipment Rack ................. 79 Introduction ..................................80 Installing the x330-20GTX Switch............................
  • Page 9 Series Installation Guide fo Virtual Chassis Stacking Appendix A: Technical Specifications ......................... 151 Physical Specifications ..............................152 Environmental Specifications.............................155 Power Specifications .................................156 Certifications ..................................157 RJ-45 Copper Port Pinouts..............................159 RJ-45 Style Serial Console Port Pinouts ...........................160...
  • Page 10 Contents...
  • Page 11 Figures Figure 1: Front Panel of the x330-10GTX Switch .........................20 Figure 2: Front Panel of the x330-20GTX Switch .........................20 Figure 3: Front Panel of the x330-28GTX Switch .........................21 Figure 4: Back Panels ................................21 Figure 5: Speed/Activity and Duplex Mode LEDs for the 10/100/1000Mbps Copper Ports..........30 Figure 6: Speed/Activity LEDs for the 1/2.5/5/10Gbps Multi-Gigabit Copper Ports..............32 Figure 7: Speed/Activity LEDs for the 1/10Gbps SFP+ Ports....................33 Figure 8: Switch ID LED ...............................35...
  • Page 12 Figures Figure 50: Marking the Locations of the BRKT-J24 Bracket Holes on a Concrete Wall ............97 Figure 51: Securing the x330 Switch on a Concrete Wall.....................98 Figure 52: Installing the Power Cord Retaining Clip ......................100 Figure 53: Connecting the AC Power Cord.........................100 Figure 54: Lowering the Power Cord Retaining Clip......................101 Figure 55: Connecting the Power Cord to an AC Power Outlet..................101 Figure 56: Management Cable Included with Switch......................102...
  • Page 13 Tables Table 1: Product Certifications ...............................3 Table 2: Specifications of the 10/100/1000Mbps Copper Ports ...................25 Table 3: Specifications of the 1/2.5/5/10Gbps Multi-Gigabit Copper Ports ................27 Table 4: Speed/Activity LEDs for the 10/100/1000Mbps Copper Ports ................30 Table 5: Duplex Mode LEDs for the 10/100/1000Mbps Copper Ports .................31 Table 6: Speed/Activity LEDs for the 1/2.5/5/10Gbps Multi-Gigabit Copper Ports ..............32 Table 7: Speed/Activity LEDs for the 1/10Gbps SFP+ Ports ....................33 Table 8: PORT Parameter Format ............................56...
  • Page 14 Tables...

  • Page 15: Preface

    The x330-10GTX Switch is included in Chapter 1, “Overview” on page 19. However, it does not support the VCStack feature. For instructions on how to install x330 Switches as standalone units, refer to the x330 Series Installation Guide for Standalone Switches.

  • Page 16: Document Conventions

    Preface Document Conventions This document uses the following conventions: Note Notes provide additional information. Caution Cautions inform you that performing or omitting a specific action may result in equipment damage or loss of data. Warning Warnings inform you that performing or omitting a specific action may result in bodily injury.

  • Page 17: Contacting Allied Telesis

    Series Installation Guide for Virtual Chassis Stacking Contacting Allied Telesis For assistance with this product, you may contact Allied Telesis technical support on the Services & Support section of the Allied Telesis web site at www.alliedtelesis.com/us/en/services-support. The page has links to the following services: Helpdesk (Support Portal) - Log onto Allied Telesis interactive ...
  • Page 18 Preface...
  • Page 19  “Power Supply and Power Savings Features” on page 40  Note This chapter includes the x330-10GTX Switch. However, that model does not support the VCStack feature. For installation instructions, refer to the x330 Series Installation Guide for Standalone Switches.

  • Page 20: Chapter 1: Overview

    Chapter 1: Overview Front and Back Panels Figure 1 shows the front panel of the x330-10GTX Switch. E. One USB Flash Drive A. Eight 10/100/1000Mbps Port Copper Ports F. Switch ID LED B. One 1/2.5/5/10Gbps Multi-Gigabit Copper Port G. eco-friendly Button C.

  • Page 21: Figure 3: Front Panel Of The X330-28Gtx Switch

    Series Installation Guide for Virtual Chassis Stacking Figure 3 shows the front panel of the x330-28GTX Switch. E. One Local Management A. Twenty-four 10/100/ Console Port 1000Mbps Copper Ports F. Switch ID LED B. Two 1/2.5/5/10Gbps Multi-Gigabit Copper Ports G.

  • Page 22: Features

    Chapter 1: Overview Features 10/100/1000Mbps The basic features of the 10/100/1000Mbps copper ports are listed here: Copper Ports 10Base-T, 100Base-TX, and 1000Base-T compliant  IEEE 802.3u Auto-Negotiation compliant  Auto-MDI/MDIX  100 meters (328 feet) maximum operating distance  IEEE 802.3x flow control in 10/100Base-TX full-duplex mode ...

  • Page 23: Port And System Leds

    The ports support full-duplex mode only. Note SFP and SFP+ transceivers are sold separately. Refer to the product’s data sheet on the Allied Telesis website for a list of supported transceivers. Note The switches do not support the 7-meter AT-SP10TW7 direct connect twinax cable.

  • Page 24: Energy Savings

    Chapter 1: Overview Remote HTTP and HTTPS web browser management  Command line interface  Autonomous Management Framework  Vista Manager EX  SNMPv1, v2c, and v3  Energy Savings Here are energy saving features: eco-friendly button for turning on and off the port LEDs ...

  • Page 25: 10/100/1000Mbps Copper Ports

    Series Installation Guide for Virtual Chassis Stacking 10/100/1000Mbps Copper Ports Table 1 lists the specifications of the 10/100/1000Mbps copper ports. Table 1. Specifications of the 10/100/1000Mbps Copper Ports Feature Description Speeds Port speeds are listed here: - 10Mbps (IEEE802.3 10Base-T) - 100Mbps (IEEE802.3u 100Base-TX)
  • Page 26 Chapter 1: Overview Table 1. Specifications of the 10/100/1000Mbps Copper Ports (Continued) Feature Description Additional Features Additional features are listed here: - 8-pin RJ-45 connectors - Backpressure flow control supported at half- duplex mode - Non-blocking, wire speed supported at all speeds.

  • Page 27: 1/2.5/5/10Gbps Multi-Gigabit Copper Ports

    Series Installation Guide for Virtual Chassis Stacking 1/2.5/5/10Gbps Multi-Gigabit Copper Ports The x330-10GTX Switch has one Multi-Gigabit copper port. The x330- 20GTX and x330-28GTX Switches have two Multi-Gigabit copper ports. Table 2 lists the port specifications. Table 2. Specifications of the 1/2.5/5/10Gbps Multi-Gigabit Copper Ports...
  • Page 28 Chapter 1: Overview Table 2. Specifications of the 1/2.5/5/10Gbps Multi-Gigabit Copper Ports Specification Description Additional Features Additional features are listed here: - 8-pin RJ-45 connectors - Non-blocking, wire speed supported at all speeds - Supports up to 12KB jumbo frames at 1/ 5/10Gbps - Supports up to 10KB jumbo frames at 2.5Gbps...

  • Page 29: Sfp+ Ports

    Series Installation Guide for Virtual Chassis Stacking SFP+ Ports The x330-10GTX Switch has one SFP+ port. The x330-20GTX and x330- 28GTX Switches have two SFP+ ports. The ports support the following types of 1Gbps SFP and 10Gbps SFP+ transceivers: 1Gbps SFP 1000Base-SX/LX transceivers ...

  • Page 30: Port Leds

    Chapter 1: Overview Port LEDs This section describes the copper, Multi-Gigabit, and SFP+ port LEDs. 10/100/1000Mbps The 10/100/1000Mbps copper ports have two LEDs that display the following information: Copper Port LEDs Speed/activity  Duplex mode  The LEDs are identified in Figure 5. Duplex mode LED Speed/activity LED Duplex mode LED...
  • Page 31 Series Installation Guide for Virtual Chassis Stacking Table 3. Speed/Activity LEDs for the 10/100/1000Mbps Copper Ports State Description Possible causes of this state are listed here: - The port has not established a link with another network device. - The LEDs are turned off. To turn on the LEDs, use the eco-friendly button.

  • Page 32: 1/2.5/5/10Gbps Multi-Gigabit Copper Port Leds

    Chapter 1: Overview 1/2.5/5/10Gbps The 1/2.5/5/10Gbps Multi-Gigabit copper ports have two LEDs that display speed/activity information. Refer to Figure 6. Multi-Gigabit Copper Port LEDs 1Gbps 2.5/5/10Gbps x330-10GTX Switch 1Gbps 2.5/5/10Gbps 1Gbps 2.5/5/10Gbps x330-20GTX and x330-28GTX Switches Figure 6. Speed/Activity LEDs for the 1/2.5/5/10Gbps Multi-Gigabit Copper Ports Table 5 describes the LEDs.

  • Page 33: 1/10Gbps Sfp+ Port Leds

    Series Installation Guide for Virtual Chassis Stacking Table 5. Speed/Activity LEDs for the 1/2.5/5/10Gbps Multi-Gigabit Copper Ports (Continued) State Description Possible causes of this state are listed here: - The port has not established a link with another network device.

  • Page 34: Eco-Friendly Button

    Chapter 1: Overview eco-friendly Button You use the eco-friendly button on the front panel of the switch to toggle the port LEDs on and off. You can conserve electricity by turning off the LEDs when you are not monitoring the device. When the LEDs are turned off, the switch is operating in the low power eco-friendly mode.

  • Page 35: Switch Id Led

    Series Installation Guide for Virtual Chassis Stacking Switch ID LED The Switch ID LED, shown in Figure 8, is for the VCStack feature for the x330-20GTX and x330-28GTX Switches. You can manage up to six switches as a single unit. This simplifies network management and allows you to add redundancy to your network topology by distributing functions across multiple switches.

  • Page 36: Figure 10: Switch Id Led With Eco-Friendly Mode On (Port Leds Off)

    Chapter 1: Overview Note The x330-10GTX Switch does not support the VCStack feature. It operates as a standalone device with the Switch ID “0”. Note If the Switch ID LED displays “F” for a fault condition, use the SHOW SYSTEM ENVIRONMENT command in the command line interface of the AlliedWare Plus management software to identify the source of the problem.

  • Page 37: Usb Port

    Series Installation Guide for Virtual Chassis Stacking USB Port You can use the USB port to store configuration files on flash drives to maintain a history of the switch’s configurations, or to restore configuration files to the switch. You can also use the port and flash drives to quickly configure replacement units and update the AlliedWare Plus management software.

  • Page 38: Console Port

    To perform local management sessions, you need a management cable to connect your workstation to the Console port. Two cables are available from Allied Telesis. One cable comes with the switch. It has an RJ-45 (8P8C) connector that connects to the Console port on the switch and a DB-9 (D-sub 9-pin) connector that connects to your workstation.

  • Page 39: Figure 13: Vt-Kit3 Management Cable, Management Workstation, And Switch

    You connect the cable to the Console port on the switch with a standard, straight-through Ethernet cable. Refer to Figure 13. The cable requires a software driver from Allied Telesis. The VT-Kit3 management cable is sold separately. Figure 13. VT-Kit3 Management Cable, Management Workstation, and...

  • Page 40: Power Supply And Power Savings Features

    Chapter 1: Overview Power Supply and Power Savings Features The switch has one internal power supply. The power supply is not field- replaceable. Refer to “Power Specifications” on page 156 for the input voltage ranges. Warning Power cord is used as a disconnection device. To de-energize equipment, disconnect the power cord.

  • Page 41: Chapter 2: Virtual Chassis Stacking

    For more information on VCStack, refer to the Stacking Introduction and Stacking Commands chapters in the Software Reference for x330 Series Switches, AlliedWare Plus Operating System or the Virtual Chassis Stacking Feature Overview and Configuration Guide on the Allied Telesis website.

  • Page 42: Overview

    Chapter 2: Virtual Chassis Stacking Overview The Virtual Chassis Stacking (VCStack) feature allows you connect up to six x330-20GTX and x330-28GTX Switches into a virtual stack so that they function as a single networking unit. Here are some of the VCStack benefits: Simplifies management - You can manage the devices as a single ...

  • Page 43: Stacking Guidelines

    Series Installation Guide for Virtual Chassis Stacking Stacking Guidelines Here are general VCStack guidelines: A stack can have up to six x330-20GTX and x330-28GTX  Switches. VCStack comes standard with the AlliedWare Plus management  software. No additional software or licenses are required.

  • Page 44: Stack Trunks

    The x330 Switches do not support the 7-meter SP10TW7 cable. The fiber optic transceivers or direct attach cables for the trunk  must be from Allied Telesis. For a list of supported transceivers, refer to the product’s data sheet on the Allied Telesis web site.

  • Page 45: Figure 14: Stack Trunks Of Sfp+ Ports S1 And S2 For Two Switches

    Series Installation Guide for Virtual Chassis Stacking Figure 14 to Figure 16 on page 46 illustrate several cabling examples of the SFP+ ports S1 and S2 as the trunk for stacks of two, three, and four switches. As illustrated, the trunk cables can crossover to different SFP+ ports S1 and S2 on the switches or connect the same ports.

  • Page 46: Figure 16: Stack Trunks Of Sfp+ Ports S1 And S2 For Four Switches

    Chapter 2: Virtual Chassis Stacking Crossover Straight-through Figure 16. Stack Trunks of SFP+ Ports S1 and S2 for Four Switches Stacks can have both x330-20GTX and x330-28GTX Switches. The stack in Figure 17 has two x330-20GTX Switches (top) and two x330-28GTX Switches (bottom).

  • Page 47: Multi-Gigabit Copper Ports

    Series Installation Guide for Virtual Chassis Stacking In the previous figures, the top and bottom switches are connected to form a loop topology in the trunk. This adds redundancy to the trunk by allowing the switches to maintain the stack even if a trunk link should fail.

  • Page 48: Figure 20: Stack Trunks Of Multi-Gigabit Copper Ports For Three Switches

    Chapter 2: Virtual Chassis Stacking Straight-through Crossover Figure 20. Stack Trunks of Multi-Gigabit Copper Ports for Three Switches Crossover Straight-through Figure 21. Stack Trunks of Multi-Gigabit Copper Ports for Four Switches As with the SFP+ ports S1 and S2, the Multi-Gigabit copper ports support the chain topology, where ports on the top and bottom switches are unused.

  • Page 49: Unsupported Trunks

    Series Installation Guide for Virtual Chassis Stacking Figure 22. Chain Stack Trunk of Multi-Gigabit Copper Ports Unsupported The following examples illustrate unsupported trunks: Trunks Trunks cannot have both Multi-Gigabit copper ports and SFP+  ports S1 and S2. Refer to Figure 23.

  • Page 50: Figure 24: Unsupported Trunk Of Sfp+ Ports S1 And S2 With Mixed Cables

    Chapter 2: Virtual Chassis Stacking The cables of a stack trunk of the SFP+ ports S1 and S2 can be  either fiber optic or direct attach cables, but not both. The trunk in Figure 24 is unsupported because it has both fiber optic and direct attach cables.

  • Page 51: Figure 25: Unsupported Trunk With A Network Device Between Trunk Ports

    Series Installation Guide for Virtual Chassis Stacking Building 1 Media Converter Building 2 Figure 25. Unsupported Trunk with a Network Device Between Trunk Ports...

  • Page 52: Master And Member Switches

    Chapter 2: Virtual Chassis Stacking Master and Member Switches Stacks have a master switch. It coordinates and monitors stack operations, and assigns switch ID numbers during the initial formation of the stack and when new switches are added. The other switches of the stack are referred to as member switches.

  • Page 53: Switch Id Numbers

    Series Installation Guide for Virtual Chassis Stacking Switch ID Numbers Each switch in the stack must have an ID number. The range is 1 to 6. The default is 1. The ID numbers are displayed on the ID LEDs on the front panels of the units.

  • Page 54: Feature Licenses

    The switches might have additional features that are unlocked with feature licenses from Allied Telesis. Refer to the product’s data sheet on the Allied Telesis website for a list of feature licenses. Here are feature license guidelines: VCStack is part of the base features of x330 Switches.

  • Page 55: Planning The Stack

    Series Installation Guide for Virtual Chassis Stacking Planning the Stack Here are questions to answer before building the stack: How many switches will be in the stack? Stacks can have one  master switch and up to five member switches.

  • Page 56: Specifying Ports In The Command Line Interface

    Chapter 2: Virtual Chassis Stacking Specifying Ports in the Command Line Interface The ports on the switches of the stack are specified in the AlliedWare Plus command line interface with the PORT parameter. The format of the parameter is shown in Figure 26. port n.n.n Stack ID Module ID...
  • Page 57 This example enters the Port Interface mode for ports 1 and 2 on a switch with the ID number 3: awplus> enable awplus# configure terminal awplus(config)# interface port3.0.1-port3.0.2 For instructions on the AlliedWare Plus command line interface and the PORT parameter, refer to the Software Reference for x330 Series Switches, AlliedWare Operating System.

  • Page 58: Vcstack Worksheet

    Chapter 2: Virtual Chassis Stacking VCStack Worksheet The worksheet in Table 8 is provided to assist you in building and maintaining a stack. Table 8. VCStack Worksheet Firmware Trunk Ports: Model/ Switch Prior- Transceivers in Version Switch SFP+ or Multi- Location SFP+ Ports Gigabit Copper...
  • Page 59 Series Installation Guide for Virtual Chassis Stacking Table 9. Stacking Worksheet Columns (Continued) Column Description Switch ID The switches in the stack must have unique ID numbers, in the range of 1 to 6. You use the numbers to identify and configure the switches in the AlliedWare Plus software.
  • Page 60 Chapter 2: Virtual Chassis Stacking Table 9. Stacking Worksheet Columns (Continued) Column Description Firmware Version Use this column to record the version numbers of Number the AlliedWare Plus software on the switches. Switches might not form the stack if they have different versions.
  • Page 61 Series Installation Guide for Virtual Chassis Stacking The worksheet in Table 11 documents a stack of two x330-20GTX Switches and two x330-28GTX Switches that use the Multi-Gigabit copper ports for the stack trunk. The SFP+ ports are used for other functions, such as attaching high-speed devices to the network with fiber optic cables over long or short distances.
  • Page 62 Chapter 2: Virtual Chassis Stacking...

  • Page 63: Chapter 3: Beginning The Installation

    “Installation Options” on page 72  “Hardware Options” on page 74  “Installing the Switch on a Table” on page 76  Note For installation instructions for the x330-10GTX Switch, refer to the x330 Series Installation Guide for Standalone Switches.

  • Page 64: Reviewing Safety Precautions

    Chapter 3: Beginning the Installation Reviewing Safety Precautions Review the following safety precautions before beginning the installation procedure. Note Safety statements that have the symbol are translated into  multiple languages in the Translated Safety Statements document at www.alliedtelesis.com/en/documents/translated-safety- statements. Note Les consignes de sécurité...
  • Page 65 Series Installation Guide for Virtual Chassis Stacking Warning Power cord is used as a disconnection device. To de-energize equipment, disconnect the power cord.  Warning Class I Equipment. This equipment must be earthed. The power plug must be connected to a properly wired earth ground socket outlet.
  • Page 66 Use dedicated power circuits or power conditioners to supply reliable electrical power to the device.  Caution The chassis may be heavy and awkward to lift. Allied Telesis recommends that you get assistance when mounting the chassis in an equipment rack. ...
  • Page 67 Series Installation Guide for Virtual Chassis Stacking Caution The unit does not contain serviceable components. Please return damaged units for servicing.  Warning The temperature of an active SFP transceiver may exceed 40° C (158° F). Exercise caution when handling with unprotected hands.

  • Page 68: Choosing A Site For The Switch

    Chapter 3: Beginning the Installation Choosing a Site for the Switch Site and enclosure requirements are described in the following sections: “Site Requirements,” next  “Enclosure Requirements” on page 69  Site Observe these site requirements when planning the installation. Requirements The x330 Switches are fanless.

  • Page 69: Enclosure Requirements

    Series Installation Guide for Virtual Chassis Stacking Warning Switches should not be stacked on top of one another on a table or desktop because that could present a personal safety hazard if you need to move or replace switches.

  • Page 70: Unpacking The Switch

    Four bumper feet Four M3x4.5 screws for the bumper feet Figure 27. Accessory Items Included with x330-20GTX and x330-28GTX Switches Note Please retain the original packaging material in the event you need to return the unit to Allied Telesis.

  • Page 71: Figure 28: Equipment Rack Brackets Included With The X330-28Gtx Switch

    Two equipment rack brackets Six 4x8mm screws for attaching the brackets to the switch. Figure 28. Equipment Rack Brackets Included with the x330-28GTX Switch Note If any item is missing or damaged, contact your Allied Telesis sales representative for assistance.

  • Page 72: Installation Options

    Chapter 3: Beginning the Installation Installation Options The following sections illustrate the installation options for the switches. x330-20GTX Figure 29 illustrates the installation options for the x330-20GTX Switch. Switch Table or desktop with the bumper feet included with switch. Standard 19-inch equipment rack with the RKMT-J13 equipment rack brackets kit.

  • Page 73: X330-28Gtx Switch

    Series Installation Guide for Virtual Chassis Stacking x330-28GTX Figure 29 illustrates the installation options for the x330-28GTX Switch. Switch Table or desktop with the bumper feet included with switch. Standard 19-inch equipment rack with the equipment rack brackets included with the switch, or the RKMT-J13 equipment rack brackets kit.

  • Page 74: Hardware Options

    Chapter 3: Beginning the Installation Hardware Options The following hardware options for x330-20GTX and x330-28GTX Switches are sold separately. RKMT-J13 Installing the x330-20GTX Switch in a standard 19-inch equipment rack requires the RKMT-J13 brackets kit, shown in Figure 31. You can install Equipment Rack the switch with the front panel flush with or recessed 50mm (2 in.) behind Brackets Kit...

  • Page 75: Brkt-J24 Wall Brackets Kit

    Series Installation Guide for Virtual Chassis Stacking BRKT-J24 Wall Installing x330-20GTX and x330-28GTX Switches on a wall requires the BRKT-J24 wall brackets kit. Refer to Figure 32. For instructions, refer to Brackets Kit Chapter 6, “Installing x330-20GTX and x330-28GTX Switches on a Wall”...

  • Page 76: Installing The Switch On A Table

    Chapter 3: Beginning the Installation Installing the Switch on a Table You can operate the switch on a table or desktop. Refer to Figure 33. Figure 33. Switch Installation on a Table The following guidelines are in addition to those in “Choosing a Site for the Switch”...

  • Page 77: Figure 35: Attaching The Bumper Feet

    Series Installation Guide for Virtual Chassis Stacking The illustrations in the procedure show the x330-28GTX Switch. The procedure is the same for the x330-20GTX Switch. Note Bumper feet are required for tabletop installation. They promote cooling by allowing airflow beneath the switch.
  • Page 78 Chapter 3: Beginning the Installation...

  • Page 79: Chapter 4: Installing The X330-20Gtx Switch In An Equipment Rack

    Chapter 4 Installing the x330-20GTX Switch in an Equipment Rack This chapter contains installation instructions for the x330-20GTX Switch in a standard 19-inch equipment rack with the RKMT-J13 equipment rack brackets kit. Here are the sections in the chapter: “Introduction” on page 80 ...

  • Page 80: Introduction

    Chapter 4: Installing the x330-20GTX Switch in an Equipment Rack Introduction Installing the x330-20GTX Switch in a standard 19-inch equipment rack requires the RKMT-J13 equipment rack brackets kit. The kit allows you to install the switch with the front panel flush with or recessed 50mm (2 in.) behind the front of the equipment rack.

  • Page 81: Installing The X330-20Gtx Switch

    Series Installation Guide for Virtual Chassis Stacking Installing the x330-20GTX Switch This section contains the procedure for installing the x330-20GTX Switch in standard 19-inch equipment rack with the RKMT-J13 equipment rack brackets kit. Here are the required items: One RKMT-J13 equipment rack brackets kit.

  • Page 82: Figure 38: Attaching The Extenders To The Rkmt-J13 Brackets

    Chapter 4: Installing the x330-20GTX Switch in an Equipment Rack Figure 38. Attaching the Extenders to the RKMT-J13 Brackets 5. Attach the brackets to the sides of the switch with six of the 4x8mm screws included in the kit. Refer to Figure 39. Figure 39.

  • Page 83: Figure 40: Securing The X330-20Gtx Switch In A Standard 19-Inch Equipment Rack

    Series Installation Guide for Virtual Chassis Stacking 6. Have another person hold the switch at the selected location in the equipment rack while you secure it using four standard equipment rack screws (not provided). Refer to Figure 40. Figure 40. Securing the x330-20GTX Switch in a Standard 19-inch Equipment Rack 7.
  • Page 84 Chapter 4: Installing the x330-20GTX Switch in an Equipment Rack...

  • Page 85: Chapter 5: Installing The X330-28Gtx Switch In An Equipment Rack

    Chapter 5 Installing the x330-28GTX Switch in an Equipment Rack This chapter contains the installation instructions for the x330-28GTX Switch in a standard 19-inch equipment rack. Here are the sections: “Introduction” on page 86  “Installing the x330-28GTX Switch” on page 87 ...

  • Page 86: Introduction

    Chapter 5: Installing the x330-28GTX Switch in an Equipment Rack Introduction The x330-28GTX Switch comes with two brackets for installing the device in a standard 19-inch equipment rack. Refer to Figure 41. The brackets and screws are shown in Figure 28 on page 71. Figure 41.

  • Page 87: Installing The X330-28Gtx Switch

    Series Installation Guide for Virtual Chassis Stacking Installing the x330-28GTX Switch This section contains the procedure for installing the x330-28GTX Switch in a standard 19-inch equipment rack with the two equipment rack brackets included with the device. Here are the required items: Two equipment rack brackets (included with the switch).

  • Page 88: Figure 43: Securing The X330-28Gtx Switch In A Standard 19-Inch Equipment Rack

    Chapter 5: Installing the x330-28GTX Switch in an Equipment Rack Figure 43. Securing the x330-28GTX Switch in a Standard 19-inch Equipment Rack...
  • Page 89 Chapter 6 Installing x330-20GTX and x330-28GTX Switches on a Wall This chapter contains instructions for installing x330-20GTX and x330- 28GTX Switches on a wall. The chapter contains the following sections: “Installation Guidelines” on page 90  “Installing the Switch on a Wooden Wall” on page 92 ...

  • Page 90: Chapter 6: Installing X330-20Gtx And X330-28Gtx Switches On A Wall

    Chapter 6: Installing x330-20GTX and x330-28GTX Switches on a Wall Installation Guidelines Wall installations of x330-20GTX and x330-28GTX Switches require the AT-BRKT-J24 brackets kit. The contents of the AT-BRKT-J24 brackets kit are shown in Figure 32 on page 75. The kit is sold separately. You can install the switches with the front panels facing up, left or right.
  • Page 91 Series Installation Guide for Virtual Chassis Stacking You should not install the switches on a wall that has metal studs.  Metal studs may not be strong enough to safely support the device. You should not install the switch on sheetrock or similar material.

  • Page 92: Installing The Switch On A Wooden Wall

    This section contains the procedures for installing the switch on a wooden wall. Plywood Base for When installing the switch on a wall that has wooden studs, Allied Telesis recommends installing the device on a plywood base. (A plywood base is a Wall with not required for concrete walls.) Refer to Figure 46.

  • Page 93: Figure 47: Steps To Installing X330 Switches On A Plywood Base

    Series Installation Guide for Virtual Chassis Stacking The plywood base should be mounted on two studs in the wall. The recommended minimum dimensions of a plywood base for the x330- 20GTX and x330-28GTX Switches are listed here: Width: 55.9 centimeters (22 inches) ...

  • Page 94: Installing The Switch On A Plywood Base

    Switch on a and “Choosing a Site for the Switch” on page 68 before performing this Plywood Base procedure. Allied Telesis recommends a minimum of two people for this procedure. Warning The device is heavy. Always ask for assistance before moving or lifting it to avoid injuring yourself or damaging the equipment.

  • Page 95: Figure 49: Securing The X330 Switch To The Plywood Base

    Series Installation Guide for Virtual Chassis Stacking 3. Have another person hold the switch on the plywood base on the wall while you secure it with appropriate screws. Follow these guidelines when positioning the switch on the wall: You can install the switch with the front panel facing up, left, or ...

  • Page 96: Installing The Switch On A Concrete Wall

    Chapter 6: Installing x330-20GTX and x330-28GTX Switches on a Wall Installing the Switch on a Concrete Wall This section contains instructions for installing x330-20GTX and x330- 28GTX Switches on a concrete wall. Review “Installation Guidelines” on page 90 before performing the procedure: Warning The device is heavy.

  • Page 97: Figure 50: Marking The Locations Of The Brkt-J24 Bracket Holes On A Concrete Wall

    Prior to drilling, set the drill to hammer and rotation mode. The  modes break up the concrete and clean out the hole. Allied Telesis recommends cleaning out the holes with a brush or  compressed air. 6. Insert the anchors into the holes.

  • Page 98: Figure 51: Securing The X330 Switch On A Concrete Wall

    Chapter 6: Installing x330-20GTX and x330-28GTX Switches on a Wall Figure 51. Securing the x330 Switch on a Concrete Wall...

  • Page 99: Chapter 7: Displaying The Hardware Status And Alliedware Plus Version Number

    Chapter 7 Displaying the Hardware Status and AlliedWare Plus Version Number The procedures in this section explain how to perform local management sessions on the switches to verify their hardware status and display the version numbers of the AlliedWare Plus management software. Allied Telesis recommends performing these procedures on each switch individually before building the stack.

  • Page 100: Powering On The Switch

    Chapter 7: Displaying the Hardware Status and AlliedWare Plus Version Number Powering On the Switch The illustrations in this procedure show the North American power cord. Your power cord may look different. For AC power specifications, refer to “Power Specifications” on page 156. Warning Power cord is used as a disconnection device.

  • Page 101: Figure 54: Lowering The Power Cord Retaining Clip

    Series Installation Guide for Virtual Chassis Stacking 3. Lower the retaining clip to secure the power cord to the switch. Refer to Figure 54. Figure 54. Lowering the Power Cord Retaining Clip 4. Connect the power cord to an appropriate AC power outlet. Refer to Figure 55.

  • Page 102: Starting A Local Management Session

    Chapter 7: Displaying the Hardware Status and AlliedWare Plus Version Number Starting a Local Management Session The switch supports the following types of management: Local management: Local management is performed through the  Console port on the switch. The switch does not require an IP address for local management.

  • Page 103: Figure 58: Management Workstation, Vt-Kit3 Management Cable, And Switch

    Switch For instructions on how to start a remote management session, refer to the x330 Series Software Reference for AlliedWare Plus Operating System. To start a local management session using the management cable included with the switch, perform the following procedure: 1.

  • Page 104: Figure 60: User Exec Mode Prompt

    The User Exec mode is the first level in the command mode interface of the AlliedWare Plus management software. For instructions, refer to the Software Reference for x330 Series Switches, AlliedWare Plus Operating System. 8. Do one of the following: To view the hardware status of the switch and AlliedWare Plus ...

  • Page 105: Displaying The Hardware Status And Alliedware Plus Version Number

    58. 7. If you need to upgrade the software on the switch, refer to the Software Reference for x330 Series Switches, AlliedWare Operating System at www.alliedtelesis.com. 8. Power off the switch by disconnecting its AC power cord from the AC power source.
  • Page 106 Chapter 7: Displaying the Hardware Status and AlliedWare Plus Version Number Warning Power cord is used as a disconnection device. To de-energize equipment, disconnect the power cord.  E3 9. Repeat the procedures in this chapter on the remaining switches that will be in the stack.

  • Page 107: Chapter 8: Building Stacks With Sfp+ Ports S1 And S2

    Chapter 8 Building Stacks with SFP+ Ports S1 and This chapter contains the following procedures: “Introduction” on page 108  “Powering On the Switches Sequentially” on page 109  “Powering On the Switches Simultaneously” on page 111  “Verifying the Stack and Assigning Priority Numbers” on page 113 ...

  • Page 108: Introduction

    Chapter 8: Building Stacks with SFP+ Ports S1 and S2 Introduction This chapter explains how to build the stack with SFP+ ports S1 and S2 as the stack trunk. There are no configuration procedures. The stacking feature is enabled by default on the switches and the SFP+ ports are the default trunk ports.

  • Page 109: Powering On The Switches Sequentially

    Series Installation Guide for Virtual Chassis Stacking Powering On the Switches Sequentially This procedure explains how to control the assignment of the switch ID numbers by powering on the units one at a time during the first power-on sequence. The first switch is assigned ID number 1, the next unit ID number 2, and so on.
  • Page 110 Chapter 8: Building Stacks with SFP+ Ports S1 and S2 Warning Power cord is used as a disconnection device. To de-energize equipment, disconnect the power cord.  E3 3. Wait one minute for the switch to start the AlliedWare Plus management software.

  • Page 111: Powering On The Switches Simultaneously

    Series Installation Guide for Virtual Chassis Stacking Powering On the Switches Simultaneously You can let the switches assign their ID numbers automatically by powering them on simultaneously during the first power-on sequence. They perform the following steps to assign their ID numbers: 1.
  • Page 112 Chapter 8: Building Stacks with SFP+ Ports S1 and S2 2. Power on all the switches of the stack simultaneously. Refer to “Powering On the Switch” on page 100. Warning Power cord is used as a disconnection device. To de-energize equipment, disconnect the power cord.

  • Page 113: Verifying The Stack And Assigning Priority Numbers

    Series Installation Guide for Virtual Chassis Stacking Verifying the Stack and Assigning Priority Numbers To verify the stack and assign priority numbers, perform the following procedure: 1. Start a local management session on any switch in the stack. For instructions, refer to “Starting a Local Management Session”...

  • Page 114: Figure 63: Moving To The Global Configuration Mode With The Enable And Configure Terminal Commands

    Chapter 8: Building Stacks with SFP+ Ports S1 and S2 3. Do one of the following: To set the switch priority values, continue with the next step.  Setting the priority numbers can protect the configuration of the stack when adding new switches, as well as establish the order in which member switches become the master switch, if needed.

  • Page 115: Figure 64: Returning To The Privileged Exec Mode

    Series Installation Guide for Virtual Chassis Stacking 6. After setting the priority values, enter the EXIT command to return to the Privileged Exec mode. Refer to Figure 64. awplus(config)# exit awplus# Figure 64. Returning to the Privileged Exec Mode 7.
  • Page 116 Chapter 8: Building Stacks with SFP+ Ports S1 and S2...

  • Page 117: Chapter 9: Building Stacks With Multi-Gigabit Copper Ports

    Chapter 9 Building Stacks with Multi-Gigabit Copper Ports This chapter contains the following sections: “Introduction” on page 118  “Command Summary” on page 119  “Configuring the Master Switch” on page 123  “Configuring Member Switches” on page 131  “Powering On the Stack”...

  • Page 118: Introduction

    Chapter 9: Building Stacks with Multi-Gigabit Copper Ports Introduction As explained in “Stack Trunks” on page 44, the switches of a stack are connected by a physical link of two ports on each unit. There are two ways to build the trunk on x330 Switches. One way is with the SFP+ ports S1 and S2, the default trunk ports.

  • Page 119: Command Summary

    Series Installation Guide for Virtual Chassis Stacking Command Summary This section describes the AlliedWare Plus commands for configuring the Multi-Gigabit copper ports as the stack trunk on the master and member switches. For further instructions, refer to the Software Reference for x330 Switch, AlliedWare Plus Operating System.

  • Page 120: Stack Priority Command

    The lower the MAC address, the higher the priority. Allied Telesis recommends setting the priority numbers to match the switch ID numbers. For example, the switch with ID 1 should be assigned priority 1, switch with ID 2 should be assigned priority 2, and so on. This is not a requirement, but it can make it easier to manage the stack.

  • Page 121: Stack Renumber Command

    This example changes a switch’s current ID from 1, the default, to 2: awplus(config)# stack 1 renumber 2 Note Allied Telesis does not recommend changing the ID numbers of the switches after you begin configuring their parameter settings. Otherwise, the master switch might assign parameter settings to the wrong switches the next time you power on or reset the stack.
  • Page 122 Chapter 9: Building Stacks with Multi-Gigabit Copper Ports You have to add one provisioned member switch for each physical  member switch to be in the stack. For example, if a stack will have five member switches, then you have to add five provisioned switches to the master switch.

  • Page 123: Configuring The Master Switch

    Note The procedures require reseting the switch. Some network traffic will be lost if its ports are already connected to active devices. Allied Telesis recommends filling out the “VCStack Worksheet” on page 58 before building the stack. General Steps for There are two parts to designating the Multi-Gigabit copper ports on the master switch as the stack trunk.

  • Page 124: Configuring The Master Switch - Part I

    Chapter 9: Building Stacks with Multi-Gigabit Copper Ports Here are the main steps to Part II: 1. Add the member switches as provisioned units to the configuration of the master switch, with the SWITCH PROVISION command. 2. Remove the default SFP+ S1 and S2 ports from the stack trunk on the provisioned member switches with the NO STACKPORT command.
  • Page 125 Series Installation Guide for Virtual Chassis Stacking Table 12. Configuring the Master Switch for a Stack Trunk of Multi-Gigabit Copper Ports - Part I Step Description and Command Steps 4 and 5 remove the SFP+ S1 and S2 ports from the stack trunk with the NO STACKPORT command to redefine them as regular networking ports.

  • Page 126: Configuring The Master Switch - Part Ii

    Chapter 9: Building Stacks with Multi-Gigabit Copper Ports Table 12. Configuring the Master Switch for a Stack Trunk of Multi-Gigabit Copper Ports - Part I Step Description and Command The remaining steps save your changes. Enter the EXIT command to return to the Privileged Exec mode. awplus(config)# exit Enter the WRITE command to save your changes.
  • Page 127 Series Installation Guide for Virtual Chassis Stacking Table 13. Configuring the Master Switch for a Stack Trunk of Multi-Gigabit Copper Ports - Part II Step Description and Command Steps 3 and 4 remove the default SFP+ S1 and S2 ports from the trunk on the provisioned member switches that you added in step 2.

  • Page 128: Verifying The Master Switch

    Chapter 9: Building Stacks with Multi-Gigabit Copper Ports Table 13. Configuring the Master Switch for a Stack Trunk of Multi-Gigabit Copper Ports - Part II Step Description and Command Restart the switch with the REBOOT command. awplus# reboot reboot system? (y/n): Type “Y”...

  • Page 129: Figure 68: Show Running-Config Interface Command On The Master Switch

    Series Installation Guide for Virtual Chassis Stacking The Operational Status should be Standalone Unit. This indicates  that VCStack is enabled, but that the unit is operating as a stack of one switch. If the status is Stacking Hardware Disabled, VCStack is disabled.

  • Page 130: What To Do Next

    Chapter 9: Building Stacks with Multi-Gigabit Copper Ports What to Do Next After configuring the master switch, do the following: 1. Power off the switch by disconnecting its AC power cord from the AC power source. Refer to Figure 69. Figure 69.

  • Page 131: Configuring Member Switches

    Series Installation Guide for Virtual Chassis Stacking Configuring Member Switches This section contains the procedures for designating the Multi-Gigabit copper ports as the stack trunk for the member switches of a stack. Here are the procedures: “General Steps for Member Switches” on page 131 ...

  • Page 132: Configuring Member Switches - Part I

    Chapter 9: Building Stacks with Multi-Gigabit Copper Ports 5. Restart the switch with the REBOOT command. 6. Start a new local management session. 7. Verify your changes with the SHOW STACK and SHOW RUNNING- CONFIG INTERFACE commands. Configuring Perform Part I in Table 14 to configure a member switch. Member Switches - Part I Table 14.

  • Page 133: Configuring Member Switches - Part Ii

    Series Installation Guide for Virtual Chassis Stacking Table 14. Configuring Member Switches - Part I (Continued) Step Description and Command Restart the switch with the REBOOT command. awplus# reboot reboot system? (y/n): awplus# Type “Y” for yes. Wait one minute for the switch to start the AlliedWare Plus software.
  • Page 134 Chapter 9: Building Stacks with Multi-Gigabit Copper Ports Table 15. Configuring Member Switches - Part II (Continued) Step Description and Command Enter the port Interface modes of the SFP+ S1 and S2 ports on the member switch. When specifying the ID number of the switch in the PORT parameter, be sure to use the ID number you assigned it in Part I.

  • Page 135: Verifying Member Switches

    Series Installation Guide for Virtual Chassis Stacking Table 15. Configuring Member Switches - Part II (Continued) Step Description and Command Type “Y” for yes. Wait one minute for the switch to start the AlliedWare Plus software. Go to “Verifying Member Switches,” next.

  • Page 136: Figure 71: Show Running-Config Interface Command For Member Switches

    Chapter 9: Building Stacks with Multi-Gigabit Copper Ports Note The default setting for VCStack is enabled. If VCStack is disabled, perform the VCSTACK ENABLE command in the Global Configuration mode to enable it. 5. Enter the SHOW RUNNING-CONFIG INTERFACE command to display the port configuration on the member switch.

  • Page 137: What To Do Next For Member Switches

    Series Installation Guide for Virtual Chassis Stacking What to Do Next After configuring a member switch, do the following: for Member 1. Power off the member switch by disconnecting its AC power cord from Switches the AC power source. Refer to Figure 69 on page 130.

  • Page 138: Powering On The Stack

    Chapter 9: Building Stacks with Multi-Gigabit Copper Ports Powering On the Stack After identifying the Multi-Gigabit copper ports on the master and member switches as the stack trunk and assigning them ID numbers, you are ready to cable the trunk ports and power on the stack. You can monitor the power-on sequence by connecting a terminal or computer with a terminal emulator program to the Console port on the master switch.

  • Page 139: Chapter 10: Cabling Copper And Sfp+ Ports

    Chapter 10 Cabling Copper and SFP+ Ports This chapter contains the following sections: “Cabling Copper Ports” on page 140  “Guidelines to Handling SFP and SFP+ Transceivers” on page 141  “Installing 1Gbps SFP and 10Gbps SFP+ Transceivers” on page 142 ...

  • Page 140: Cabling Copper Ports

    Chapter 10: Cabling Copper and SFP+ Ports Cabling Copper Ports Here are the guidelines to cabling the copper ports: The cable specifications are in “10/100/1000Mbps Copper Ports”  on page 25 and “1/2.5/5/10Gbps Multi-Gigabit Copper Ports” on page 27. The connectors on the cables should fit snugly into the ports, and ...

  • Page 141: Guidelines To Handling Sfp And Sfp+ Transceivers

    Series Installation Guide for Virtual Chassis Stacking Guidelines to Handling SFP and SFP+ Transceivers Please review the following guidelines before installing SFP and SFP+ transceivers in the switches: Transceivers are hot-swappable. You can install them while the  switch is powered on.

  • Page 142: Installing 1Gbps Sfp And 10Gbps Sfp+ Transceivers

    1. Select an SFP+ port for the transceiver. 2. Remove the transceiver from its shipping container and store the packaging material in a safe location. 3. Position the transceiver with the Allied Telesis label facing up. Refer to Figure 72. Figure 72. Installing an SFP+ Transceiver 4.

  • Page 143: Figure 73: Removing The Dust Cover From An Sfp+ Transceiver

    Series Installation Guide for Virtual Chassis Stacking Figure 73. Removing the Dust Cover from an SFP+ Transceiver 6. Verify that the transceiver handle is in the upright position. Refer to Figure 74. SFP+ Handle Figure 74. Positioning the SFP+ Handle in the Upright Position 7.

  • Page 144: Figure 75: Connecting A Fiber Optic Cable To An Sfp Or Sfp+ Transceiver

    Chapter 10: Cabling Copper and SFP+ Ports Figure 75. Connecting a Fiber Optic Cable to an SFP or SFP+ Transceiver 8. Repeat this procedure to install a second transceiver.

  • Page 145: Installing At-Sp10Tw Direct Connect Twinax Cables In Sfp+ Ports

    1. Select an SFP+ port for the transceiver. 2. Remove the transceiver from its shipping container and store the packaging material in a safe location. 3. Position the transceiver with the Allied Telesis label facing up. Refer to Figure 76. Figure 76. Installing an AT-SP10TW Cable 4.
  • Page 146 Chapter 10: Cabling Copper and SFP+ Ports 6. Repeat this procedure to install a second transceiver. Note To remove the connector and cable from the port, gently push on the connector, pull on the release tab, and slide the connector from the switch.

  • Page 147: Chapter 11: Troubleshooting

    This chapter contains suggestions on troubleshooting problems with the switch. Note For further assistance, contact Allied Telesis Technical Support at www.alliedtelesis.com/us/en/services-support. Problem 1: The ports are connected to network devices but the port LEDs and Switch ID LED are off.
  • Page 148 Chapter 11: Troubleshooting Verify that you are using the appropriate category of cable. Cable  requirements are listed in Table 1 on page 25 and Table 2 on page 27. Verify that the port is connected to the correct cable. ...
  • Page 149 Series Installation Guide for Virtual Chassis Stacking Problem 4: The switch functions intermittently. Solutions: Check the system hardware status through the AlliedWare Plus management software: Use the SHOW SYSTEM ENVIRONMENT command in the  Privileged Exec mode to verify that the input voltage from the power source to the switch is stable and within the approved operating range.
  • Page 150 Chapter 11: Troubleshooting...

  • Page 151: Appendix A: Technical Specifications

    Appendix A Technical Specifications This appendix contains the following sections: ”Physical Specifications” on page 152  ”Environmental Specifications” on page 155  ”Power Specifications” on page 156  ”Certifications” on page 157  ”RJ-45 Copper Port Pinouts” on page 159 ...

  • Page 152: Physical Specifications

    Appendix A: Technical Specifications Physical Specifications Dimensions Table 16, Figure 77, and Figure 78 on page 153 list the dimensions of the switches. Table 16. Product Dimensions (H x W x D) x330-10GTX 3.8 cm x 26.3 cm x 17.9 cm (1.5 in.

  • Page 153: Figure 78: Dimensions Of X330-20Gtx And X330-28Gtx Switches

    Series Installation Guide for Virtual Chassis Stacking Width 34.1 cm (13.4 in.) Height 4.4 cm (1.7 in.) Depth 23.1 cm (9.1 in.) Figure 78. Dimensions of x330-20GTX and x330-28GTX Switches Measurements in Figure 79 are in millimeters (mm). Figure 79. Bracket Screw Holes on x330-20GTX and x330-28GTX...
  • Page 154 Appendix A: Technical Specifications Weights Table 17 lists the switch weights. Table 17. Switch Weights x330-10GTX 1.6 kg (3.53 lb.) x330-20GTX 3.0 kg (6.61 lb.) x330-28GTX 3.1 kg (6.84 lb.) Ventilation Table 18 lists the ventilation requirements. Table 18. Ventilation Requirements Recommended Minimum 10 cm (4.0 in) Ventilation on All Sides...

  • Page 155: Environmental Specifications

    Series Installation Guide for Virtual Chassis Stacking Environmental Specifications Table 19 lists the environmental specifications of the switches. Table 19. Environmental Specifications Operating Temperature Range 0° C to 50° C (32° F to 122° F) without SFP+ transceivers Operating Temperature Range with 0°...

  • Page 156: Power Specifications

    Appendix A: Technical Specifications Power Specifications This section contains the maximum power consumption values, input voltages, and heat dissipation values. Maximum Power Consumptions Table 20 lists the maximum power consumptions of the switch. Table 20. Maximum Power Consumption x330-10GTX 21 watts x330-20GTX 28 watts x330-28GTX...

  • Page 157: Certifications

    Series Installation Guide for Virtual Chassis Stacking Certifications Table 23 lists the product certificates. Table 23. Product Certifications Additional Certificates CISPR Class A (Comité International Spécial des Perturbations Radioélectriques) Compliant with European and China RoHS standards Australia/New Zealand (Regulatory Compliance Mark)
  • Page 158 Appendix A: Technical Specifications Table 23. Product Certifications (Continued) Mexico (Normas Oficiales Mexicanas) North America FCC Class A Laser Safety: EN 60825-1 Energy Star United Kingdom UKCA (UK Conformity Assessment)

  • Page 159: Copper Port Pinouts

    Series Installation Guide for Virtual Chassis Stacking RJ-45 Copper Port Pinouts Figure 80 illustrates the pin layout of the RJ-copper ports. Figure 80. Pin Layout for the RJ-45 Copper Ports (Front View) Table 24 lists the pin signals for the copper ports.

  • Page 160: Style Serial Console Port Pinouts

    Appendix A: Technical Specifications RJ-45 Style Serial Console Port Pinouts Table 25 lists the pin signals of the RJ-45 style serial Console port. Table 25. RJ-45 Style Serial Console Port Pin Signals Signal Unused Unused Transmit Data Signal Ground Signal Ground Receive Data Unused Unused...
