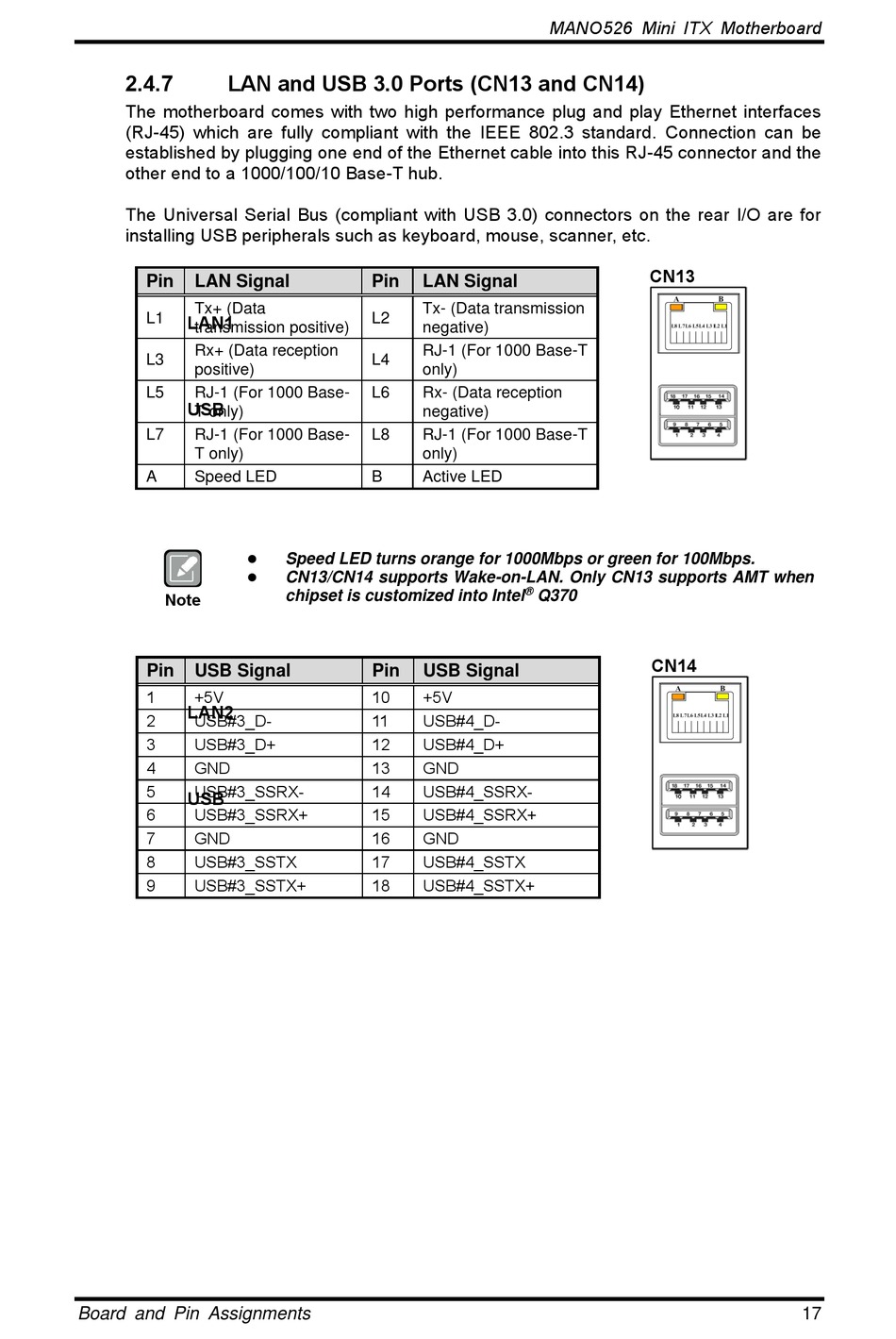

LAN and USB 3.0 Ports (CN13 and CN14)

The motherboard comes with two high performance plug and play Ethernet interfaces
(RJ-45) which are fully compliant with the IEEE 802.3 standard. Connection can be
established by plugging one end of the Ethernet cable into this RJ-45 connector and the
other end to a 1000/100/10 Base-T hub.
The Universal Serial Bus (compliant with USB 3.0) connectors on the rear I/O are for
installing USB peripherals such as keyboard, mouse, scanner, etc.
Pin LAN Signal
Tx+ (Data
L1
LAN1
transmission positive)
Rx+ (Data reception
L3
positive)
L5 RJ-1 (For 1000 Base-
USB
T only)
L7 RJ-1 (For 1000 Base-
T only)
A Speed LED
⚫
⚫
Note
Pin USB Signal
1 +5V
LAN2
2 USB#3_D-
3 USB#3_D+
4 GND
5 USB#3_SSRX-
USB
6 USB#3_SSRX+
7 GND
8 USB#3_SSTX
9 USB#3_SSTX+
Board and Pin Assignments
Pin LAN Signal
Tx- (Data transmission
L2
negative)
RJ-1 (For 1000 Base-T
L4
only)
L6 Rx- (Data reception
negative)
L8 RJ-1 (For 1000 Base-T
only)
B Active LED
Speed LED turns orange for 1000Mbps or green for 100Mbps.
CN13/CN14 supports Wake-on-LAN. Only CN13 supports AMT when
chipset is customized into Intel
Pin USB Signal
10 +5V
11 USB#4_D-
12 USB#4_D+
13 GND
14 USB#4_SSRX-
15 USB#4_SSRX+
16 GND
17 USB#4_SSTX
18 USB#4_SSTX+
