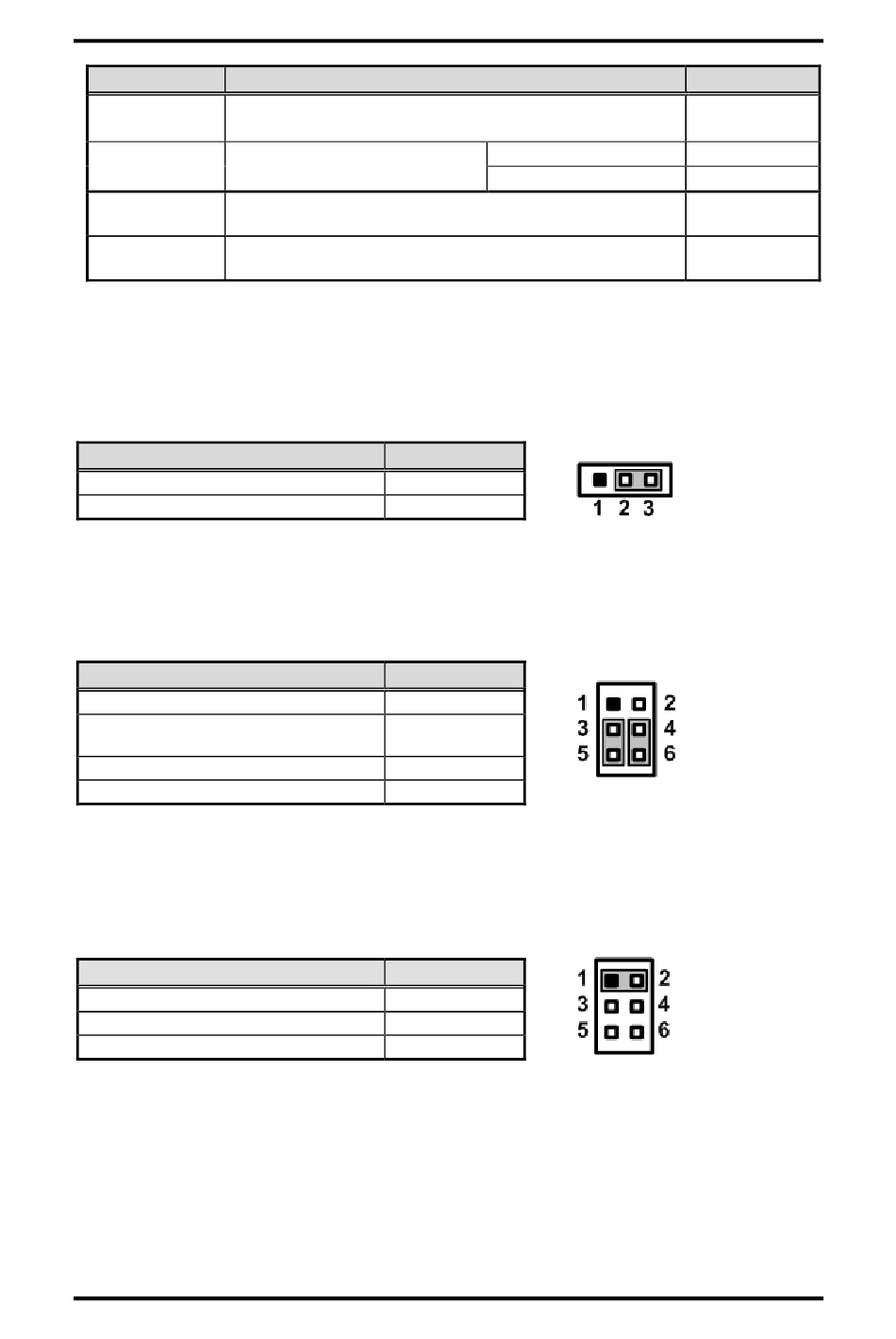

Jumper Description
Auto Power On
JP1
Default: Disable
COM2 Data/Power Select
JP4
Default: RS-232 Data
EDP VDD Select
JP5
Default: +3.3V
Clear CMOS
SW1
Default: Normal Operation
2.3.1

Auto Power On (JP1)

If JP1 is enabled for power input, the system will be automatically power on without
pressing soft power button. If JP1 is disabled for power input, it is necessary to manually
press soft power button to power on the system.
Function
Enable auto power on
Disable auto power on (Default)
2.3.2

COM2 Data/Power Select (JP4)

The COM2 port has +5V level power capability on DCD# and +12V level on RI# by setting
JP4.
Function
Power: Set COM2 pin 1 to +5V level
Data: Set COM2 pin 1 to DCD#
(Default)
Power: Set COM2 pin 9 to +12V level
Data: Set COM2 pin 9 to RI# (Default)
2.3.3

EDP VDD Select (JP5)

The motherboard supports voltage selection for embedded DisplayPort (eDP). Use this
jumper to set up VDD power of the eDP connector. To prevent hardware damage, before
connecting please make sure that the input voltage of display panel is correct.
Function
+3.3V (Default)
+5V
+12V
Board and Pin Assignments
MANO526 Mini ITX Motherboard
COM2 Pin 1: DCD#
COM2 Pin 9: RI#
Setting
1-2 close
2-3 close
Setting
1-3 close
3-5 close
2-4 close
4-6 close
Setting
1-2 close
3-4 close
5-6 close
Setting
2-3 Close
3-5 Close
4-6 Close
1-2 Close
Release
9
