2. The screen in Figure 20 then appears. Choose Install the
software automatically (Recommended) and click Next >.

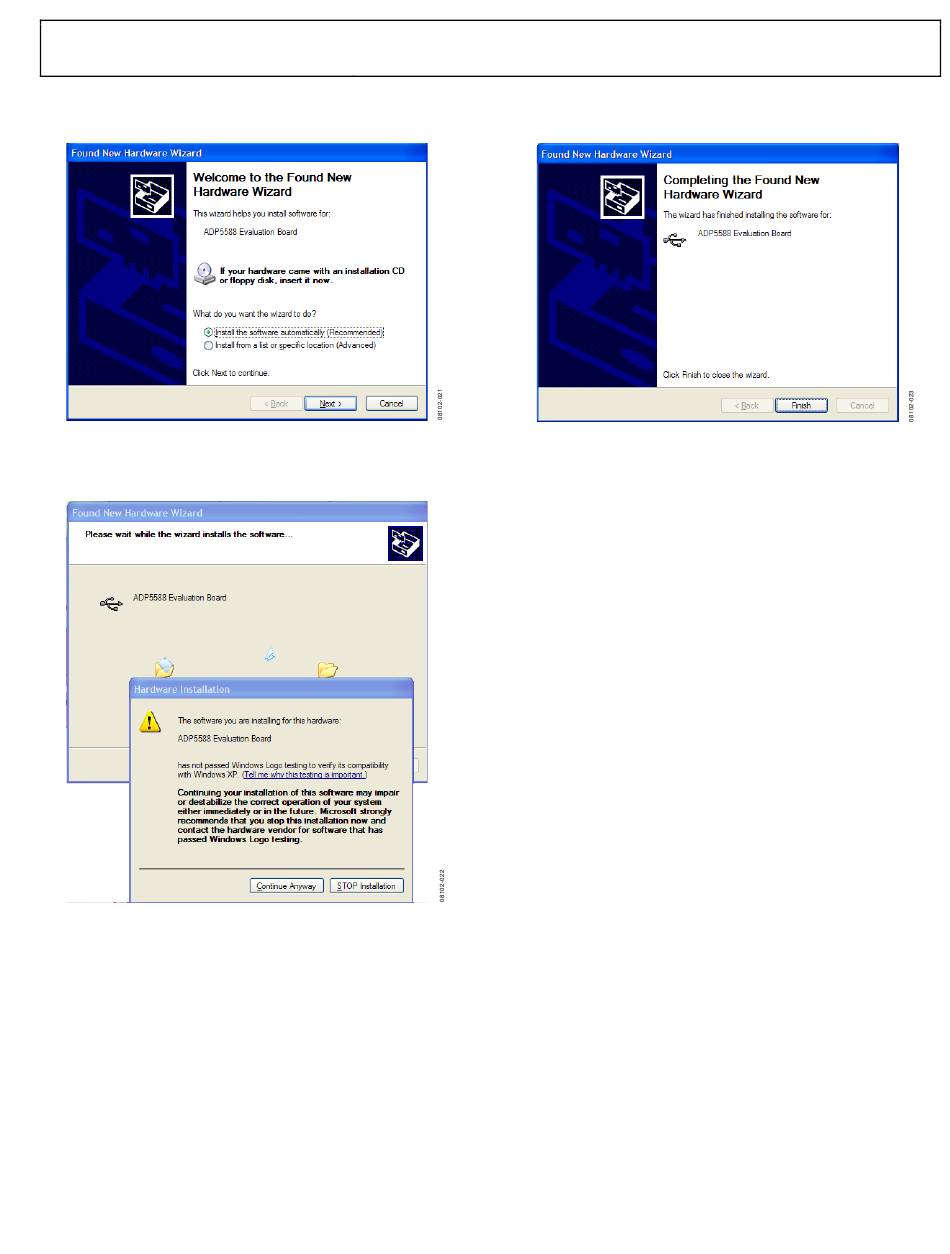

Figure 20. Software Location Installation
3. When the screen in Figure 21 appears, click Continue
Anyway; this completes the USB driver installation.
Figure 21. Windows Compatibility Warning
4. When the screen in Figure 22 appears, click Finish to
complete the USB driver installation.
Figure 22. USB Driver Installation Completion

USING THE SOFTWARE

Before running the software, make sure that the ADP5588
board assembly is plugged into the USB port. When it is
plugged in properly, the two supply LEDs (D19 and D21)
light up. Then click START>All Programs>Analog Devices>
ADP5588Evaluation Software.
The software then detects the presence of the board USB
interface and prints the message Firmware Downloaded okay
at the bottom left side of the screen (see Figure 23). If USB
communication is not established, a Firmware not Downloaded
USB Communication Error prints instead. If the latter message
appears, unplug the board and try it again.

THE APPLICATION TABS

The ADP5588 software application has four tabs: the Keypad
application tab, the GPIOs configuration tab, the Light-Sensors
configuration tab, and the History tab. The History tab allows
you to record a sequence of commands that can be converted into
scripts later on. This is useful during software development.
Register Programming
To program a particular register, click the pertinent SIM LED or
tab on the left side of the menu and select the appropriate value.
When finished, click Program 0xXX to program the register
(XX represents the register address to be programmed). When
programmed, the value in the register can be read by clicking
Read 0xXX (XX represents the register address to be read).
The interrupt status registers, keypad status registers, and input
values can be read the same way.
