EVAL-ADP5588
6.
Select I accept the License Agreement(s) and click Next >>
to continue with the installation (see Figure 15).

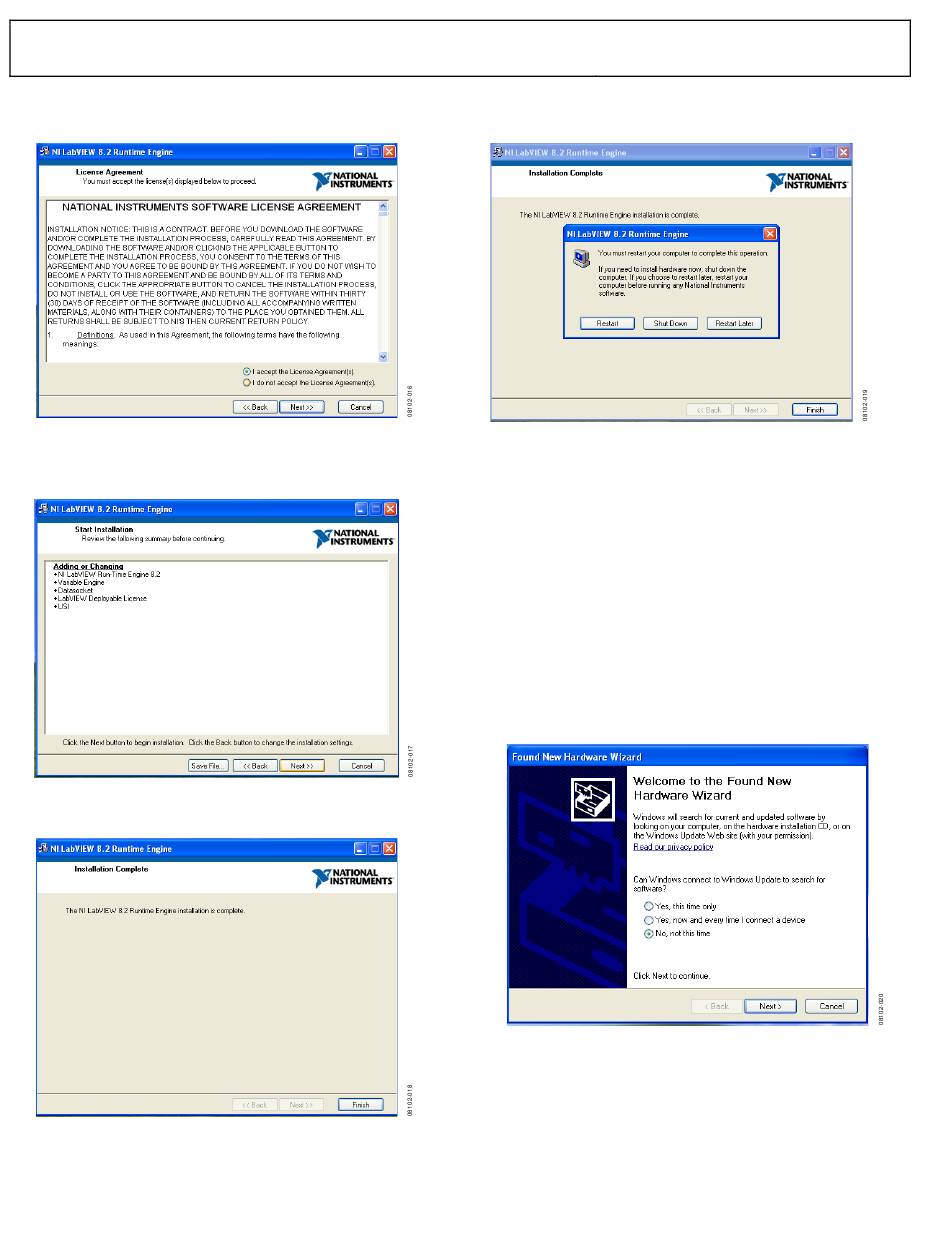

Figure 15. National Instruments Software License Agreement
7.
When the screen in Figure 16 appears, click Next >> to
continue.
Figure 16. Start Installation (Summary)
8.
When the installation is complete, click Finish (see Figure 17).
Figure 17. Installation Complete
9.
When the screen in Figure 18 appears, click Restart. The
computer must be restarted to complete installation.
USB DRIVER INSTALLATION
When the GUI and LabVIEW Runtime Engine are installed,
assemble the daughterboard onto the motherboard and configure
the jumper settings as needed. USB drivers are installed the first
time the board assembly is plugged into the USB port after software
installation. When assembly is complete, do the following to
install the USB drivers.
1.
Plug the ADP5588 board into the computer using the
provided USB cable. When the system recognizes the
board, the screen shown in Figure 19 appears.
Choose No, not this time and click Next > to install the
USB driver.
Rev. 0 | Page 6 of 20
Figure 18. Restart Screen
Figure 19. Found New Hardware Wizard
