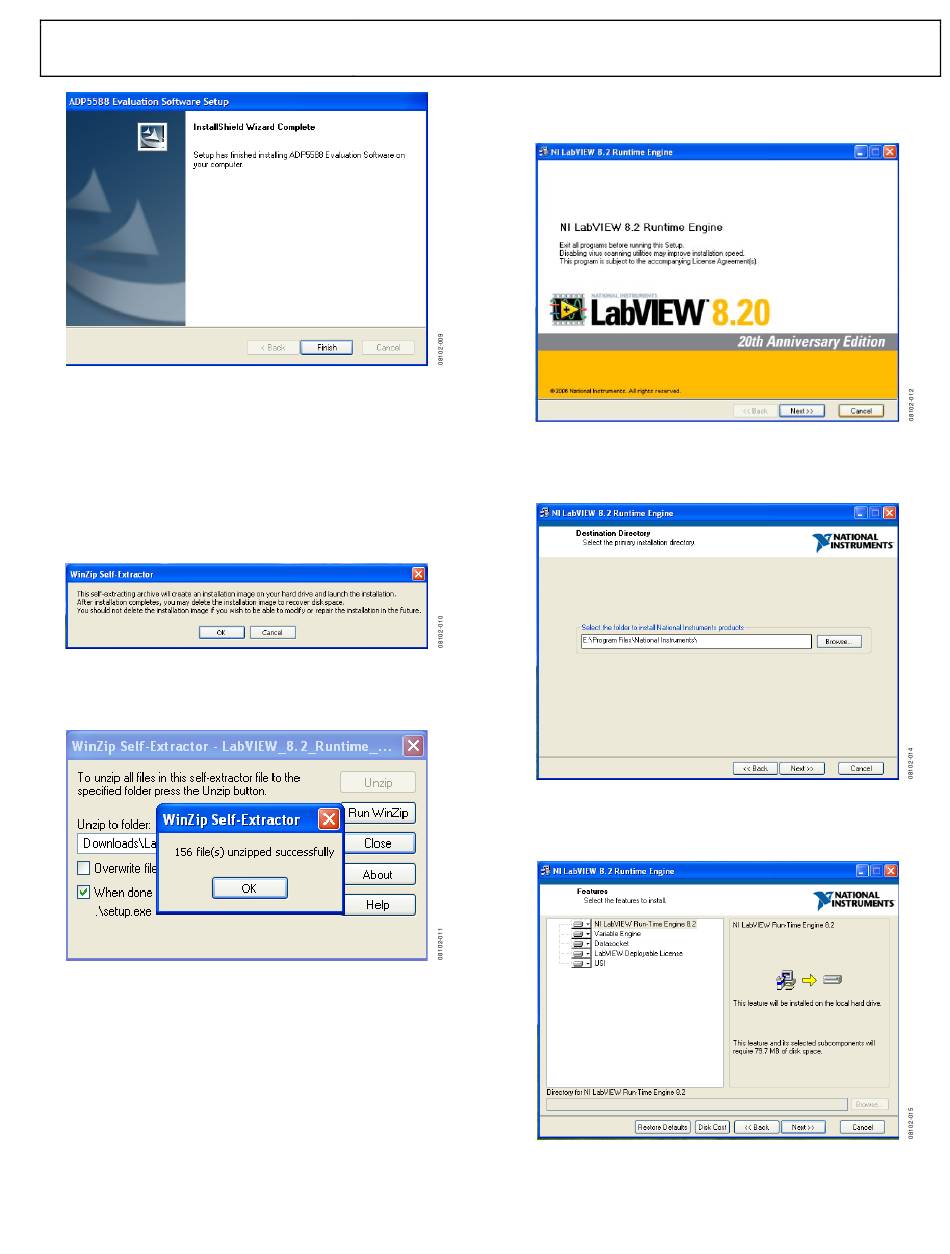

Figure 9. InstallShield Wizard Complete
LABVIEW RUNTIME ENGINE INSTALLATION
The LabVIEW Runtime Engine comes as a self-extracting
archive and must be unzipped before installation. Version 8.2
or higher is required. To begin installation, do the following:
1.
Double click on the LabVIEW_Runtime_Engine.exe file.
When the dialog box in Figure 10 appears, click OK to
continue.
Figure 10. LabVIEW WinZip Self-Extractor
2.
When the screen in Figure 11 appears, click Unzip to
extract the files.
Figure 11. LabVIEW Unzipped Files
3.
When the screen in Figure 12 appears, click Next>> to
start the NI LabVIEW 8.2 Runtime Engine installation.
Figure 12. NI LabVIEW 8.2 Runtime Engine Installation
4.
When the screen in Figure 13 appears, click Next >> to
accept the default directory for the installation.
5.
When the screen in Figure 14 appears, click Next >> to
continue.
Rev. 0 | Page 5 of 20
EVAL-ADP5588
Figure 13. Destination Directory
Figure 14. Features Selection
