Connectors

This section describes the connector functionality and provides informa-
tion about mating connectors. The locations of the connectors are shown
in Figure 2-4.

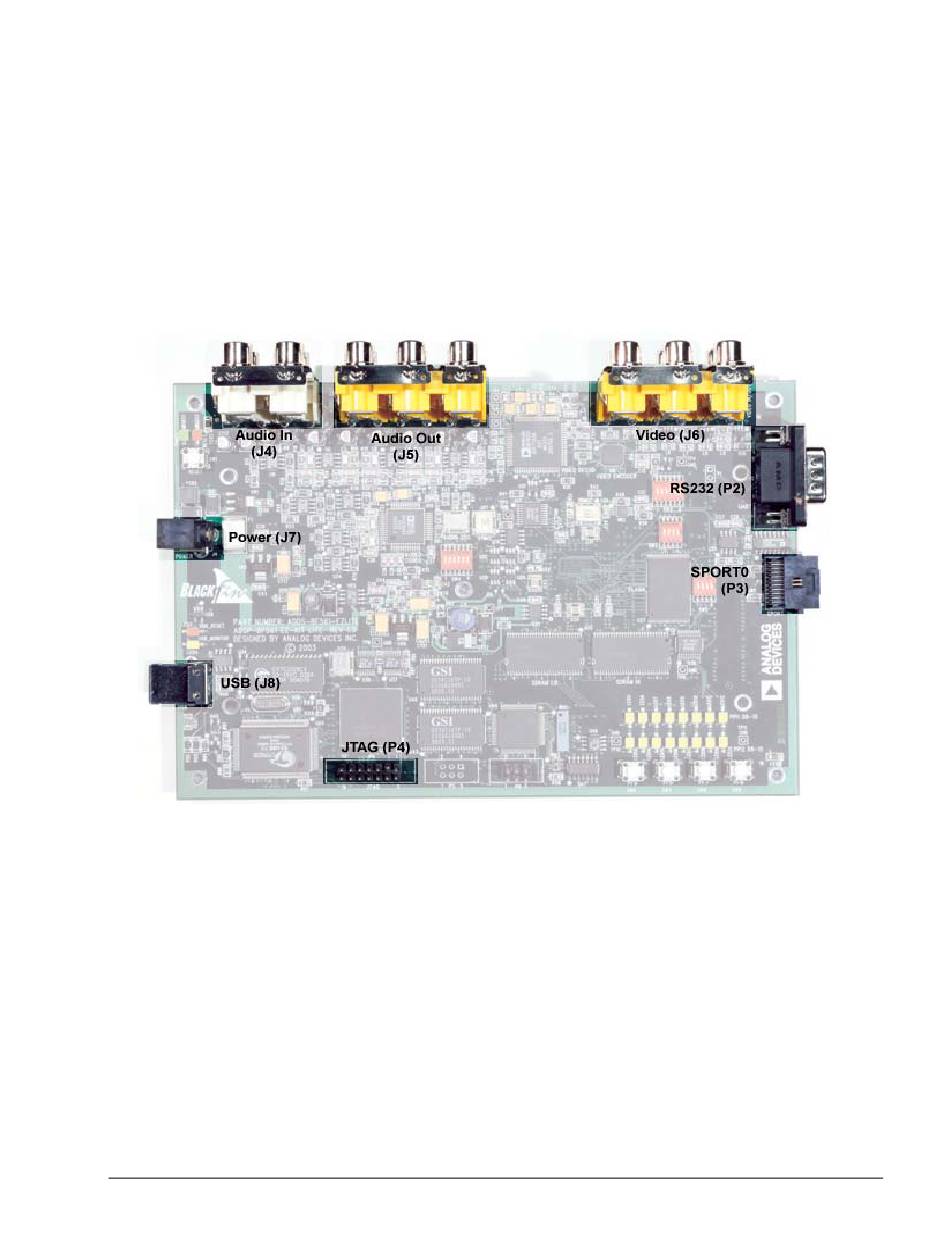

Figure 2-4. Connector Locations
Expansion Interface (J3–1)
Three board-to-board connector footprints provide signals for most of the
processor's peripheral interfaces. The connectors are located at the bottom
of the board. For more information about the expansion interface, see
on page 2-8. For the availability and pricing of the
tors, contact Samtec.
ADSP-BF561 EZ-KIT Lite Evaluation System Manual
EZ-KIT Lite Hardware Reference
,
J1
, and connec-
J2 J3
2-17
