LEDs and Push Buttons
LEDs and Push Buttons
This section describes the functionality of the LEDs and push buttons.
Figure 2-3
shows the locations of the LEDs and push buttons on the
board.

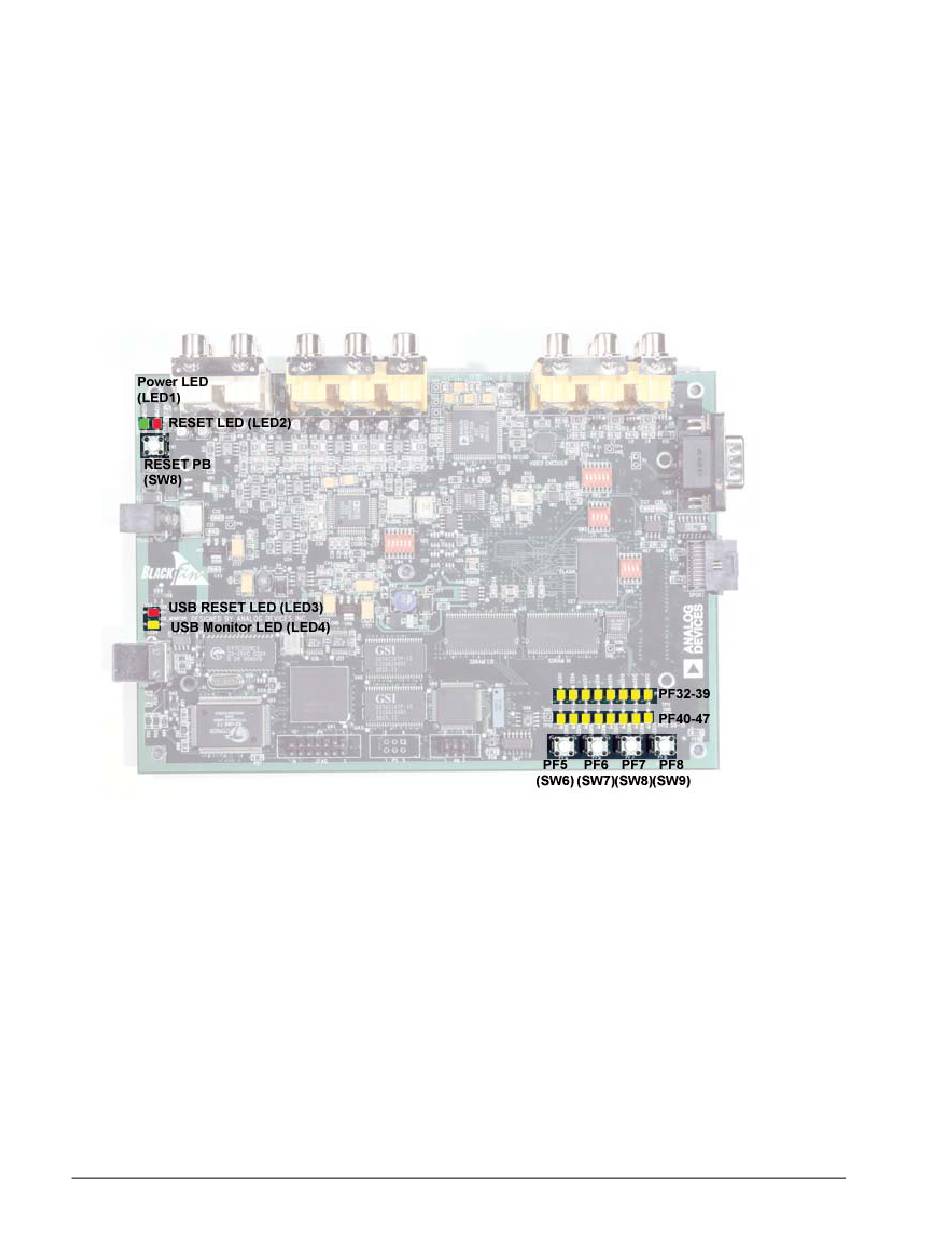

Figure 2-3. LED and Push Button Locations
Reset Push Button (SW1)
The
push button resets all of the ICs on the board. One exception is
RESET
the USB interface chip (
button is pressed after the USB cable has been plugged in and communi-
cation with the PC has been initialized correctly. Once communication is
initialized, the only way to reset the USB is by powering down the board.
2-14
). The chip is not being reset when the push
U34
ADSP-BF561 EZ-KIT Lite Evaluation System Manual
