Input Signal - FlowLine DataView LI55 Series Quick Start Manual

DataView™ LI55 Level Controller
|
Current Input Connection

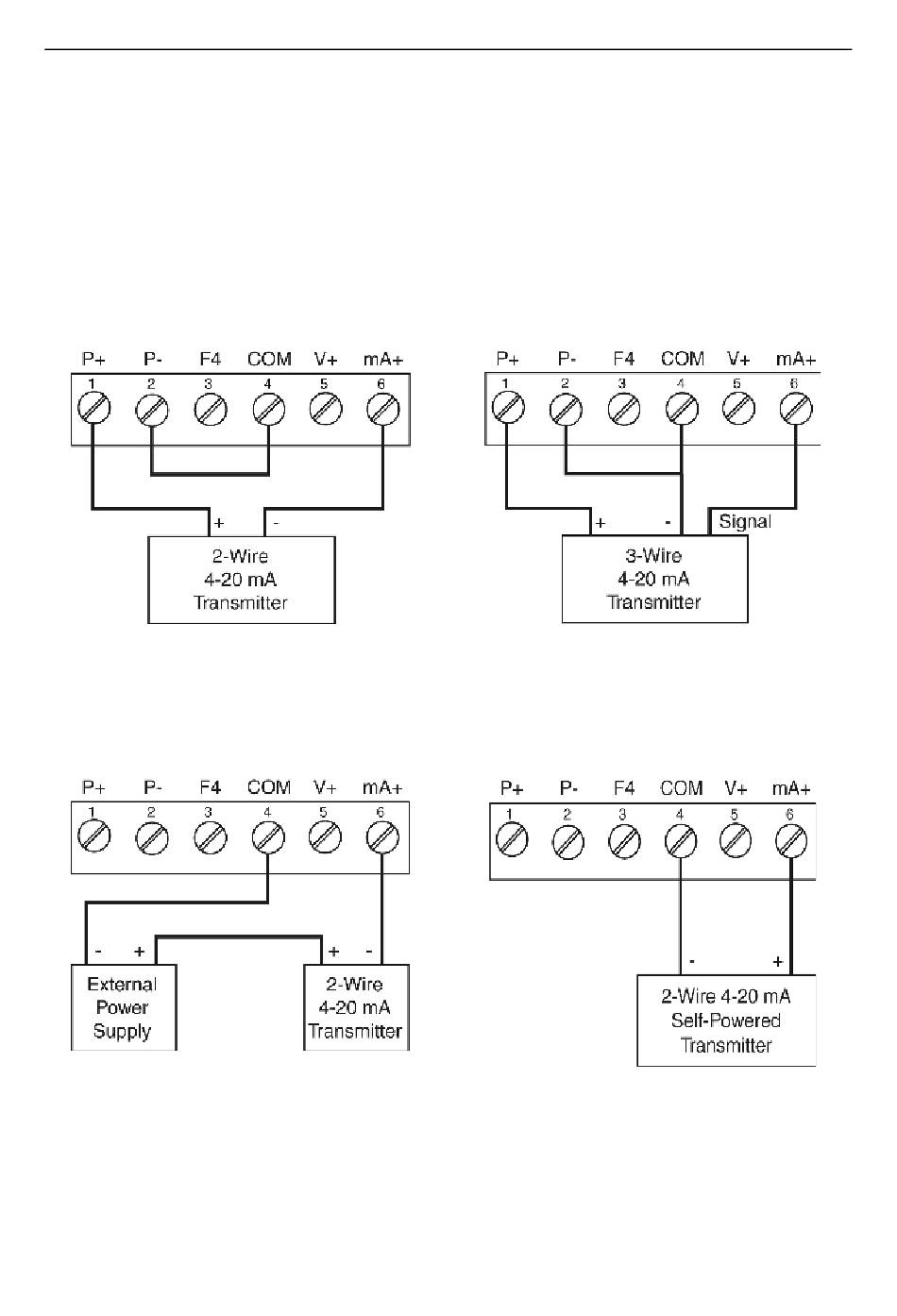

Below are examples of typical wiring connections for current sensor inputs. There
are no switches or jumpers to set for current inputs. Note: The input is protected
against overload by a resettable fuse. The display may or may not show a fault
condition depending on the nature of the overload. The fuse limits the current
to a safe level when it detects a fault condition, and automatically resets itself
when the fault condition is removed.

INPUT SIGNAL

2-Wire
Sensor Connection
INPUT SIGNAL
Externally-Powered
2-Wire Sensor Connection
QS301033 Rev C1
INPUT SIGNAL
3-Wire
Sensor Connection
INPUT SIGNAL
Self-Powered
2-Wire Sensor Connection
Quick Start
9
