DataView™ LI55 Level Controller
|
12 OR 24 VDC SUPPLY VOLTAGE
If you purchased a 12/24 VDC model controller, it was configured for 24 VDC
supply as the factory default. Note: Do not exceed the controller supply voltage
rating. If you wish to reconfigure the controller for 12 VDC supply, follow the
below steps.
1. Remove all connectors.
2. Unscrew the back cover.
3. Slide the back cover about 1 inch to expose the board.

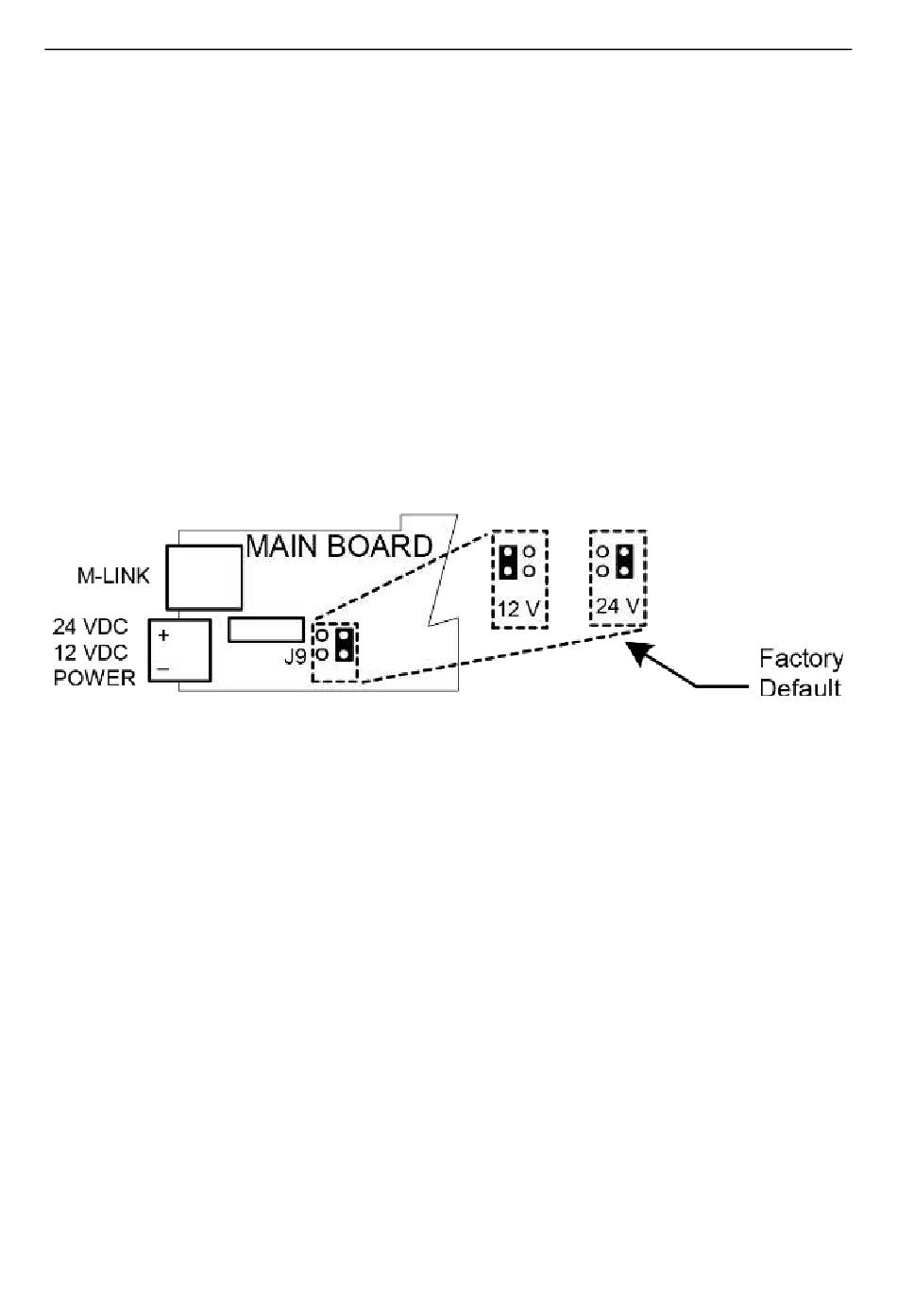

4. Configure the J9 jumper, located behind the power connector for the
desired voltage as shown below.
Note: Flowline transmitters require 24 VDC.
QS301033 Rev C1
J9 Configuration
