WIRING DATAVIEW™
All wiring connections are made by attaching wires onto removable screw
terminal connectors located at the rear of DataView™. Note: Copper wire with
60°C or 60/75°C insulation should be used for all line voltage connections, while
observing all safety regulations. Electrical wiring should be performed in
accordance with all applicable national, state, and local codes to prevent
damage to the controller and ensure personnel safety.

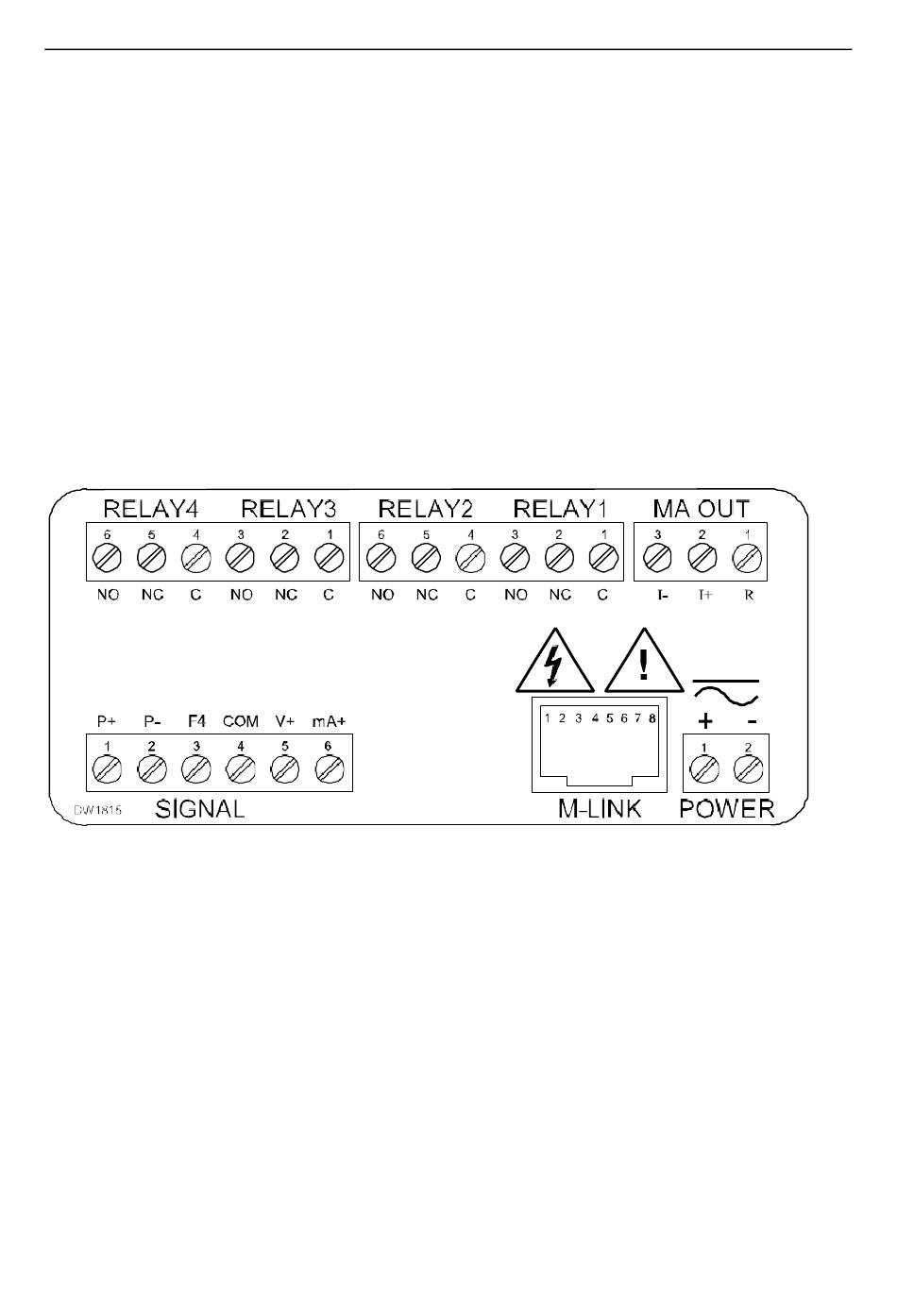

The connector label shows the function of each of the connections, such as
POWER, RELAY and SIGNAL. The RJ-45 M-LINK connection is intended for
Flowline expansion modules, cables and meters only. Any other use of the RJ-45
connection may damage DataView™ and connected equipment. The different
types of connections are explained on the following pages.
