DataView™ LI55 Level Controller
|
TRANSMITTER SUPPLY VOLTAGE (P+, P-)
DataView™ is factory configured to provide 24 VDC power to the sensor. If your
sensor requires 5 or 10 VDC excitation, follow the below steps to reconfigure the
J4 internal jumper accordingly.
1. Remove all connectors.
2. Unscrew the back cover.
3. Slide the back cover about 1 inch to expose the board.

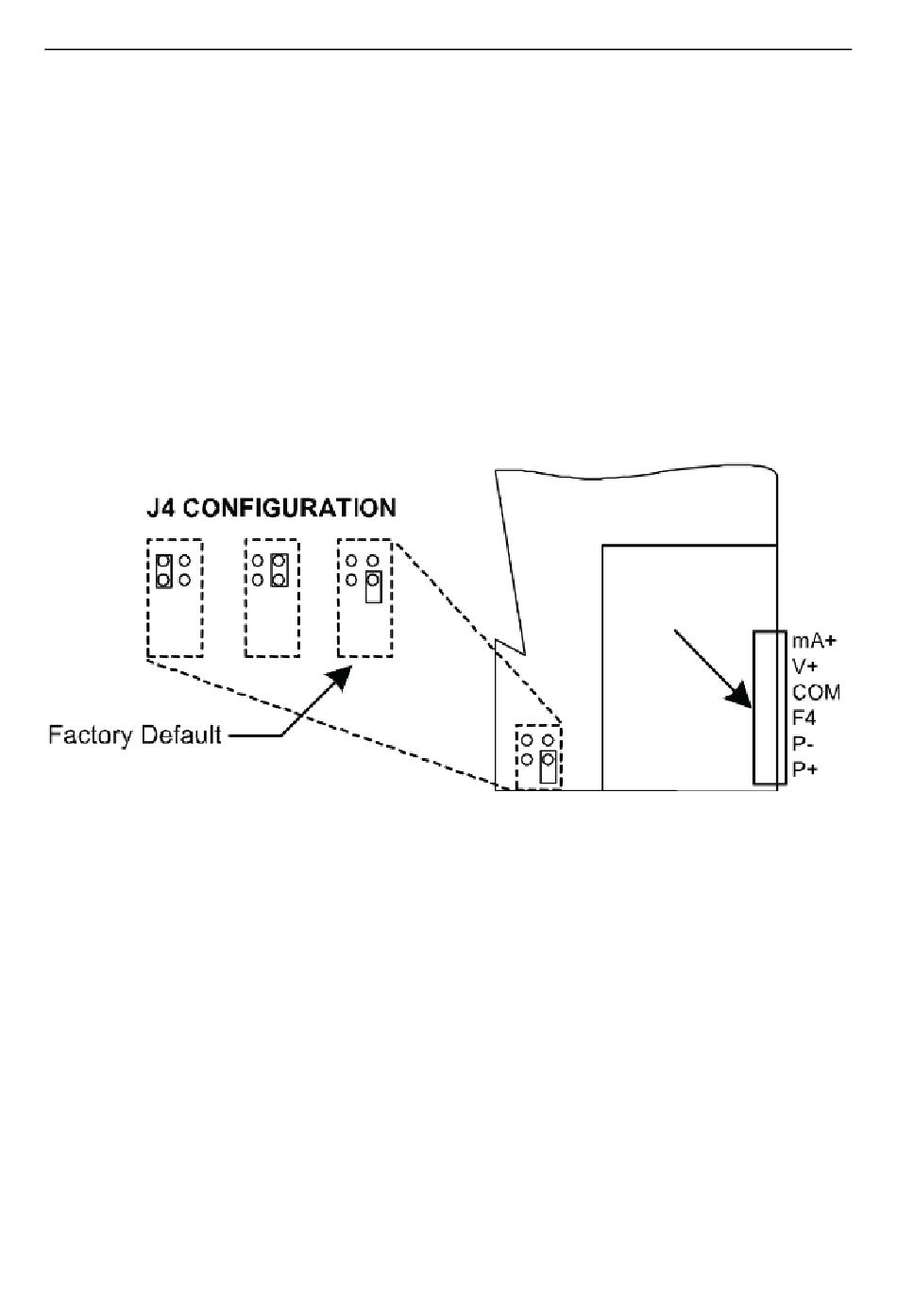

4. Configure the J4 jumper, located behind the input signal connector for the
desired voltage as shown below.
Note: Flowline transmitters require 24 VDC.
