DataView™ LI55 Level Controller
|
Set SCALE (SCALE)

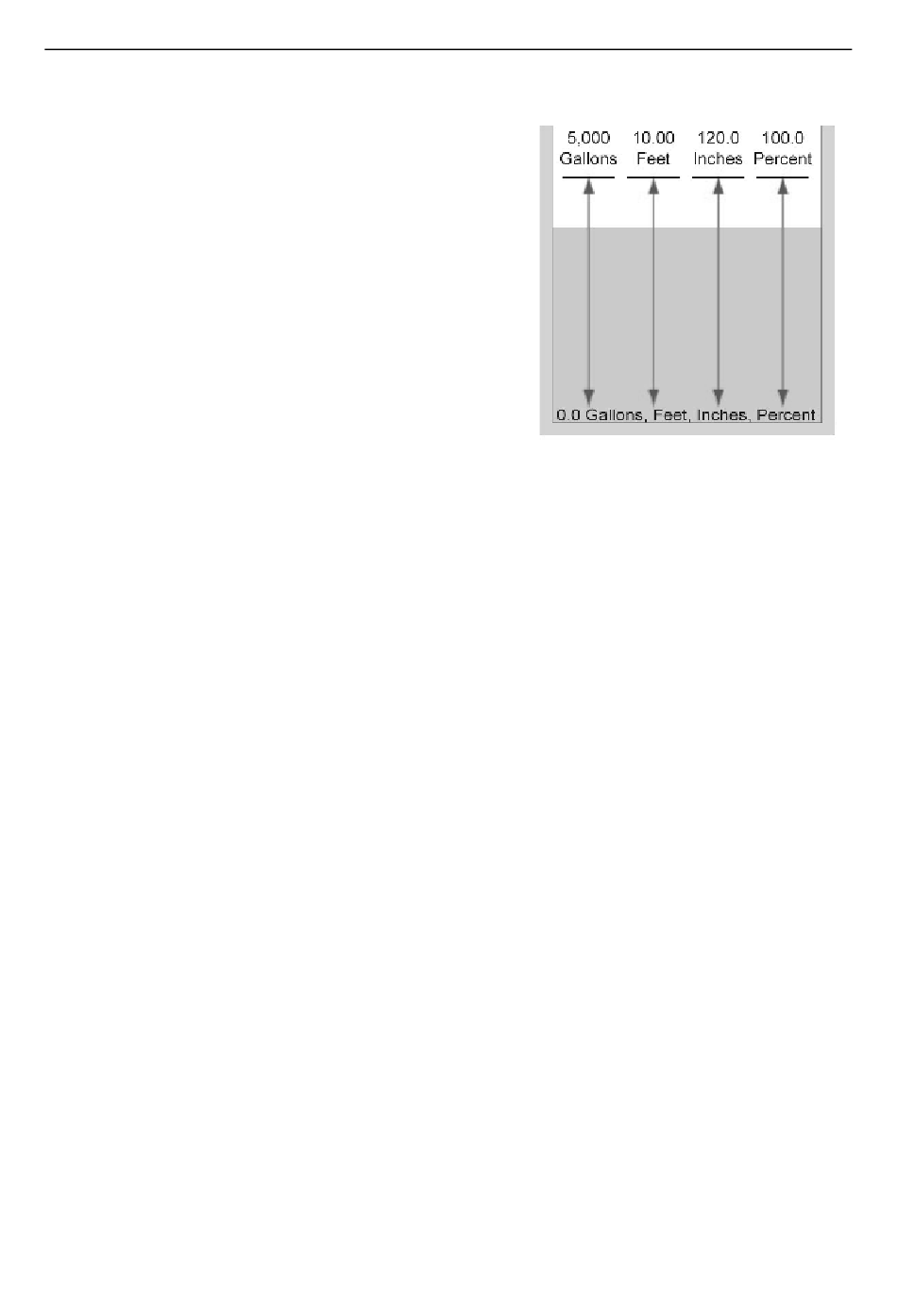

DataView™ displays information about tank
contents in engineering units. The controller
uses a two point linearization based upon the
Empty and Full settings. Note: Although a
signal source is not needed to scale
DataView™, you must configure the sensor
connected to the controller to reflect a 4-20
mA current span between tank empty (4 mA)
and full (20 mA). Enter the value you wish the
4 mA signal to reflect when empty (
and the value you wish the 20 mA signal to
FuLL
reflect when full (
Press MENU to enter the Main Menu and Units (unitS) will be the first available
1.
menu option.
Press Up to scroll through the menu options until you reach Scale (SCALE).
2.
Press ENTER and Empty (ErnPtY) will appear.
3.
Press ENTER to view the existing Empty (ErnPtY) setting. Press Right to move the
4.
highlighted digit to the right and Up to increase the setting's value (that's typically
set at 4 mA for an empty tank).
Press ENTER to the save this setting and Full (FuLL) will appear.
5.
Press ENTER to view the existing Full (FuLL) value. Press Right to move the
6.
highlighted digit to the right and Up to increase the setting's value (that's typically
set at 20 mA for a full tank).
Press ENTER to save this setting and continue to the next function.
7.
