DataView™ LI55 Level Controller
|
Set Units of Operation (unitS)
DataView™ can display level in distance (
GAL LItErS
volume ( ,
operation that you wish to use, and remember that the units chosen will not
only represent the displayed values, but also the settings for the relays and
repeater output. To set the Units of Operation, follow the below steps.

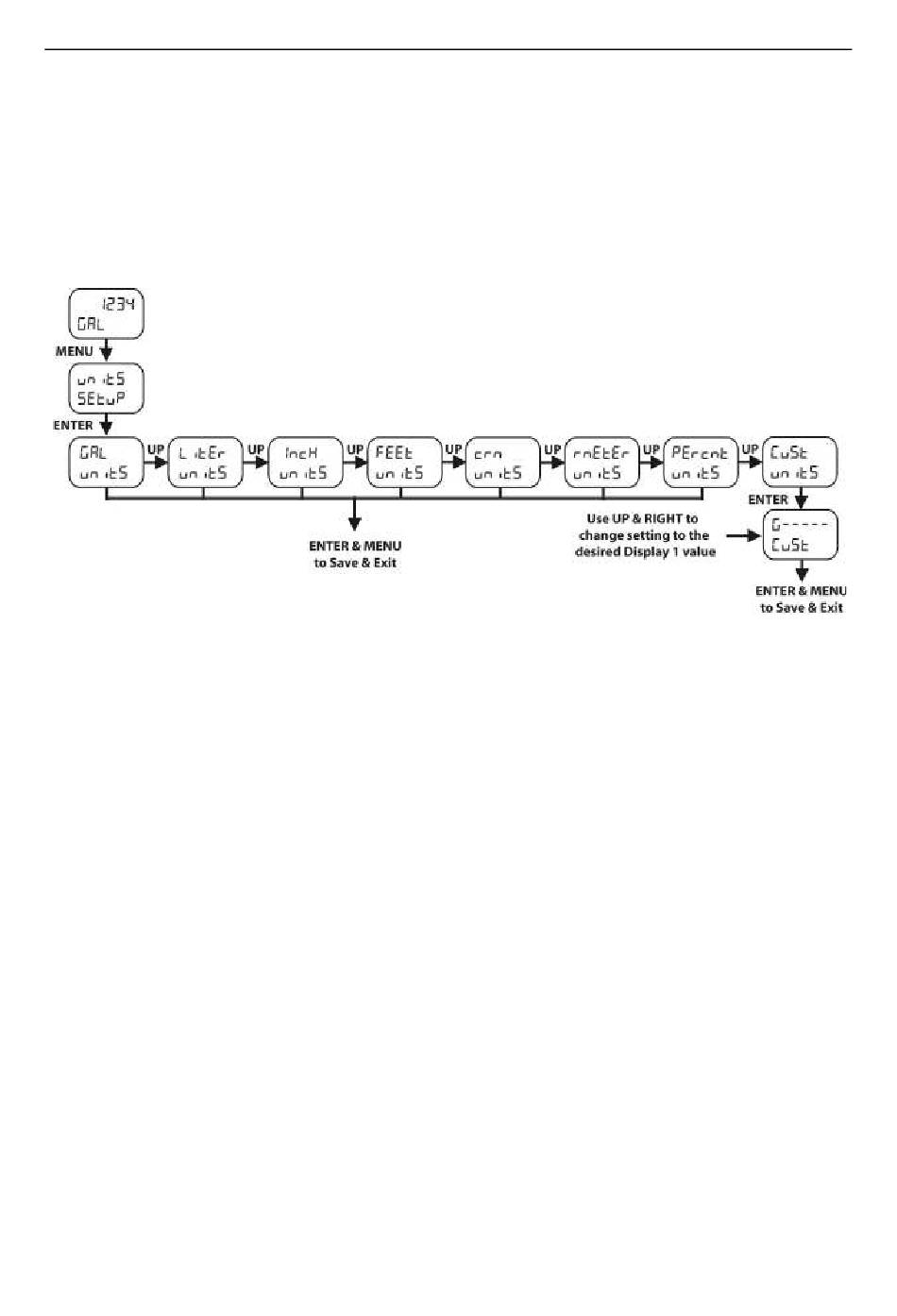

1. Press MENU to enter the Main Menu and Units (unitS) will be the first available
menu option.
2. Press ENTER and the current Units setting will appear.
3. Press Up to scroll through the options for Units. Choices include Gallons (GAL),
Liters (LitEr), Inches (IncH), Feet (FEEt), Centimeters (crn), Meters (rnEtEr),
Percent (PErcnt) and Custom (CuSt).
4. When the correct, press ENTER to save this setting and continue to the next
function, or press MENU to exit.
5. If you selected Custom (CuSt) Units, press UP and RIGHT to change the 6
display segments to the desired alphanumeric characters. When correct, press
ENTER to save this setting and continue to the next function.
