FlowLine DataView LI55 Series Quick Start Manual page 4

DataView™ LI55 Level Controller
|
UNPACKING DATAVIEW™
When unpacking DataView™, inspect for any damage that may have occurred
during shipment. Report any damage, missing parts or malfunctions to your
distributor. Installation is normally done without opening the enclosure that's
only required when changing the input from current to voltage.
MOUNTING DATAVIEW™
DataView™ is designed for panel installations, located within an instrument panel
or NEMA box enclosure. Follow the below steps to mount the controller.
1. To maintain the NEMA rating, select a panel with a thickness of 0.06"-
0.25" (1.5mm-6.4mm). The minimum thickness for steel panel is 0.06"
(1.5mm) or a plastic panel is 0.16" (4.1mm).

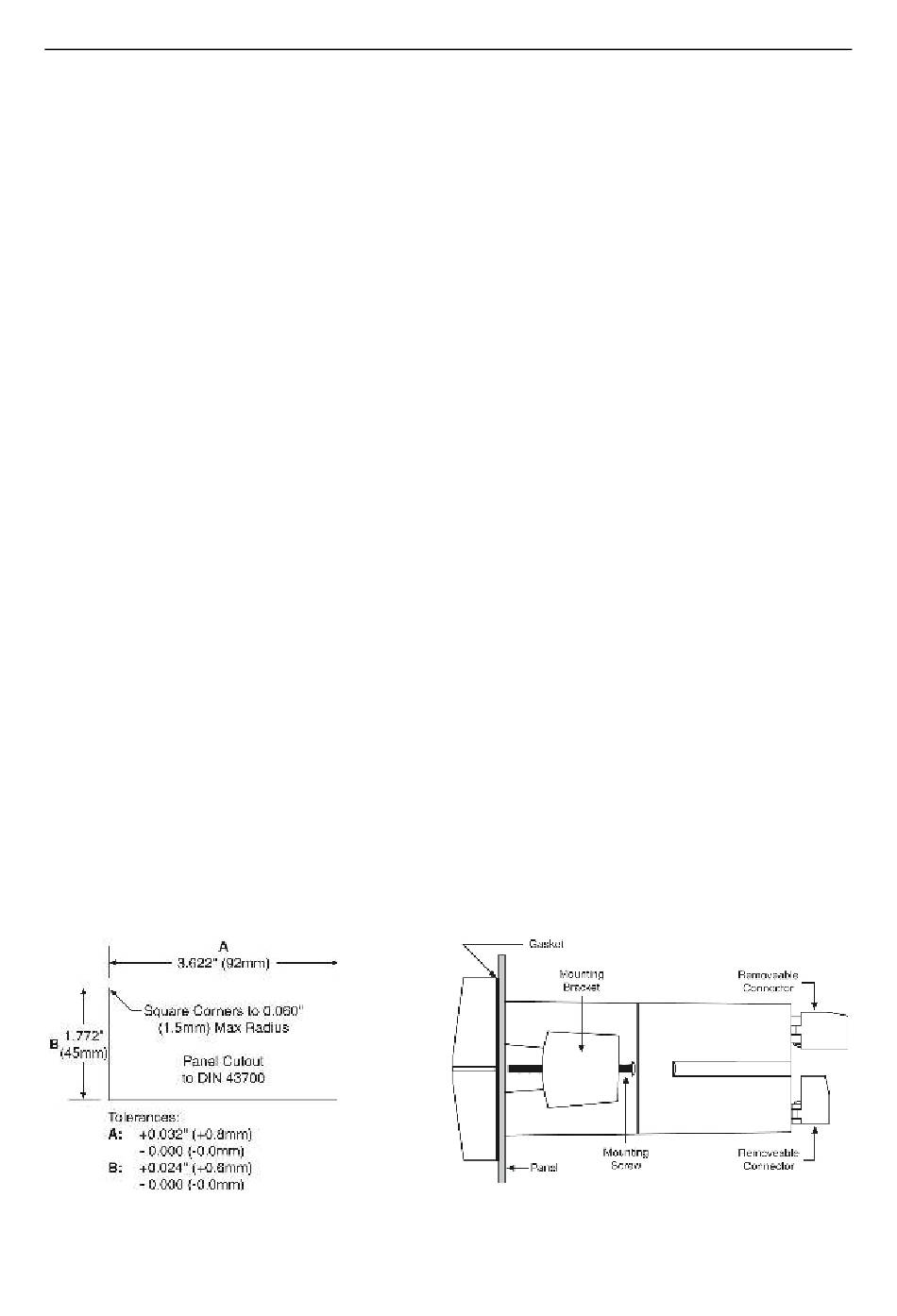

2. Prepare a standard 1/8" DIN cutout of 3.622" (92mm) W x 1.772"
(45mm) H in the panel at the desired mounting location with a minimum
of 6.0" (152mm) of clearance behind the panel for wiring.
3. Remove the two mounting brackets from the controller. To do so, back
off the mounting screws so they protrude ¼" (6.4mm) or less through
the bracket. Then, slide each bracket toward the front of the case and
remove them.
4. From the front side of the panel, insert the controller through the panel
cutout.
5. From the rear side of the panel, reinstall the two mounting brackets on
the controller and tighten the screws against the panel. Note: For a
proper seal, tighten the two mounting screws evenly against the panel
until they are snug. Be careful to not over tighten the brackets.
4
Quick Start
QS301033 Rev C1
