2.4 Linking

Several units can be interconnected via DMX connection:
1. Connect the DMX OUT of the first unit via a 3-pole XLR cable to the DMX IN of the second unit.
2. Connect the DMX OUT of the second unit to the DMX IN of the next unit, etc.

2.5 Connection of the DMX line

DMX connection employs standard XLR connectors. Use shielded pair-twisted cables with 120Ω impedance
and low capacity.

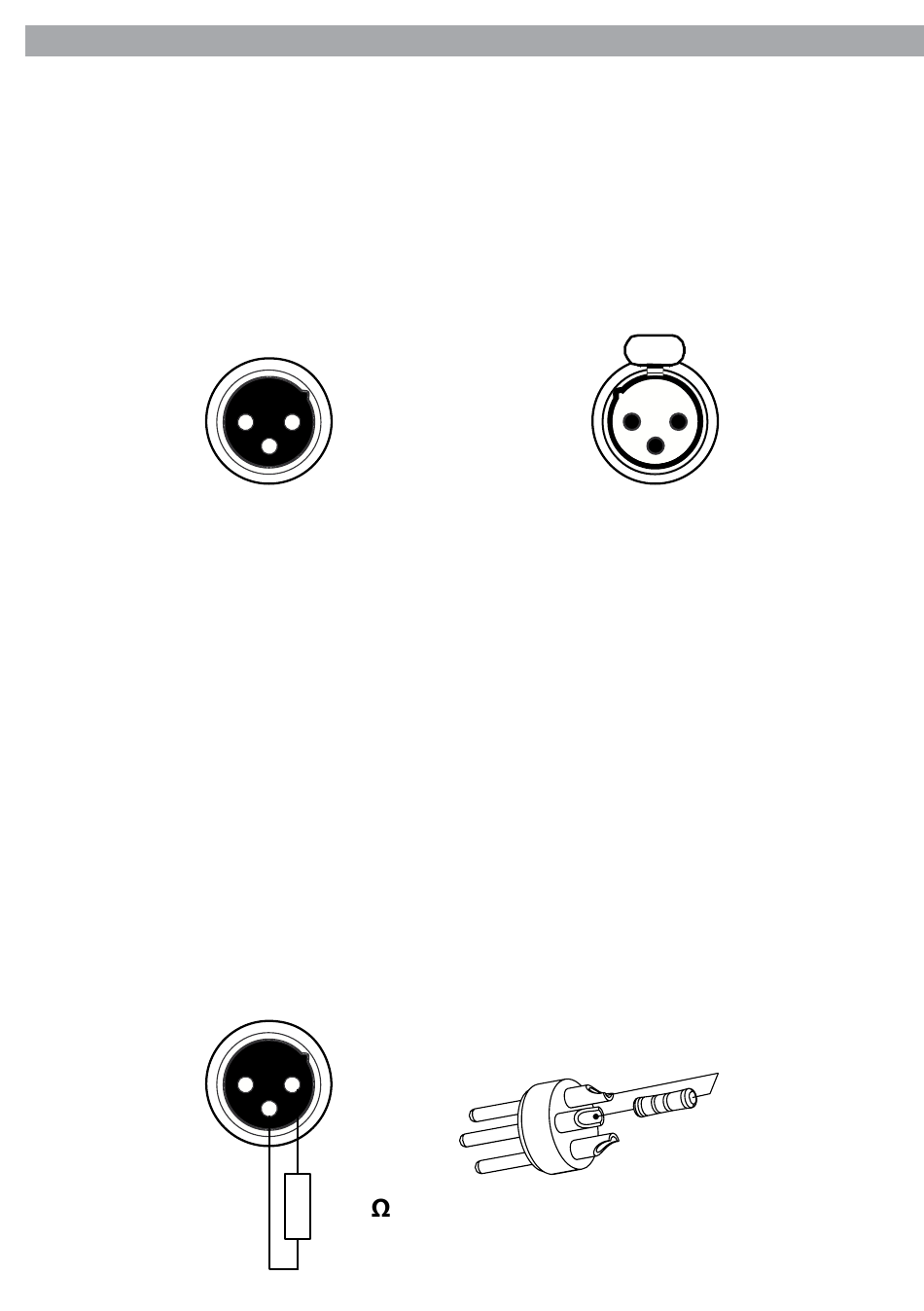

The following diagram shows the connection mode:
DMX - INPUT
XLR plug
ATTENTION
The screened parts of the cable (sleeve) must never be connected to the system's earth, as this would cause
faulty fixture and controller operation.
Over long runs can be necessary to insert a DMX level matching amplifier.
For those connections the use of balanced microphone cable is not recommended because it cannot trans-
mit control DMX data reliably.
• Connect the controller DMX input to the DMX output of the first unit.
• Connect the DMX output to the DMX input of the following unit. Connect again the output to the input
of the following unit until all the units are connected in chain.
• When the signal cable has to run longer distance is recommended to insert a DMX termination on the
last unit.

2.6 Construction of the DMX termination

The termination avoids the risk of DMX 512 signals being reflected back along the cable when they reaches
the end of the line: under certain conditions and with certain cable lengths, this could cause them to cancel
the original signals.
The termination is prepared by soldering a 120Ω 1/4 W resistor between pins 2 and 3 of the 5-pin male XLR
connector, as shown in figure.
VXBUBBLE
Pin1 : GND - Shield
1 2
Pin2 : - Negative
3 Pin3 : + Positive
1 2
3
120
Fig.4
2
3
1
Example:
3 pin XLR connector
Fig.5
DMX - OUTPUT
2 1
XLR socket
3
