- 1 - DESCRIPTION AND TECHNICAL SPECIFICATIONS

1.1 Operating elements and connections

USE ONLY WITH A 250V FUSE
1 2
1. POWER IN mains plug for connection
to a socket (220-240V~/50-60Hz) via
the supplied mains cable. The support
for the mains fuse is located near the
mains plug.
2. POWER ON/OFF
3. SWITCH ON/OFF MANUAL
4. VOLUME CONTROL
5. CONNECTOR for wireless control.
6. DMX OUT (3-pole XLR):
1= ground, 2 = DMX -, 3 = DMX +;
7. DMX IN (3-pole XLR):
1= ground, 2 = DMX -, 3 = DMX +;
8. DIP-switch [1-9], or fixing the unit's
addresses.
9. WATERSPOUT
10. CARRYING HANDLE
11. BUBBLE-WHEEL
12. TANK
13. AIR FAN SYSTEM
14. WHEEL
VXBUBBLE
3 4 5 6 7
Rear panel
8 9
10 11

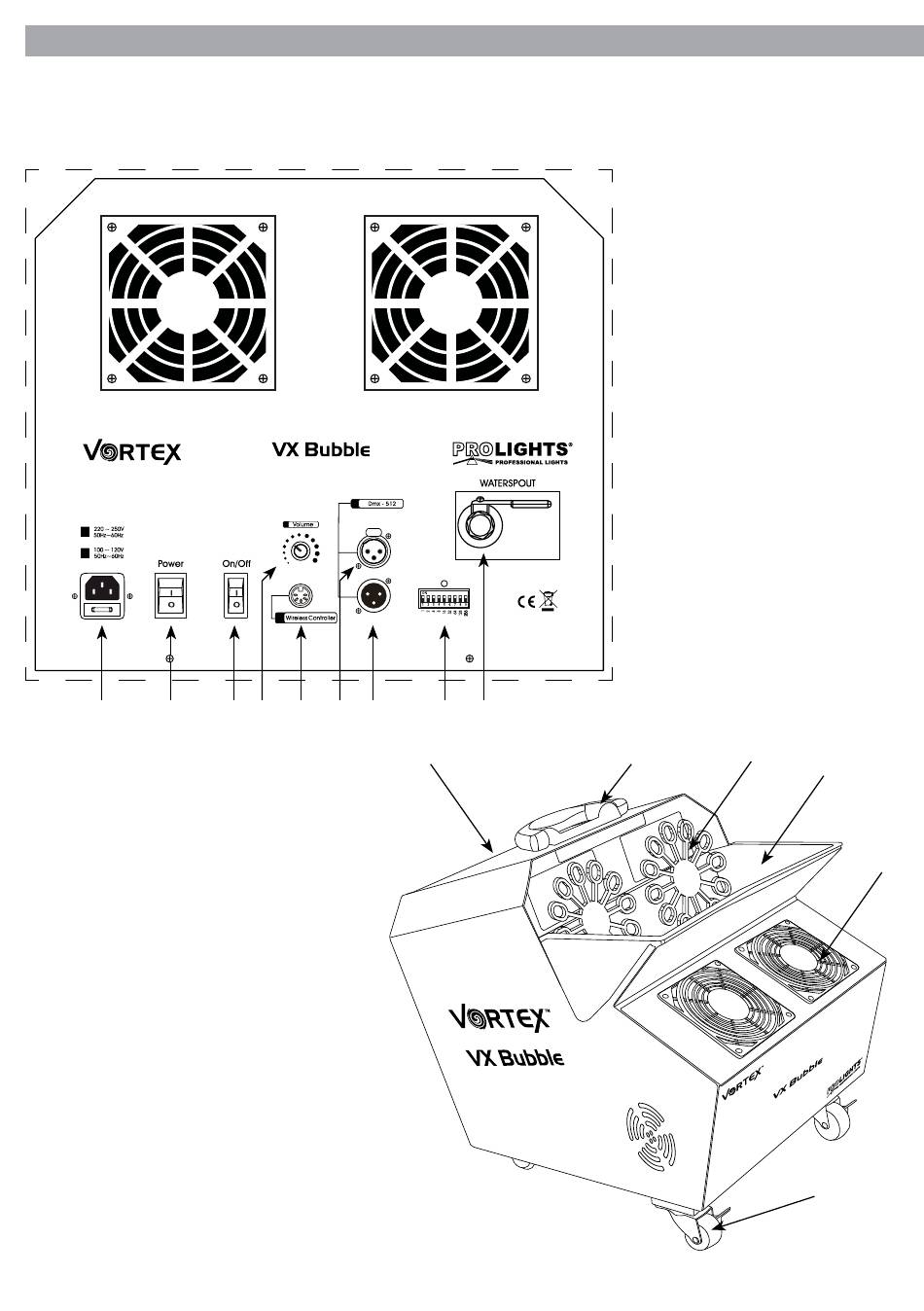

Fig.1
12
13
14
