2.7 Adjusting the start address
To be able to operate the VXBUBBLE with a light controller, adjust the DMX start address for the first DMX
channel. If e. g. address 33 on the controller is provided for controlling the function of the first DMX channel,
adjust the start address 33 on the VXBUBBLE. The other functions are then automatically assigned to the
following addresses.
An example with the start address 33 is shown below:
Number of Start address
DMX channels (example)
1 33
Switch number

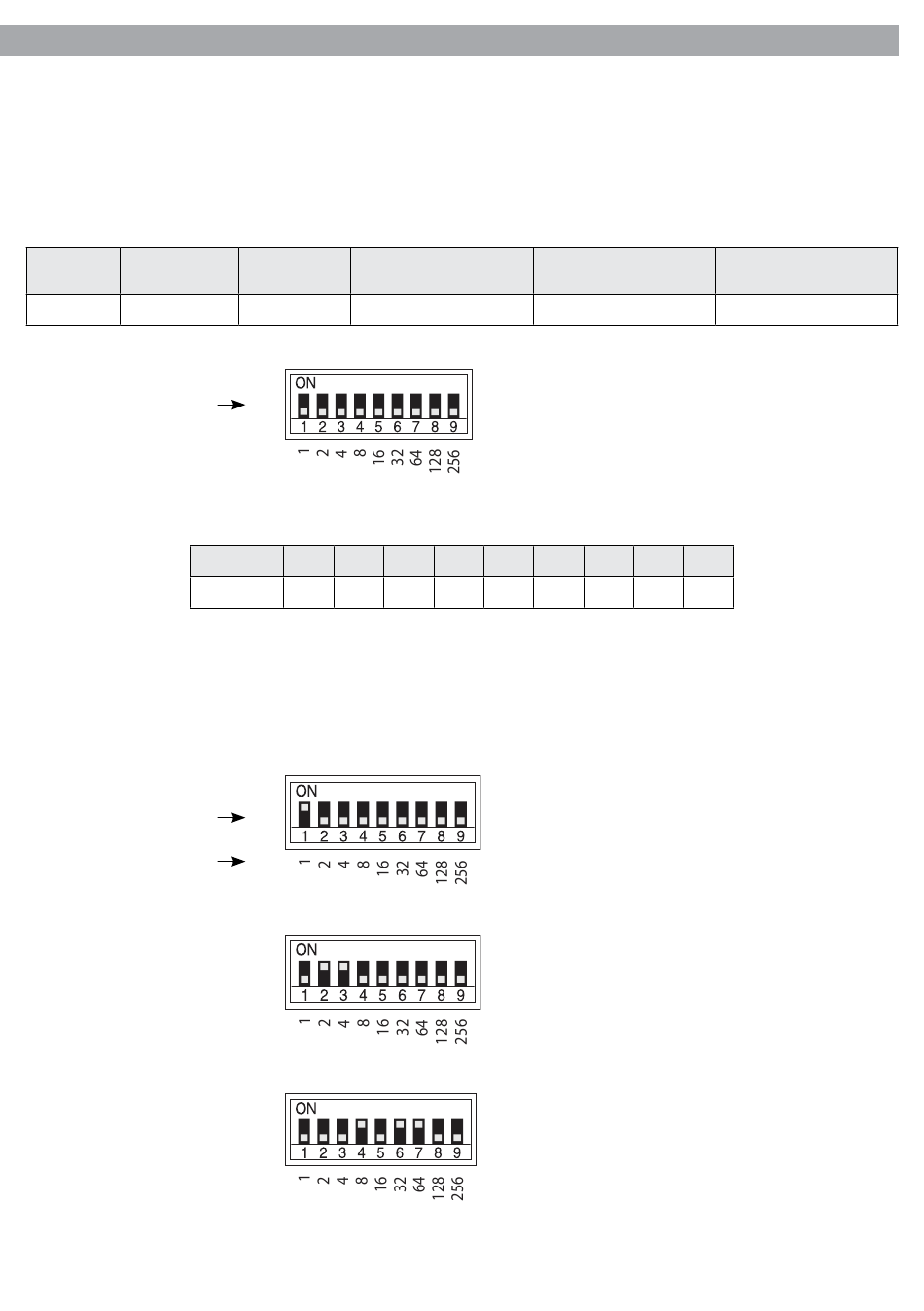

The address is set to start as a binary number by means of DIP-switch No 1 - 9. Thus, it appears the addition
values of DIP-switches positioned to ON.
Examples with the start addresses 1, 6 and 104:
Switch number
Place value
The easiest way is to start from the highest possible place value and to add the smaller values until the start
address will result.
DMX Address
occupied address for unit No. 1
33
DIP switches and DMX values
Dip Switch 1 2
1 2
DMX Value
VXBUBBLE
Next possible start
address for unit No. 2
34
*
[ ]
3 4 5 6
4 8 16 32
*
[ ]
Start address 1: switch No. 1 set to ON
*
[ ]
Start address 6: switches No. 2 and 3 set to ON
*
[ ]
Start address 104: switches Nos. 7, 6 and 4 set to ON
Next possible start
address for unit No. 3
35
7 8 9
64 128 256
9
Next possible start
36
