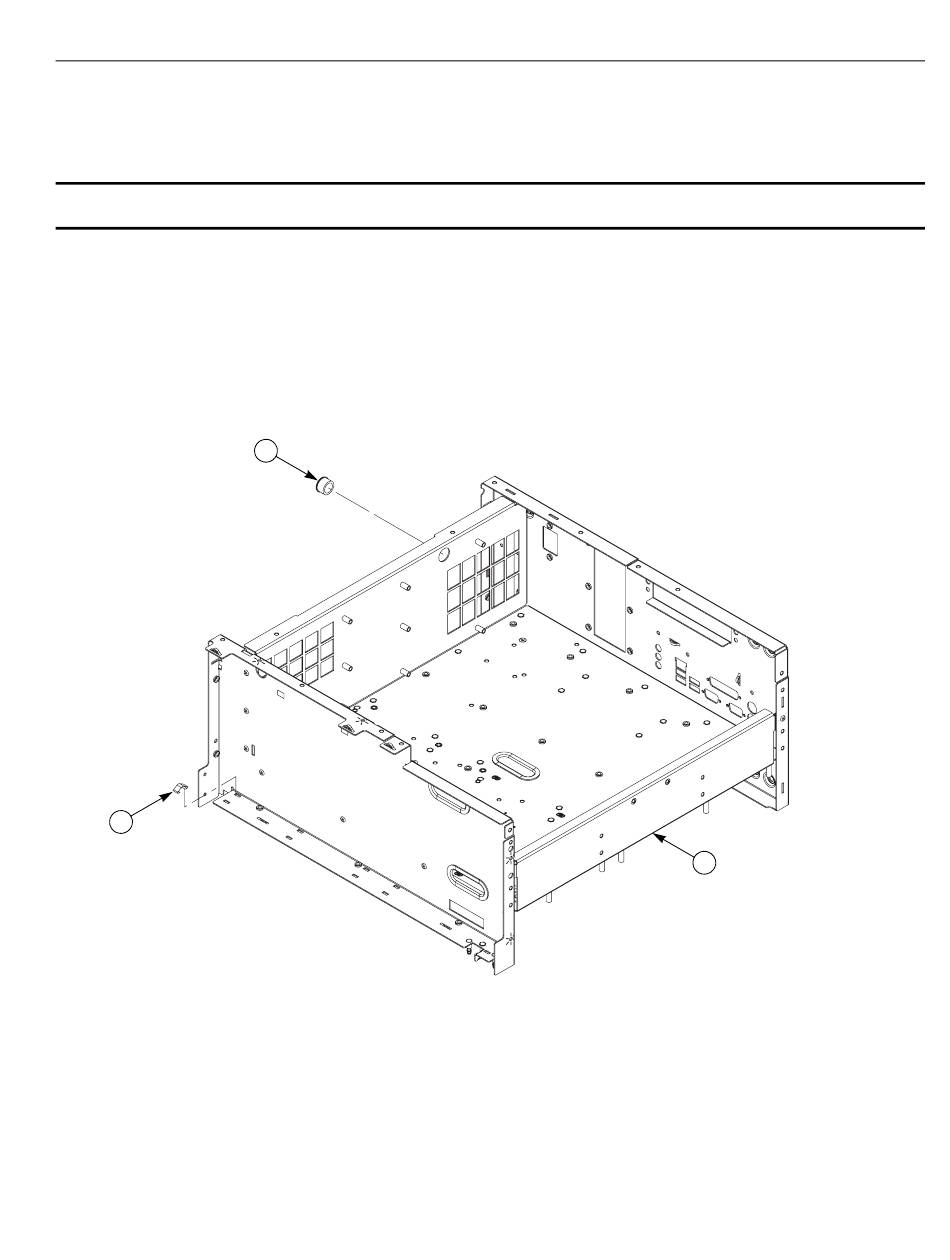

Figure 5-3: Exploded Diagram - Chassies Assembly - Tektronix AWG7000 Series Service Manual

Replaceable parts list
Fig. & index Tektronix part
number number
5-3
-1 131-6417-00
-2 348-0966-00
-3 441-2462-00
1

Figure 5-3: Exploded diagram - Chassies assembly

AWG7000 Series Service Manual
Serial no. Serial no.
effective dis-cont'd Qty
1
1
1
2
Name & description
CHASSIS ASSEMBLY
CONTACT,ELEC; GROUNDING,0.600 L X 0.250 W X 0.220 D,ELECTROLESS NICKEL
PLATE
GROMMET,PLASTIC;BLACK,ROUND,0.625 ID
CHASSIS, MAIN; ASSEMBLY
Replaceable Parts
3
5-7
