3. Click Apply, and then click FileDisconnect.

Configuring the GSM module for Internet access

Note:
To comply with RF exposure requirements, maintain at least 20 cm between the user and the GSM
modem.
1. On the General tab, set the following parameters (Table 6) and click Apply (Figure 16). In this tab
modem and service status and possible errors are displayed.
Mode
PIN
www.javad.com

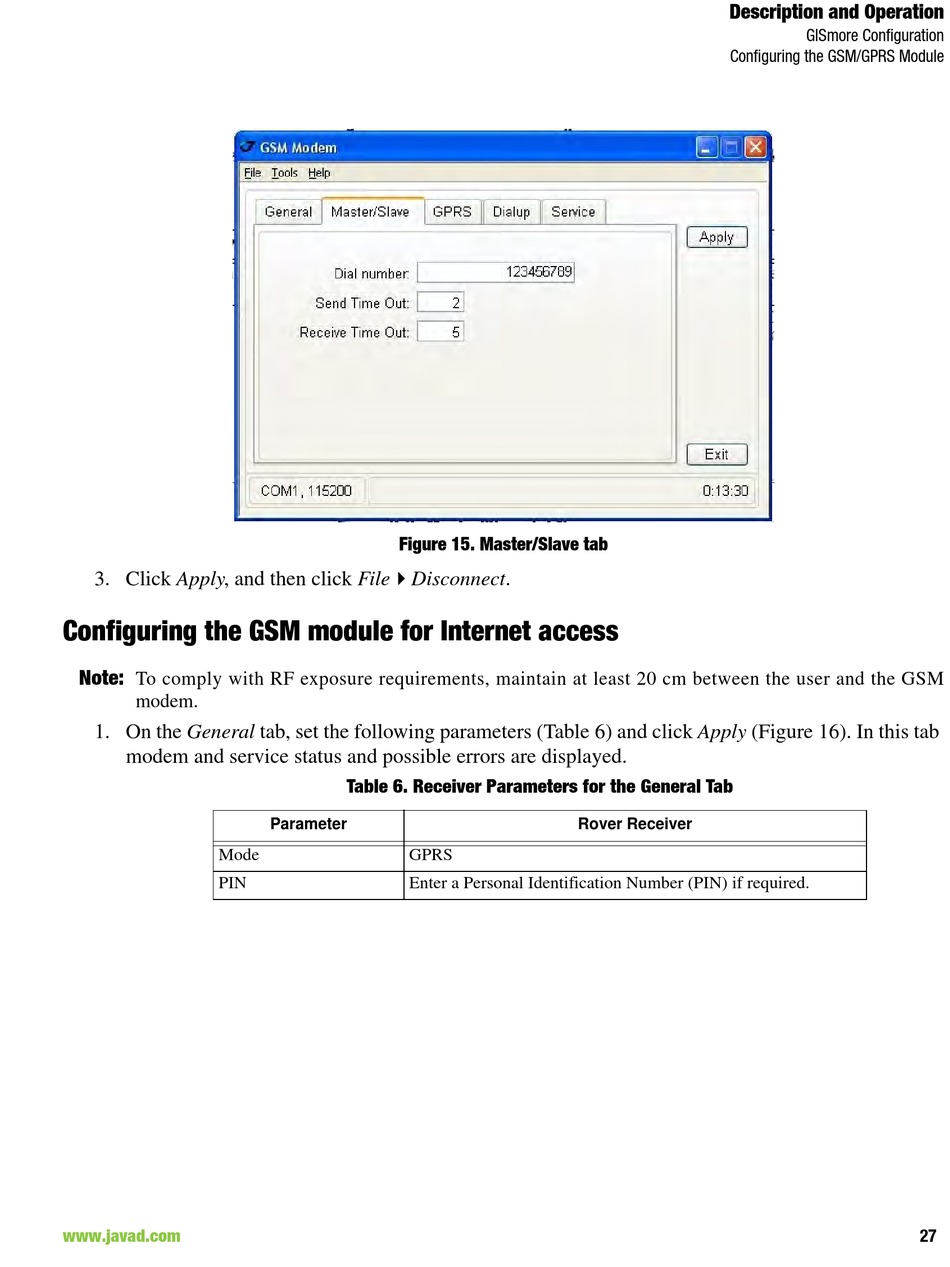

Figure 15. Master/Slave tab
Table 6. Receiver Parameters for the General Tab
Parameter
GPRS
Enter a Personal Identification Number (PIN) if required.
Description and Operation
Configuring the GSM/GPRS Module
Rover Receiver
GISmore Configuration
27
