Description and Operation
GISmore Configuration
Configuring the GSM/GPRS Module

Settings for the RCV subtab

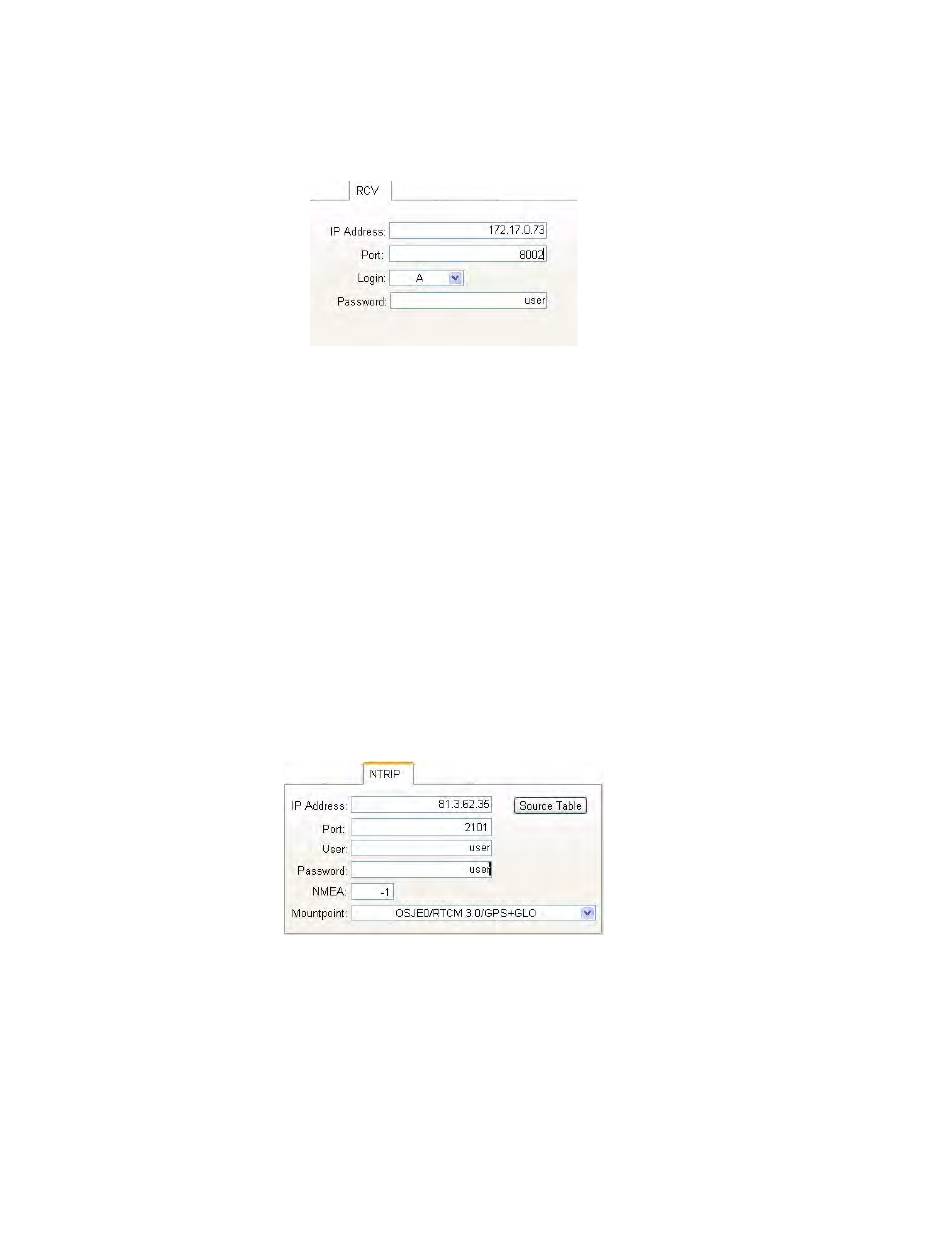

The RCV subtab is depicted in Figure 1-3.
• IP address - IP address of base station.
• Port - base station's port
• Login - designation of base station's TCP port (A, B, C, D, E or empty).
• Password - password of base station.
IP address, Port, Login, and Password are the parameters of other receiver, configured as a base station
and connected with Internet via Ethernet or GPRS.
The description of these parameters exceeds the scope of this document, see TriVU Software Manual,
available from http:///www.javad.com, for detailed information of base station's configuration and
Ethernet and TCP port settings.

Settings for the NTRIP subtab

The NTRIP subtab is depicted in Figure 1-4:
• IP address - The value of this field should match the IP address of the NTRIP caster to use.
• Port - The value of this field should match the IP port the NTRIP caster is listening on for
connections.
• User - This parameter specifies user ID for the protected space of the requested mount point.Only
basic authentication scheme is supported. If empty, no user or password values will be sent to the
NTRIP caster.
• Password - This field specifies the password for the protected space of the requested mount point.
Only basic authentication scheme is supported.
30
Figure 1-3. RCV subtab
Figure 1-4. NTRIP subtab
