Description and Operation
GISmore Configuration
Configuring the GSM/GPRS Module

Configuring the GSM module for Point-to-Point radio link

Note:
To comply with RF exposure requirements, maintain at least 20 cm between the user and the GSM
modem.
1. On the General tab, set the following parameters (Table 4) and click Apply (Figure 14 on
page 26). In this tab modem and service status and possible errors are displayed.
Mode
PIN
2. On the Master/Slave tab, set the following parameters (Table 5) and click Apply (Figure 14 on
page 26).
Parameter
Dial number
Send time out
26
Table 4. Receiver Parameters for the General Tab
Parameter
Master
Enter a Personal Identification Number (PIN) if required.

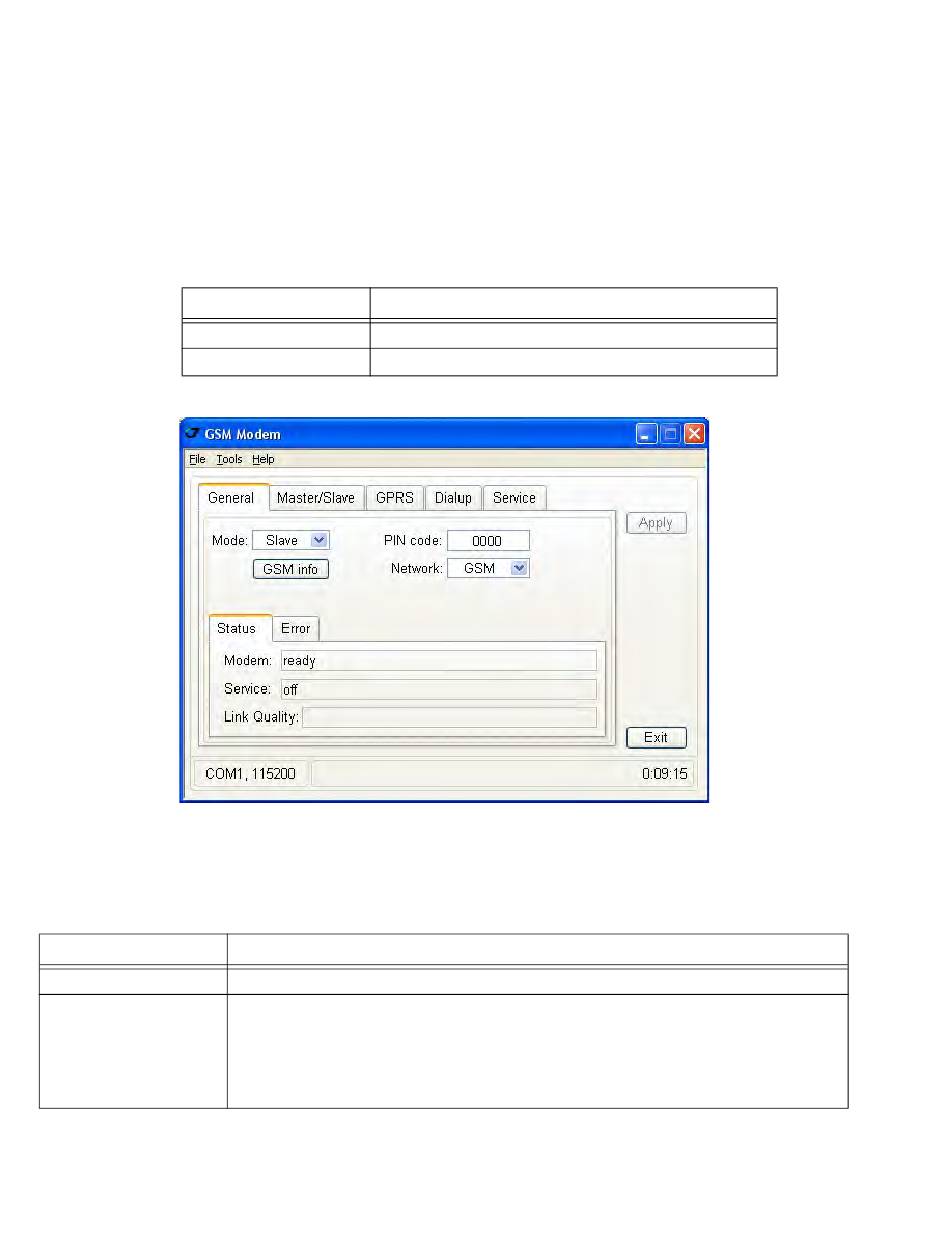

Figure 14. General tab
Table 5. Receiver Parameters for the Master/Slave Tab
Enter the phone number of the base GSM modem.
Enter a period of time in seconds in which the base/rover GSM modem will send a
service word to the rover/base GSM modem.
• This parameter is used to maintain reliable communication between a pair of modems
and avoid unnecessary modem reinitialization.
• To ensure reliable and secure modem communication, this parameter must be larger
then the period for transmitting differential corrections.
Rover Receiver
Rover Receiver
