Emx Irb-Mon (Dual Gates) - Maximum Controls MAX ARM Installation And Owner's Manual

Green Transmitter (TX) / Green Receiver (RX) Boards
emx irb-mon
To 12VDC OUTPUT Input
Transmitter (TX)
TX
POWER INPUT
TRANSMITTER
BOARD (TX)
12VDC OUT
Polarity does NOT matter
MAX Arm/Ultra Arm V1
Photocell (Thru-Beam) CLOSING Direction
Dual Gate Operators
Transmitter
(TX)
CLOSING direction Thru-Beam EMX IRB-MON Photocell
T X

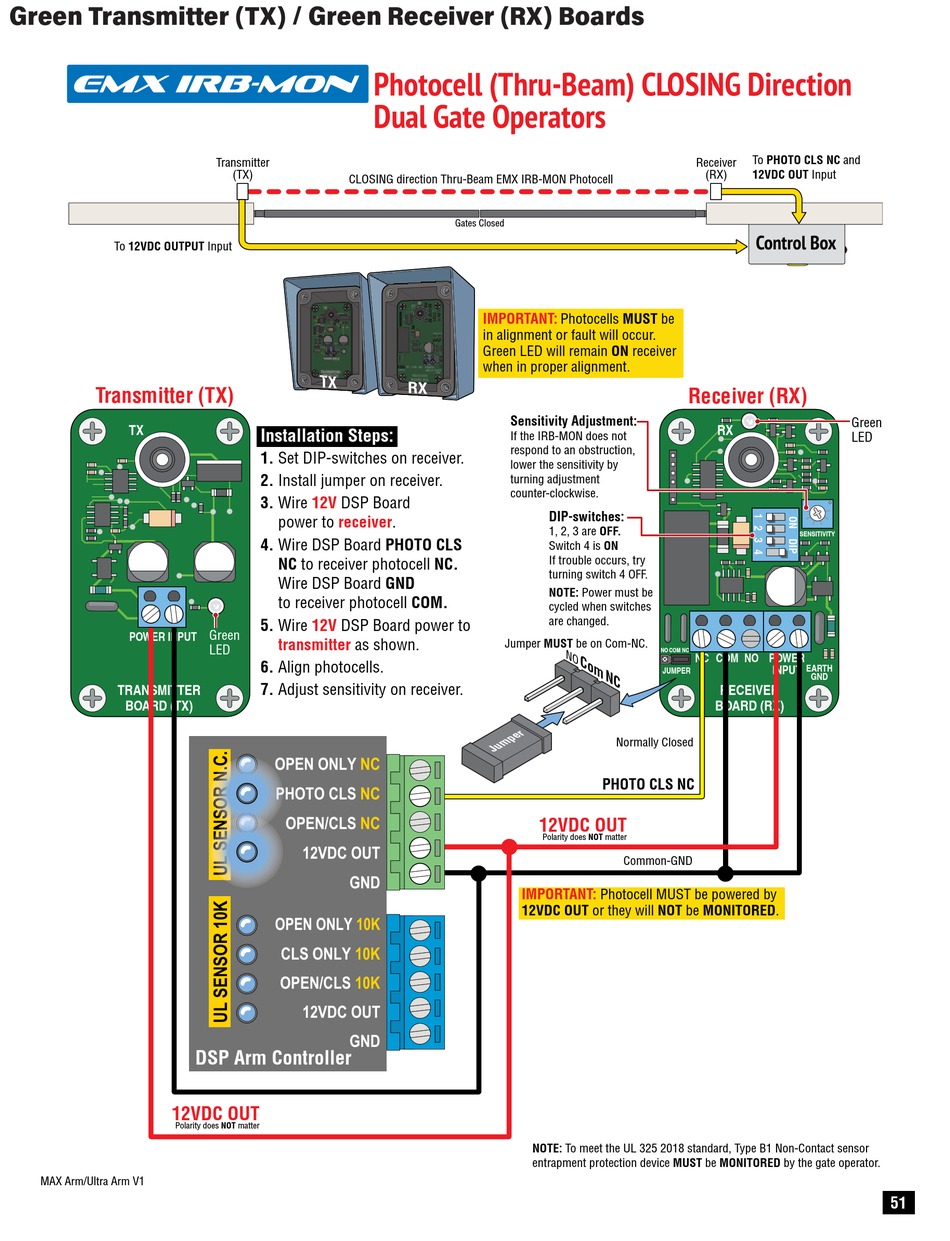

Installation Steps:
1. Set DIP-switches on receiver.
2. Install jumper on receiver.
3. Wire 12V DSP Board
power to receiver.
4. Wire DSP Board PHOTO CLS
NC to receiver photocell NC.
Wire DSP Board GND
to receiver photocell COM.
5. Wire 12V DSP Board power to
Green
transmitter as shown.
LED
6. Align photocells.
7. Adjust sensitivity on receiver.
OPEN ONLY NC
PHOTO CLS P P P P NC
OPEN/CLS NC
12VDC OUT
GND
OPEN ONLY 10K
CLS ONLY 10K
OPEN/CLS 10K
12VDC OUT
GND
DSP Arm Controller
Gates Closed
IMPORTANT: Photocells MUST be
in alignment or fault will occur.
Green LED will remain ON receiver
when in proper alignment.
Sensitivity Adjustment:
If the IRB-MON does not
respond to an obstruction,
lower the sensitivity by
turning adjustment
counter-clockwise.
DIP-switches:
1, 2, 3 are OFF.
Switch 4 is ON
If trouble occurs, try
turning switch 4 OFF.
NOTE: Power must be
cycled when switches
are changed.
Jumper MUST be on Com-NC.
N O
C o
m N
C
Normally Closed
PHOTO CLS NC
12VDC OUT
Polarity does NOT matter
Common-GND
IMPORTANT: Photocell MUST be powered by
12VDC OUT or they will NOT be MONITORED.
NOTE: To meet the UL 325 2018 standard, Type B1 Non-Contact sensor
entrapment protection device MUST be MONITORED by the gate operator.
To PHOTO CLS NC and
Receiver
12VDC OUT Input
(RX)
Control Box
Receiver (RX)
RX
SENSITIVITY
NO COM NC
NC COM NO POWER
INPUT EARTH
JUMPER
GND
RECEIVER
BOARD (RX)
Green
LED
