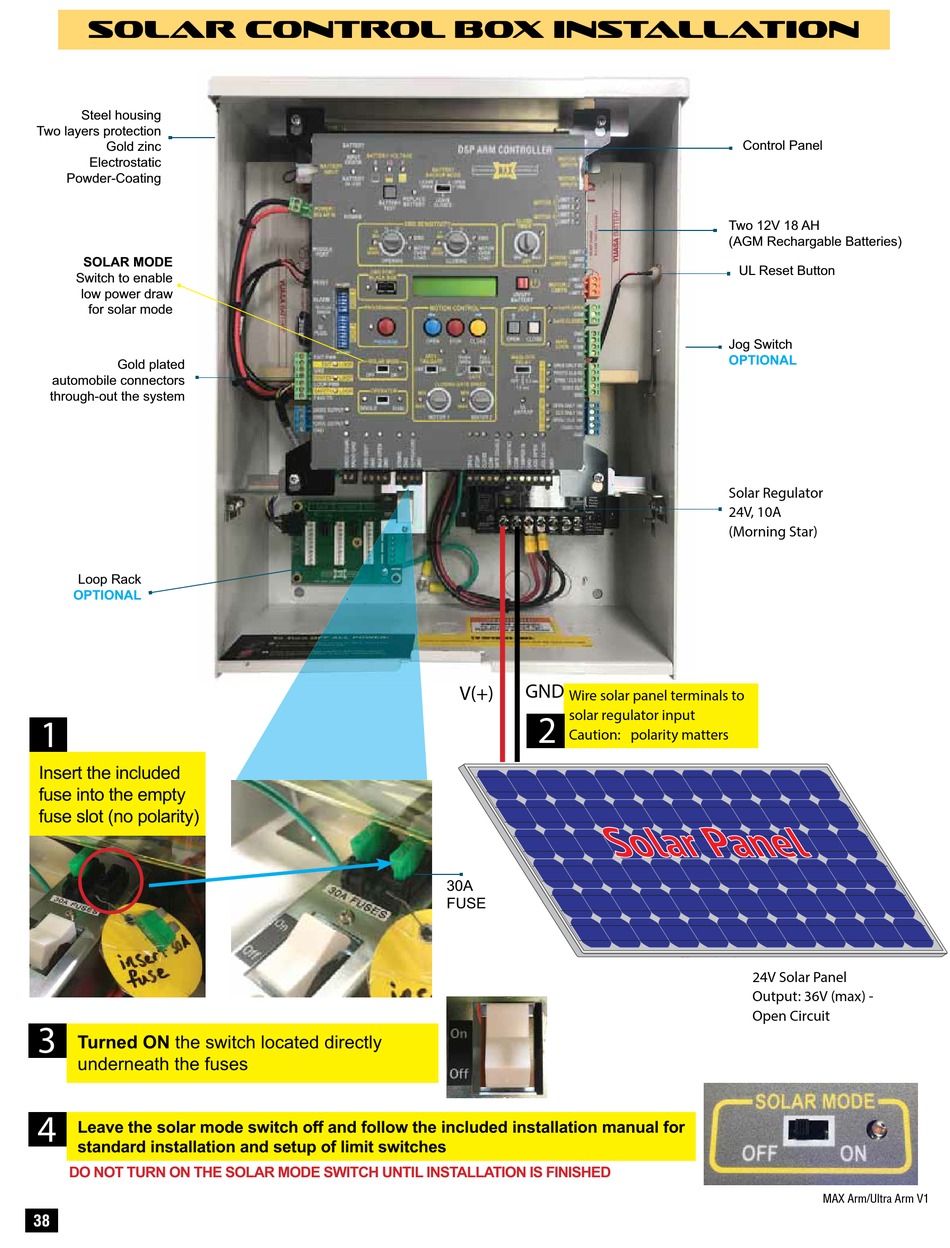

solar CONTROL box installation
Steel housing
Two layers protection
Gold zinc
Electrostatic
Powder-Coating
SOLAR MODE
Switch to enable
low power draw
for solar mode
Gold plated
automobile connectors
through-out the system
Loop Rack
OPTIONAL
1
Insert the included
fuse into the empty
fuse slot (no polarity)
3
Turned ON the switch located directly
underneath the fuses
4
Leave the solar mode switch off and follow the included installation manual for
standard installation and setup of limit switches
DO NOT TURN ON THE SOLAR MODE SWITCH UNTIL INSTALLATION IS FINISHED
38
GND
V(+)
Wire solar panel terminals to
solar regulator input
2
Caution: polarity matters
Solar Panel
30A
FUSE
Control Panel
Two 12V 18 AH
(AGM Rechargable Batteries)
UL Reset Button
Jog Switch
OPTIONAL
Solar Regulator
24V, 10A
(Morning Star)
24V Solar Panel
Output: 36V (max) -
Open Circuit
MAX Arm/Ultra Arm V1
P
S
N
