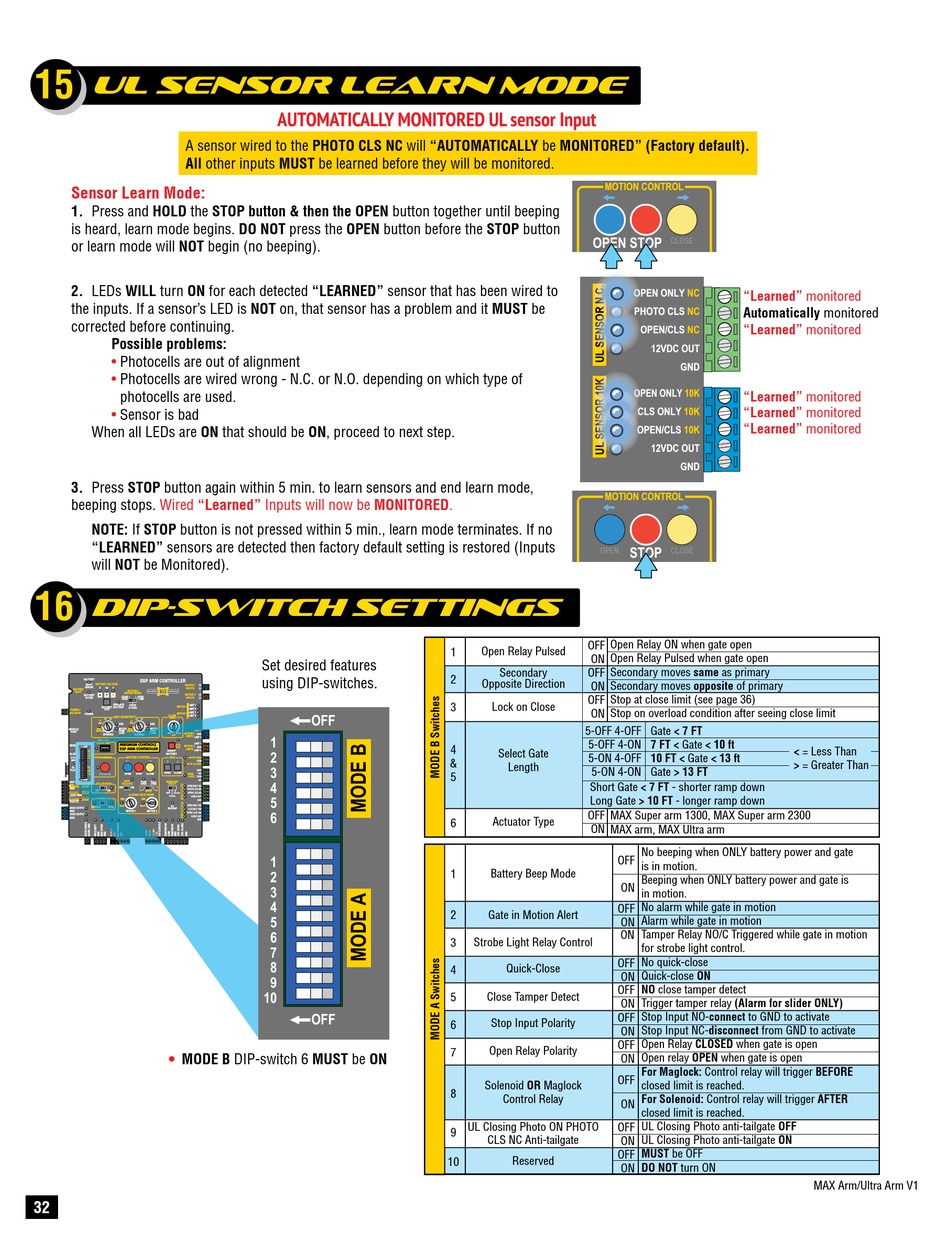

UL sensor learn mode

A sensor wired to the PHOTO CLS NC will "AUTOMATICALLY be MONITORED" (Factory default).
All other inputs MUST be learned before they will be monitored.
Sensor Learn Mode:
1. Press and HOLD the STOP button & then the OPEN button together until beeping
is heard, learn mode begins. DO NOT press the OPEN button before the STOP button
or learn mode will NOT begin (no beeping).
2. LEDs WILL turn ON for each detected "LEARNED" sensor that has been wired to
the inputs. If a sensor's LED is NOT on, that sensor has a problem and it MUST be
corrected before continuing.
Possible problems:
• Photocells are out of alignment
• Photocells are wired wrong - N.C. or N.O. depending on which type of
photocells are used.
• Sensor is bad
When all LEDs are ON that should be ON, proceed to next step.
3. Press STOP button again within 5 min. to learn sensors and end learn mode,
beeping stops. Wired "Learned" Inputs will now be MONITORED.
NOTE: If STOP button is not pressed within 5 min., learn mode terminates. If no
"LEARNED" sensors are detected then factory default setting is restored (Inputs
will NOT be Monitored).
16

dip-switch settings

BATTERY
DSP ARM CONTROLLER
INPUT BATTERY VOLTAGE
MOTOR 1 [+]
ERROR
E 1/2 F INPUTS [-]
BATTERY
BATTERY
INPUT
BACKUP MODE
[+]
BATTERY MOTOR 2
LEAVE OPEN
IN USE INPUTS [-]
OPEN 1 TIME
REPLACE LIMIT 1
LEAVE
BATTERY BATTERY MOTOR 1
CLOSED
LIMIT 2
POWER / TEST
LIMIT 1
SOLAR IN
POWER MOTOR 2
CLOSE LIMIT 2
ERD SENSITIVITY
TIMER
14 12 14 12
16
16
MIN
ERD MIN ERD
1 9 1 9
MAX MOTOR MAX MOTOR MOTOR
MODULE
SENSE OVER SENSE OVER OVER LIMIT 1 LIMIT 1
PORT 3 7 3 3 7 7
MIN MIN MAX MAX
LOAD LOAD LOAD MOTOR 1 MO GND
OPENING CLOSING CLOSING OFF O
LIMITS
LIMIT 2
OBD PORT OBD PORT
BLACK B BLACK BOX
LIMIT 1
MAXIMUM CONTROLS
RESET
OFF MOTOR 2
GND
DSP ARM CONTROLLER LIMITS
1 ON/OFF LIMIT 2
2
ALARM 3 BATTERY
4
5 PROGRAMMING MOTION CONTROL JOG GATE OPEN
ID PLUG 6
ERROR COM
1
GATE CLOSED
2
ID 3
4
PLUG 5 GND
6 OPEN CLOSE
7 NO
PROGRAM OPEN STOP CLOSE MAG
8
LOCK
9 COM
10
OFF NC
ANTI- MAGLOCK
EXIT PWR WR PUSH PULL
SOLAR MODE TAILGATE OPEN OPEN DELAY
EXIT T LOOP LOOP
OPEN ONLY NC
OFF ON
GND PHOTO CLS NC
OFF OFF ON GATE
CENTER LOOP LOOP
OFF 2.5 sec OPEN / CLS NC
LOOP PWR CLOSING GATE SPEED
1.5 sec
12VDC OUT
OPERATOR OPERATOR
SAFETY LOOP P MIN MIN
GND
FAULTS
M MAX MAX UL OPEN ONLY 10K
SINGLE SINGLE DUAL DUAL
24VDC OUTPUT
ENTRAP CLS ONLY 10K
GND MOTOR 1 M MOTOR 2
OPEN / CLS 10K
12VDC OUTPUT
12VDC OUT
GND
GND
• MODE B DIP-switch 6 MUST be ON
32
AUTOMATICALLY MONITORED UL sensor Input
Set desired features
using DIP-switches.
OFF
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
10
OFF
MOTION CONTROL
OPEN STOP
MOTION CONTROL
OPEN
Open Relay ON when gate open
OFF
Open Relay Pulsed
1
Open Relay Pulsed when gate open
ON
Secondary moves same as primary
Secondary OFF
2
Opposite Direction
Secondary moves opposite of primary
ON
OFF Stop at close limit (see page 36)
Lock on Close
3
ON Stop on overload condition after seeing close limit
5-OFF 4-OFF
5-OFF 4-ON
4
Select Gate
5-ON 4-OFF
&
Length
5-ON 4-ON
5
Short Gate < 7 FT - shorter ramp down
Long Gate > 10 FT - longer ramp down
OFF MAX Super arm 1300, MAX Super arm 2300
Actuator Type
6
ON MAX arm, MAX Ultra arm
OFF
1 Battery Beep Mode
ON
OFF
2 Gate in Motion Alert
ON
ON
3 Strobe Light Relay Control
OFF
Quick-Close
4
ON
OFF
5 Close Tamper Detect
ON
OFF
Stop Input Polarity
6
ON
OFF
Open Relay Polarity
7
ON
OFF
Solenoid OR Maglock
8
Control Relay
ON
UL Closing Photo ON PHOTO
OFF
9
CLS NC Anti-tailgate
ON
OFF
Reserved
10
ON
CLOSE
O OPEN ONLY O O O O NC
"Learned" monitored
PHOTO CLS NC Automatically monitored
"Learned" monitored
OPEN/CLS NC
12VDC OUT
GND
O O OPEN ONLY O O O 10K
"Learned" monitored
C CLS ONLY C 10K "Learned" monitored
"Learned" monitored
OPEN/CLS O O 10K
12VDC OUT
GND
STOP
CLOSE
Gate < 7 FT
7 FT < Gate < 10 ft
< = Less Than
10 FT < Gate < 13 ft
> = Greater Than
Gate > 13 FT
No beeping when ONLY battery power and gate
is in motion.
Beeping when ONLY battery power and gate is
in motion.
No alarm while gate in motion
Alarm while gate in motion
Tamper Relay NO/C Triggered while gate in motion
for strobe light control.
No quick-close
Quick-close ON
NO close tamper detect
Trigger tamper relay (Alarm for slider ONLY)
Stop Input NO-connect to GND to activate
Stop Input NC-disconnect from GND to activate
Open Relay CLOSED when gate is open
Open relay OPEN when gate is open
For Maglock: Control relay will trigger BEFORE
closed limit is reached.
For Solenoid: Control relay will trigger AFTER
closed limit is reached.
UL Closing Photo anti-tailgate OFF
UL Closing Photo anti-tailgate ON
MUST be OFF
DO NOT turn ON
MAX Arm/Ultra Arm V1
