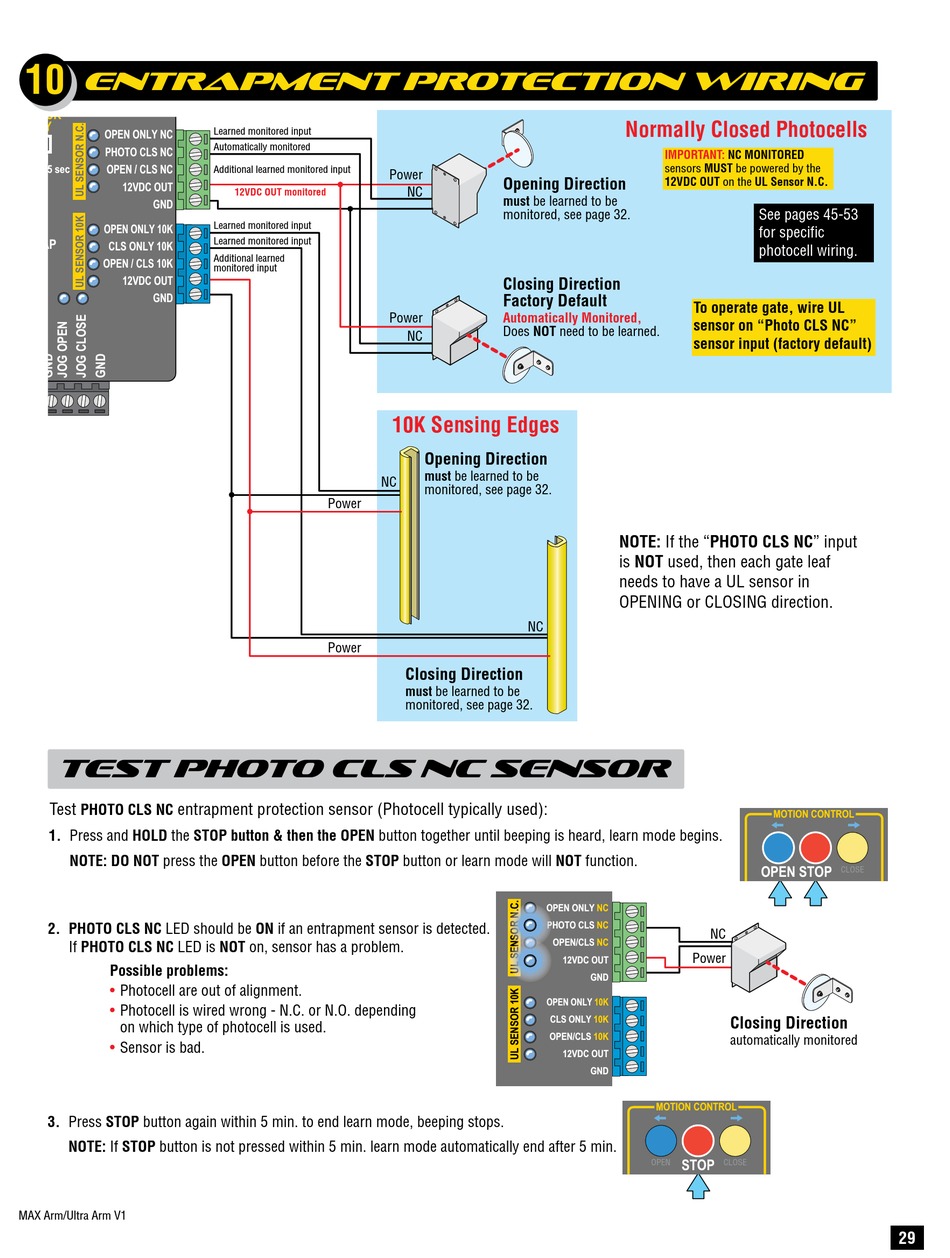

Entrapment Protection Wiring (Test Photo Cls Nc Sensor) - Maximum Controls MAX ARM Installation And Owner's Manual

GND
10
EN CLOSE
NO
entrapment protection wiring MAG
LOCK
COM
NC
MAGLOCK
DELAY
OPEN ONLY NC
PHOTO CLS NC
OPEN / CLS NC
FF 2.5 sec
1.5 sec
12VDC OUT
GND
OPEN ONLY 10K
UL
ENTRAP
CLS ONLY 10K
OPEN / CLS 10K
12VDC OUT
GND
test photo cls nc sensor
Test entrapment protection sensor (Photocell typically used):
PHOTO CLS NC
1. Press and HOLD the STOP button & then the OPEN button together until beeping is heard, learn mode begins.
NOTE: DO NOT press the OPEN button before the STOP button or learn mode will NOT function.
2. PHOTO CLS NC LED should be ON if an entrapment sensor is detected.
If PHOTO CLS NC LED is NOT on, sensor has a problem.
Possible problems:
• Photocell are out of alignment.
• Photocell is wired wrong - N.C. or N.O. depending
on which type of photocell is used.
• Sensor is bad.
3. Press STOP button again within 5 min. to end learn mode, beeping stops.
NOTE: If STOP button is not pressed within 5 min. learn mode automatically end after 5 min.
MAX Arm/Ultra Arm V1
Learned monitored input
Automatically monitored
Additional learned monitored input
Power
12VDC OUT monitored
Learned monitored input
Learned monitored input
Additional learned
monitored input
Power
10K Sensing Edges
NC
Power
Power
Opening Direction
NC
must be learned to be
monitored, see page 32.
Closing Direction
Factory Default
Automatically Monitored,
Does NOT need to be learned.
NC
Opening Direction
must be learned to be
monitored, see page 32.
NC
Closing Direction
must be learned to be
monitored, see page 32.
OPEN ONLY
P P P P PHOTO CLS
OPEN/CLS
12VDC OUT
OPEN ONLY
CLS ONLY
OPEN/CLS
12VDC OUT
Normally Closed Photocells
IMPORTANT: NC MONITORED
sensors MUST be powered by the
12VDC OUT on the UL Sensor N.C.
See pages 45-53
for specific
photocell wiring.
To operate gate, wire UL
sensor on "Photo CLS NC"
sensor input (factory default)
NOTE: If the "PHOTO CLS NC" input
is NOT used, then each gate leaf
needs to have a UL sensor in
OPENING or CLOSING direction.
OPEN STOP
NC
NC
NC
NC
Power
GND
10K
10K Closing Direction
10K
automatically monitored
GND
MOTION CONTROL
STOP
OPEN CLOSE
MOTION CONTROL
CLOSE
