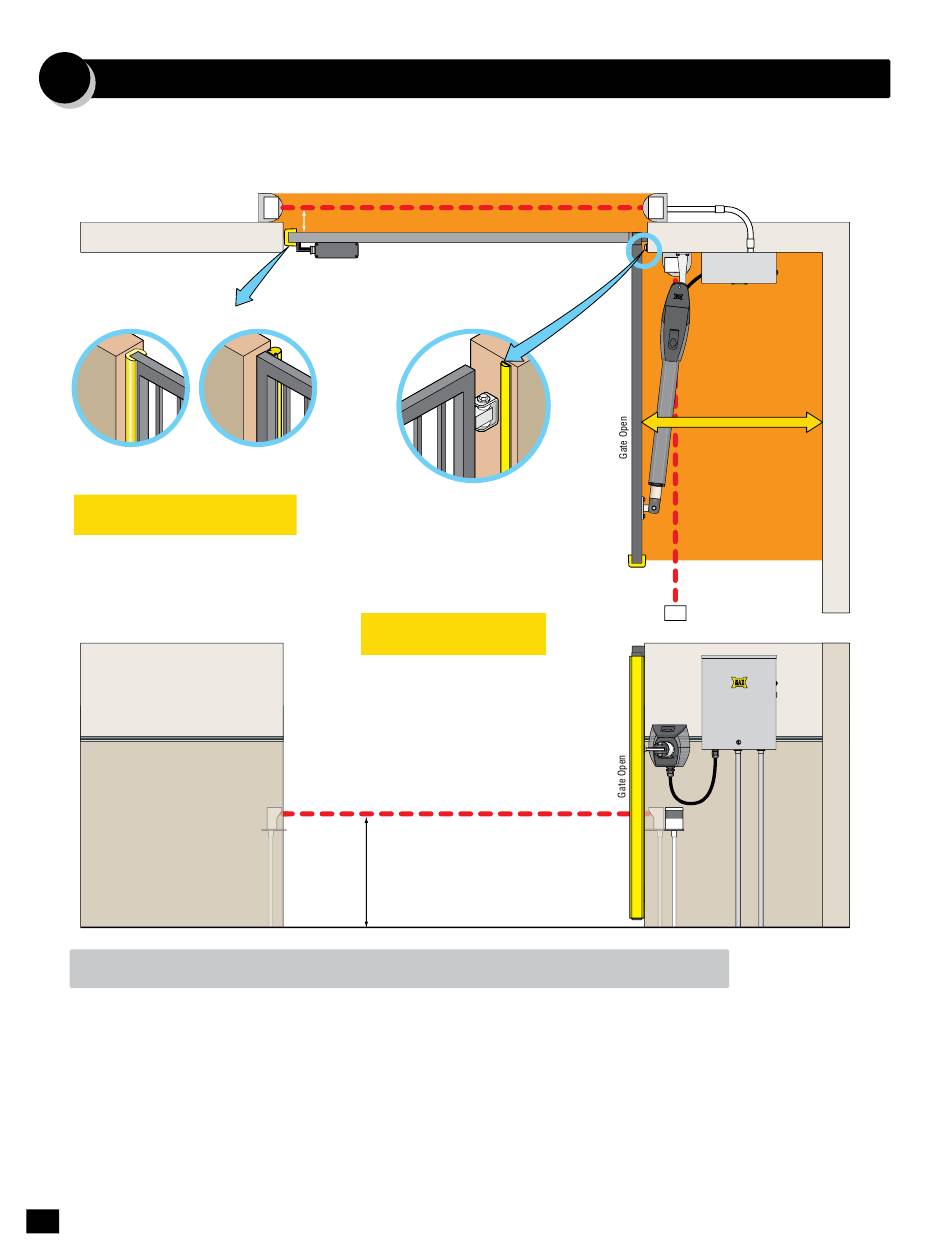

entrapment protection locations
At least ONE entrapment protection device MUST be installed or the operator will NOT function. Typically it is the CLOSING
direction photocell. Entrapment sensors MUST be installed in BOTH opening and closing direction of gate movement where
entrapment or pinch point exist.
Top View
End of Gate Options
C l o
s e d
G a
t e
OPENING/CLOSING
Two Sided 10K Sensing Edge
IMPORTANT:
Sensing edges MUST be
Monitored 10K Normally Closed Type.
Side View
list of Sensors - UL325 2018
The following is a list of recommended safety devices for the MAX Arm Operators (sold separately).
Omron E3K-R10K4-10R Photocell (Reflector)
EMX IRB-MON Photocell (Thru-Beam)
EMX IRB-RET Photocell (Reflector)
EMX Wireless Edge Link WEL-200T / WEL-200R
Enforcer E931-S50RRGQ Photocell (Reflector)
Enforcer E960-G90GQ Twin Beam (Thru-Beam)
Miller Edge Prime Guard Photocell (Thru-Beam)
Miller Edge GEM-104 10K to NC Converter
28
Beam: 5" or LESS from CLOSED gate.
Wireless
WIRELESS NOTE: Refer to the instruction sheet that
Module
comes with the wireless module for wiring and
mounting instructions when using wireless option.
C l o
s e d
G a
t e
CLOSING ONLY
One Sided
10K Sensing Edge
The hinge area may need
protection against entrapment.
MAX 10K mini sensing edge
works well in this area.
(OPEN/CLOSE direction input)
IMPORTANT:
be in alignment or fault will occur.
See "GATE SAFETY and REQUIREMENTS" in
front of this manual for entrapment protection
requirements, locations etc, pages 4-11.
CLOSING direction Photocell
Beam Height:
21" Normal
27.5" Max.
Entrapment Area
Gate Closed
Hinge Area
Max 10K Mini
Sensing Edge
(N.C.)
t e
G a
s e d
C l o
OPENING/CLOSING or
Closing ONLY 10K (N.C.)
Sensing Edge
Photocells MUST
Entrapment Protection
10K Sensing Edge,
Install along entire
edge of gate.
Miller Edge R-Band Wireless Edge Unit
P/N: RB-G-RX10 & RB-TX10
Transmitter Solutions IGAZER50LR-UL Photocell (Reflector)
Transmitter Solutions IGAZESR66HD Photocell (Thru-Beam)
Transmitter Solutions Wireless Edge Sensor Model: RCOO900
P/N: IGAZEREKIT-UL
ASO Edge MAX Mini Edge Contact Edge Sensor
ASO Edge Thin Edge MAX Edge 1 Contact Edge Sensor
CLOSING direction photocell
Entrapment
Area
If distance is less than
16 inches, entrapment
protection is REQUIRED
in this area.
Normally CLOSED (N.C.)
OPENING direction
Photocell
OPENING direction Photocell
MAX Arm/Ultra Arm V1
