push

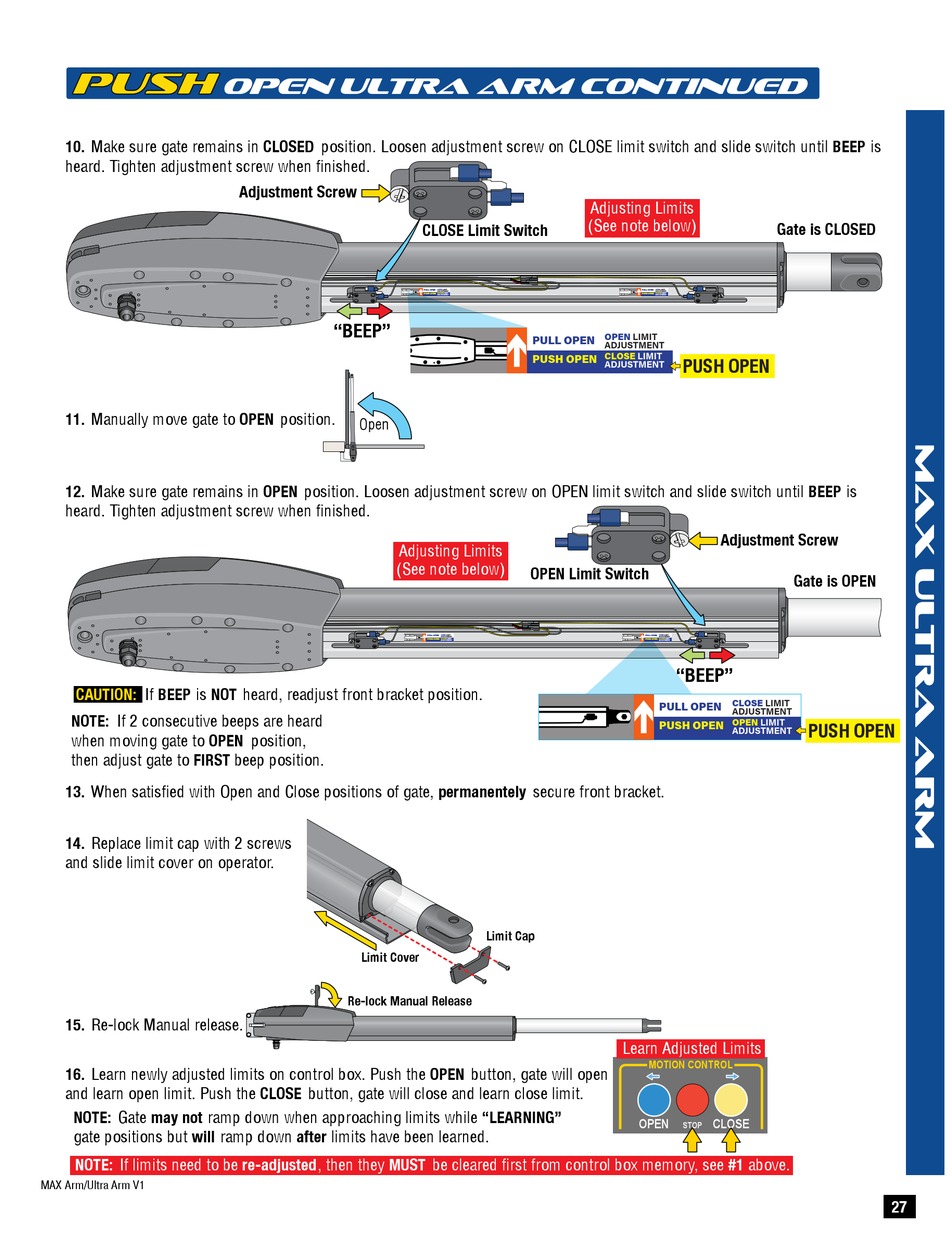

10. Make sure gate remains in CLOSED position. Loosen adjustment screw on CLOSE limit switch and slide switch until BEEP is
heard. Tighten adjustment screw when finished.
11. Manually move gate to OPEN position.
12. Make sure gate remains in OPEN position. Loosen adjustment screw on OPEN limit switch and slide switch until BEEP is
heard. Tighten adjustment screw when finished.
CAUTION: If BEEP is NOT heard, readjust front bracket position.
NOTE: If 2 consecutive beeps are heard
when moving gate to OPEN position,
then adjust gate to FIRST beep position.
13. When satisfied with Open and Close positions of gate, permanentely secure front bracket.
14. Replace limit cap with 2 screws
and slide limit cover on operator.
15. Re-lock Manual release.
16. Learn newly adjusted limits on control box. Push the OPEN button, gate will open
and learn open limit. Push the CLOSE button, gate will close and learn close limit.
NOTE: Gate may not ramp down when approaching limits while "LEARNING"
gate positions but will ramp down after limits have been learned.
NOTE: If limits need to be re-adjusted, then they MUST be cleared first from control box memory, see #1 above.
MAX Arm/Ultra Arm V1
open ultra arm continued
Adjustment Screw
"BEEP"
5"
127mm
7.35"
186mm
5.07"
128mm
2
Open
Adjusting Limits
(See note below)
5"
127mm
7.35"
186mm
5"
5.07"
128mm
127mm
2
7.35"
186mm
5.07"
128mm
2
Limit Cover
Re-lock Manual Release
5"
127mm
Max = 60.3" (+/-.39") (1531 mm (+/- 10 mm)
7.35"
186mm
5.07"
128mm
CLOSE Limit Switch
PULL OPEN OPEN LIMIT
ADJUSTMENT
PUSH OPEN CLOSE LIMIT
ADJUSTMENT
Switch Limit Switch Limit
PULL OPEN
PUSH OPEN
Max = 60.3" (+/-.39") (1531 mm (+/- 10 mm)
MAX Ultra Arm V1
Limit
Switch
OPEN Limit Switch
PULL OPEN OPEN LIMIT
ADJUSTMENT
CLOSE LIMIT
PUSH OPEN
ADJUSTMENT
Limit Limit
Switch Switch
Max = 60.3" (+/-.39") (1531 mm (+/- 10 mm)
MAX Ultra Arm V1
Max = 60.3" (+/-.39") (1531 mm (+/- 10 mm)
Limit
Switch
Limit Cap
Adjusting Limits
(See note below)
PULL OPEN OPEN LIMIT
ADJUSTMENT
PUSH OPEN CLOSE LIMIT
ADJUSTMENT
Limit Switch Switch Limit
OPEN LIMIT
ADJUSTMENT
CLOSE LIMIT PUSH OPEN
ADJUSTMENT
5"
127mm
Max = 60.3" (+/-.39") (1531 mm (+/- 10 mm)
7.35"
186mm
5.07"
128mm
MAX Ultra Arm V1
2
Limit
Switch
Adjustment Screw
PULL OPEN OPEN LIMIT
ADJUSTMENT
CLOSE LIMIT
PUSH OPEN
ADJUSTMENT
Limit Limit "BEEP"
Switch Switch
CLOSE LIMIT
PULL OPEN
ADJUSTMENT
5"
127mm
Max = 60.3" (+/-.39") (1531 mm (+/- 10 mm)
7.35"
186mm OPEN LIMIT
PUSH OPEN
5.07"
128mm
ADJUSTMENT
MAX Ultra Arm V1
2
MAX Ultra Arm V1
Limit
Switch
Learn Adjusted Limits
MOTION CONTROL
OPEN CLOSE
STOP
MAX Ultra Arm V1
Gate is CLOSED
Gate is OPEN
PUSH OPEN
27
