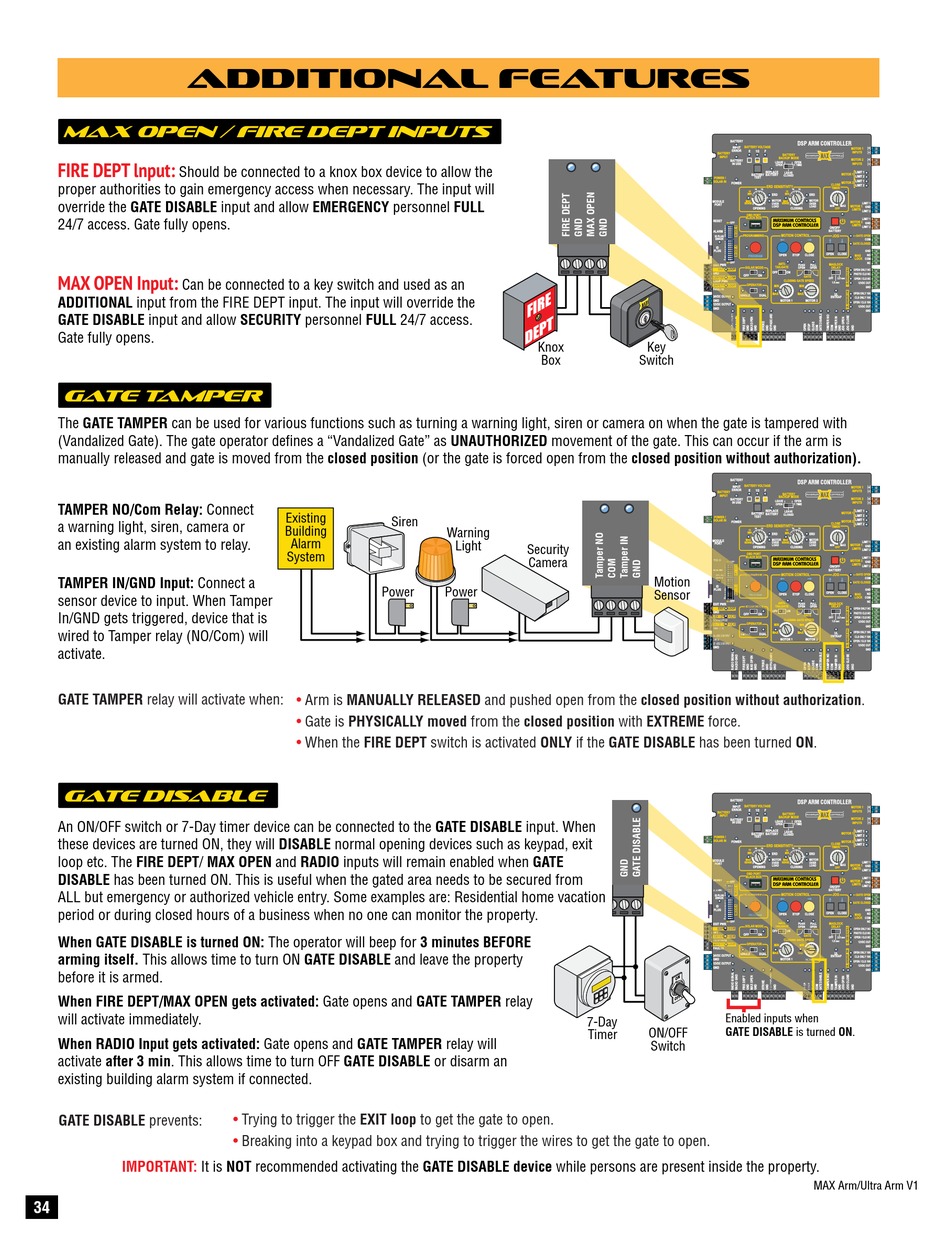

additional features

max open / fire dept inputs

FIRE DEPT lnput:
Should be connected to a knox box device to allow the
proper authorities to gain emergency access when necessary. The input will
override the GATE DISABLE input and allow EMERGENCY personnel FULL
24/7 access. Gate fully opens.
MAX OPEN Input:
Can be connected to a key switch and used as an
ADDITIONAL input from the FIRE DEPT input. The input will override the
GATE DISABLE input and allow SECURITY personnel FULL 24/7 access.
Gate fully opens.

Gate Tamper

The GATE TAMPER can be used for various functions such as turning a warning light, siren or camera on when the gate is tampered with
(Vandalized Gate). The gate operator defines a "Vandalized Gate" as UNAUTHORIZED movement of the gate. This can occur if the arm is
manually released and gate is moved from the closed position (or the gate is forced open from the closed position without authorization).
TAMPER NO/Com Relay: Connect
a warning light, siren, camera or
an existing alarm system to relay.
TAMPER IN/GND Input: Connect a
sensor device to input. When Tamper
In/GND gets triggered, device that is
wired to Tamper relay (NO/Com) will
activate.
GATE TAMPER relay will activate when:

gate disable

An ON/OFF switch or 7-Day timer device can be connected to the GATE DISABLE input. When
these devices are turned ON, they will DISABLE normal opening devices such as keypad, exit
loop etc. The FIRE DEPT/ MAX OPEN and RADIO inputs will remain enabled when GATE
DISABLE has been turned ON. This is useful when the gated area needs to be secured from
ALL but emergency or authorized vehicle entry. Some examples are: Residential home vacation
period or during closed hours of a business when no one can monitor the property.
When GATE DISABLE is turned ON: The operator will beep for 3 minutes BEFORE
arming itself. This allows time to turn ON GATE DISABLE and leave the property
before it is armed.
When FIRE DEPT/MAX OPEN gets activated: Gate opens and GATE TAMPER relay
will activate immediately.
When RADIO Input gets activated: Gate opens and GATE TAMPER relay will
activate after 3 min. This allows time to turn OFF GATE DISABLE or disarm an
existing building alarm system if connected.
GATE DISABLE prevents:
IMPORTANT: It is NOT recommended activating the GATE DISABLE device while persons are present inside the property.
34
Existing
Siren
Building
Alarm
System
Power
• Arm is MANUALLY RELEASED and pushed open from the closed position without authorization.
• Gate is PHYSICALLY moved from the closed position with EXTREME force.
• When the FIRE DEPT switch is activated ONLY if the GATE DISABLE has been turned ON.
• Trying to trigger the EXIT loop to get the gate to open.
• Breaking into a keypad box and trying to trigger the wires to get the gate to open.
Knox
Box
Warning
Light
Security
Camera
Power
7-Day
Timer
BATTERY
DSP ARM CONTROLLER
BATTERY VOLTAGE
INPUT
ERROR E 1/2 F
BATTERY
BATTERY
INPUT
BACKUP MODE
BATTERY
LEAVE OPEN
IN USE
OPEN 1 TIME
REPLACE
LEAVE
BATTERY BATTERY
CLOSED
POWER / TEST
SOLAR IN
POWER
ERD SENSITIVITY
14 12 14 12
16 16
MIN ERD MIN ERD
1 9 1 9
MOTOR MOTOR
MODULE MAX MAX
SENSE OVER SENSE OVER
PORT 3 7 3 7
LOAD LOAD
OPENING CLOSING
OBD PORT
BLACK BOX
MAXIMUM CONTROLS
RESET
OFF
DSP ARM CONTROLLER
1
2
ALARM 3
4
5 MOTION CONTROL
ID PLUG PROGRAMMING
6
ERROR
1
2
3
ID
4
PLUG 5
6
7 OPEN STOP CLOSE
PROGRAM
8
9
10
OFF
ANTI-
EXIT PWR EXIT P PUSH PULL
TAILGATE
SOLAR MODE OPEN OPEN
EXIT EXIT LOOP
OFF ON
GND GND
OFF ON
GATE
CENTER CENTER LOOP LOO
CLOSING GATE SPEED
LOOP PWR LOOP PWR
OPERATOR
SAFETY SAFETY LOOP LOOP MIN
MIN
FAULTS FAULTS
MAX MAX
SINGLE SINGLE DUAL
24VDC OUTPUT UTPUT
GND MOTOR 1 MOTOR 2
12VDC OUTPUT
GND
Key
Switch
BATTERY
DSP ARM CONTROLLER
BATTERY VOLTAGE
INPUT
ERROR E 1/2 F
BATTERY
BATTERY
INPUT
BACKUP MODE
BATTERY
LEAVE OPEN
IN USE
OPEN 1 TIME
REPLACE
LEAVE
BATTERY BATTERY
CLOSED
POWER / TEST
SOLAR IN
POWER
ERD SENSITIVITY
14 12 14 12
16 16
MIN ERD MIN ERD
1 9 1 9
MOTOR MOTOR
MODULE MAX MAX
SENSE OVER SENSE OVER
PORT 3 7 3 7
LOAD LOAD
OPENING CLOSING
OBD PORT
BLACK BOX
MAXIMUM CONTROLS
DSP ARM CONTROLLER
MOTION CONTROL
Motion
ID
Sensor
PLUG 5
6
7 OPEN STOP CLOSE
8
9
10
OFF
ANTI- ANTI-
PUSH PULL
EXIT PWR
TAILGATE TAILGATE OPEN OPEN
EXIT LOOP
OFF OFF ON ON
GND
OFF ON
GATE GA
LOOP
CLOSING GATE SPEED CLOSING GATE SPEE
OPERATOR MIN MIN
MIN
MAX
MAX
DUAL
MOTOR 1 MOTOR 2
GND
BATTERY
DSP ARM CONTROLLER
BATTERY VOLTAGE
INPUT
ERROR E 1/2 F
BATTERY
BATTERY
INPUT
BACKUP MODE
BATTERY
LEAVE OPEN
IN USE
OPEN 1 TIME
REPLACE
LEAVE
BATTERY BATTERY
CLOSED
POWER / TEST
SOLAR IN
POWER
ERD SENSITIVITY
14 12 14 12
16 16
MIN ERD MIN ERD
1 9 1 9
MODULE MO MAX MOTOR MAX MOTOR
SENSE OVER SENSE OVER
POR PORT 3 7 7
3
LOAD LOAD
OPENING CLOSING
OBD PORT
BLACK BOX
MAXIMUM CONTROLS
RESET RESET
OFF OFF
DSP ARM CONTROLLER
1 1
5 MOTION CONTROL
ID PLUG 6
ERROR
1
2
3
ID
4
PLUG 5
6
7 OPEN STOP CLOSE
8
9
10
OFF
ANTI- ANTI- PUSH PULL
EXIT PWR
SOLAR MODE TAILGATE TAILGATE OPEN OPEN
LOOP
OFF F ON ON
OFF ON
GATE
CLOSING GATE SPEED OSING GATE S
SAFETY SAFETY LOOP LOOP OPERATOR MIN MIN
MIN
FAULTS LTS
MAX
SINGLE SINGLE DUAL
24VDC OUTPUT
GND MOTOR 1
12VDC OUTPUT
GND
O N
F
O F
Enabled inputs when
ON/OFF GATE DISABLE is turned ON.
Switch
MAX Arm/Ultra Arm V1
