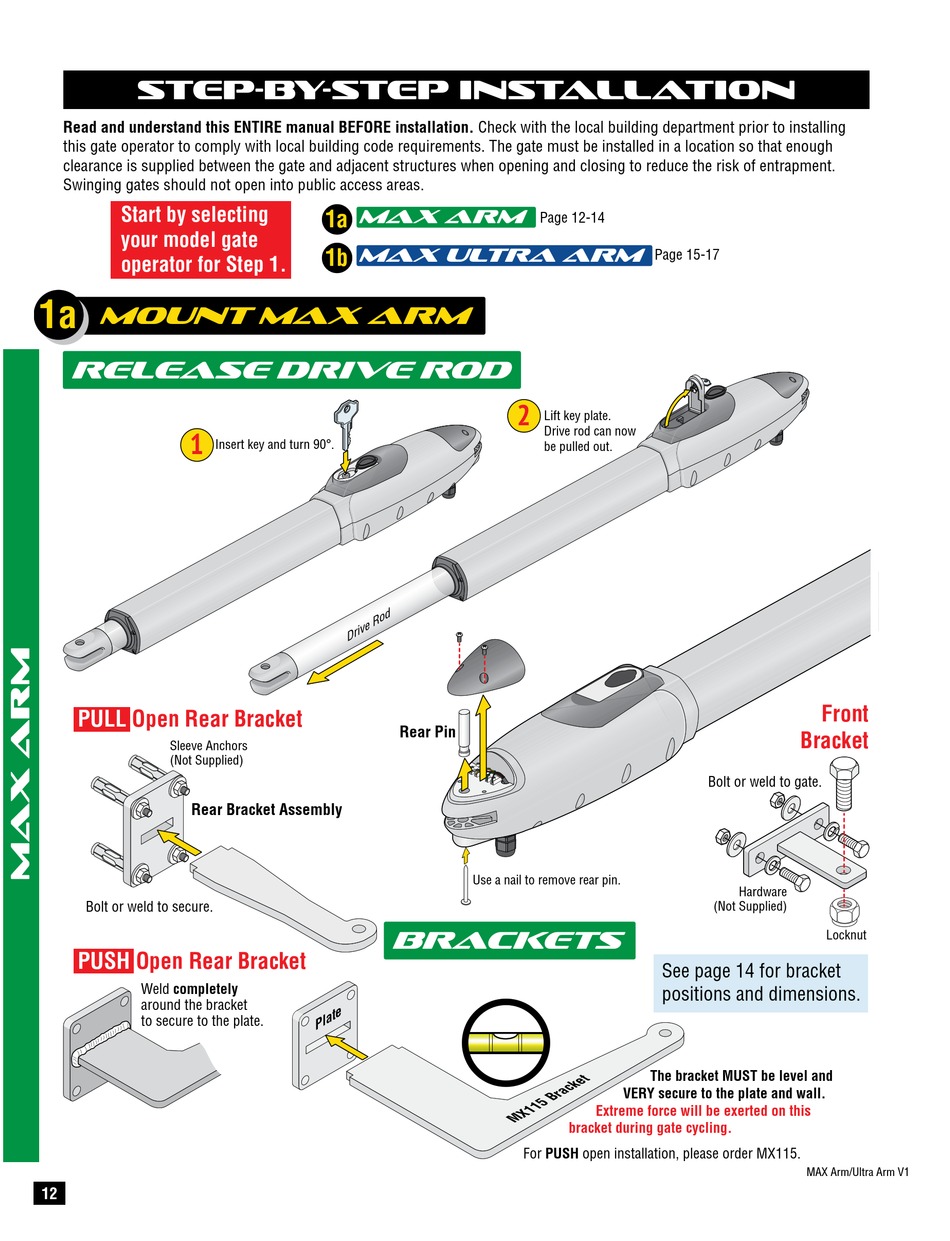

Step-By-Step Installation; Mount Arm; 1A Max Arm; 1B Max Ultra Arm - Maximum Controls MAX ARM Installation And Owner's Manual

step-by-step installation

Read and understand this ENTIRE manual BEFORE installation. Check with the local building department prior to installing
this gate operator to comply with local building code requirements. The gate must be installed in a location so that enough
clearance is supplied between the gate and adjacent structures when opening and closing to reduce the risk of entrapment.
Swinging gates should not open into public access areas.
Start by selecting
your model gate
operator for Step 1.
1a
mount max arm
release drive rod
1
Insert key and turn 90°.
PULL Open Rear Bracket
Sleeve Anchors
(Not Supplied)
Rear Bracket Assembly
Bolt or weld to secure.
PUSH Open Rear Bracket
Weld completely
around the bracket
to secure to the plate.
12
1a
max arm
1b
max ultra arm
d
R o
v e
D r i
Rear Pin
Use a nail to remove rear pin.
brackets
t e
P l a
Page 12-14
Page 15-17
2
Lift key plate.
Drive rod can now
be pulled out.
See page 14 for bracket
positions and dimensions.
The bracket MUST be level and
VERY secure to the plate and wall.
Extreme force will be exerted on this
bracket during gate cycling.
For PUSH open installation, please order MX115.
Front
Bracket
Bolt or weld to gate.
Hardware
(Not Supplied)
Locknut
