Open Ultra Install - Maximum Controls MAX ARM Installation And Owner's Manual

push push

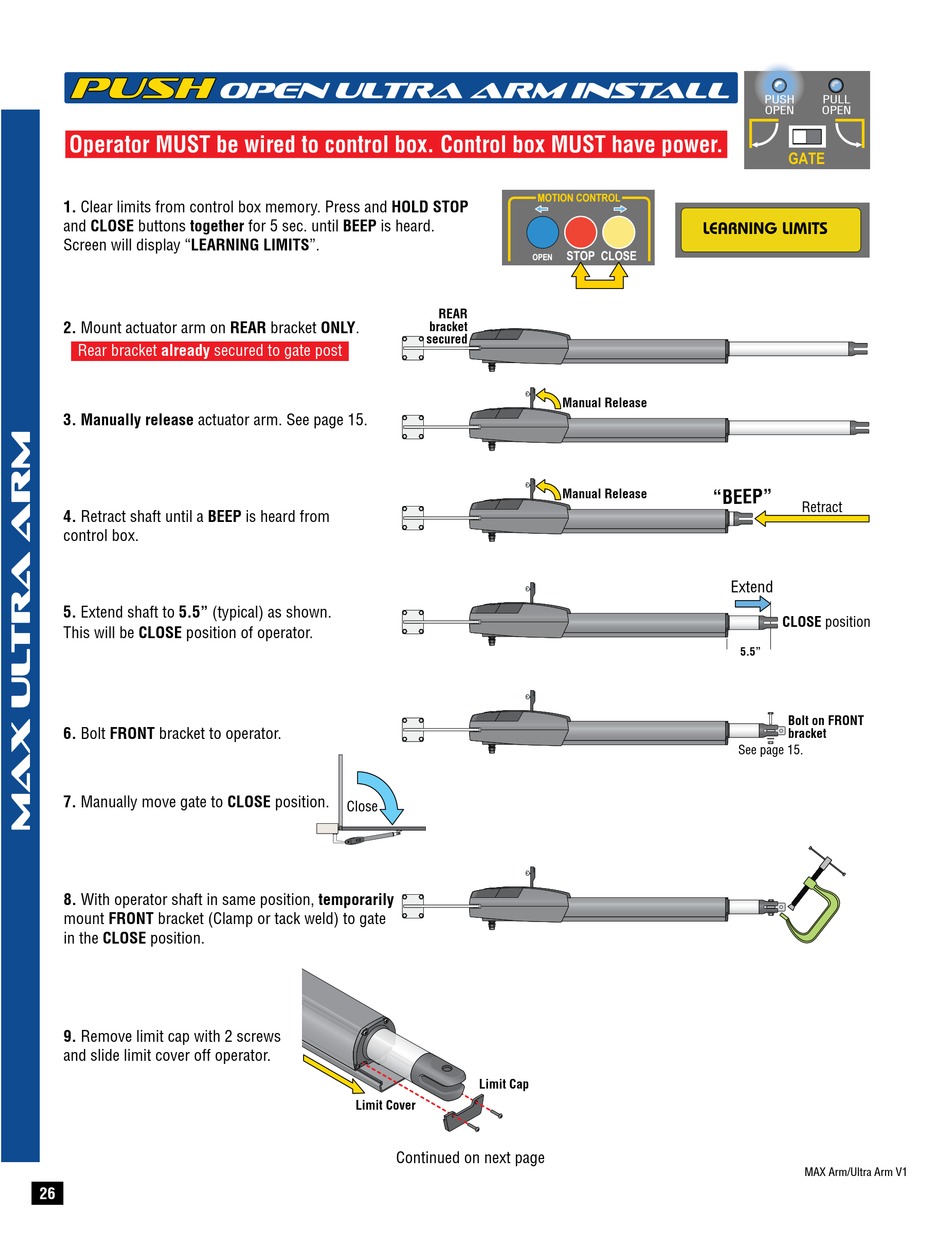

open ultra arm install
Operator MUST be wired to control box. Control box MUST have power.
1. Clear limits from control box memory. Press and HOLD STOP
and CLOSE buttons together for 5 sec. until BEEP is heard.
Screen will display "LEARNING LIMITS".
2. Mount actuator arm on REAR bracket ONLY.
Rear bracket already secured to gate post
3. Manually release actuator arm. See page 15.
4. Retract shaft until a BEEP is heard from
control box.
5. Extend shaft to 5.5" (typical) as shown.
This will be CLOSE position of operator.
6. Bolt FRONT bracket to operator.
7. Manually move gate to CLOSE position.
8. With operator shaft in same position, temporarily
mount FRONT bracket (Clamp or tack weld) to gate
in the CLOSE position.
9. Remove limit cap with 2 screws
and slide limit cover off operator.
26
REAR
bracket
secured
Close
Limit Cap
Limit Cover
Continued on next page
MOTION CONTROL
LEARNING LIMITS
STOP CLOSE
OPEN
Manual Release
Manual Release
PUSH PULL
OPEN OPEN
GATE
Retract
Extend
CLOSE position
5.5"
Bolt on FRONT
bracket
See page 15.
MAX Arm/Ultra Arm V1
