Open Max Install - Maximum Controls MAX ARM Installation And Owner's Manual

push

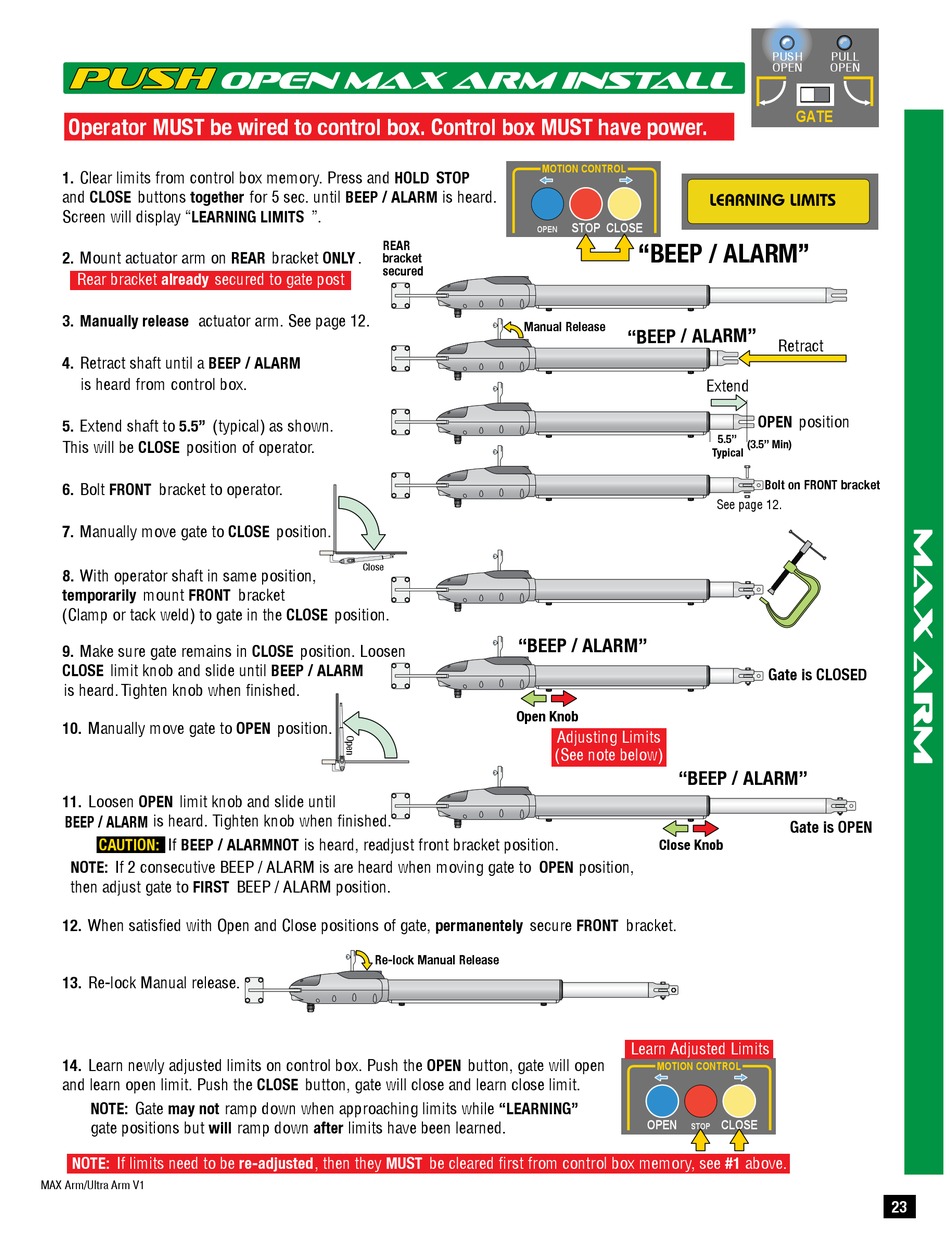

open max arm install
Operator MUST be wired to control box. Control box MUST have power.
1. Clear limits from control box memory. Press and HOLD STOP
and CLOSE buttons together for 5 sec. until BEEP / ALARM is heard.
Screen will display "LEARNING LIMITS ".
2. Mount actuator arm on REAR bracket ONLY .
Rear bracket already secured to gate post
3. Manually release actuator arm. See page 12.
4. Retract shaft until a BEEP / ALARM
is heard from control box.
5. Extend shaft to 5.5" (typical) as shown.
This will be CLOSE position of operator.
6. Bolt FRONT bracket to operator.
7. Manually move gate to CLOSE position.
8. With operator shaft in same position,
temporarily mount FRONT bracket
(Clamp or tack weld) to gate in the CLOSE position.
9. Make sure gate remains in CLOSE position. Loosen
CLOSE limit knob and slide until BEEP / ALARM
is heard. Tighten knob when finished.
10. Manually move gate to OPEN position.
11. Loosen OPEN limit knob and slide until
BEEP / ALARM is heard. Tighten knob when finished.
CAUTION: If BEEP / ALARMNOT is heard, readjust front bracket position.
NOTE: If 2 consecutive BEEP / ALARM is are heard when moving gate to OPEN position,
then adjust gate to FIRST BEEP / ALARM position.
12. When satisfied with Open and Close positions of gate, permanentely secure FRONT bracket.
13. Re-lock Manual release.
14. Learn newly adjusted limits on control box. Push the OPEN button, gate will open
and learn open limit. Push the CLOSE button, gate will close and learn close limit.
NOTE: Gate may not ramp down when approaching limits while "LEARNING"
gate positions but will ramp down after limits have been learned.
NOTE: If limits need to be re-adjusted, then they MUST be cleared first from control box memory, see #1 above.
