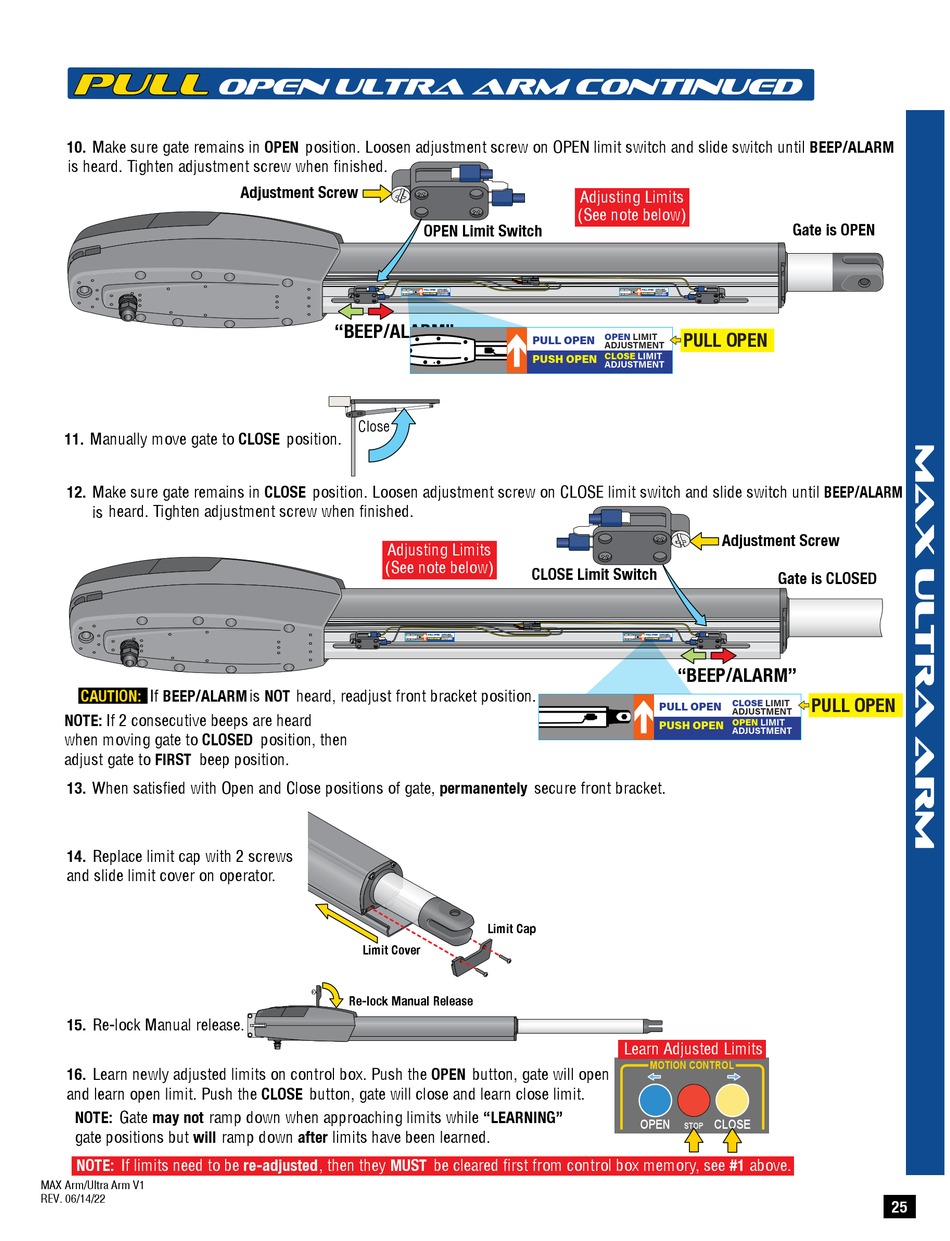

Maximum Controls MAX ARM Installation And Owner's Manual page 27

pull
open ultra arm continued
10. Make sure gate remains in OPEN position. Loosen adjustment screw on OPEN limit switch and slide switch until BEEP/ALARM
is heard. Tighten adjustment screw when finished.
11. Manually move gate to CLOSE position.
12. Make sure gate remains in CLOSE position. Loosen adjustment screw on CLOSE limit switch and slide switch until BEEP/ALARM
is heard. Tighten adjustment screw when finished.
CAUTION: If BEEP/ALARM is NOT heard, readjust front bracket position.
NOTE: If 2 consecutive beeps are heard
when moving gate to CLOSED position, then
adjust gate to FIRST beep position.
13. When satisfied with Open and Close positions of gate, permanentely secure front bracket.
14. Replace limit cap with 2 screws
and slide limit cover on operator.
15. Re-lock Manual release.
16. Learn newly adjusted limits on control box. Push the OPEN button, gate will open
and learn open limit. Push the CLOSE button, gate will close and learn close limit.
NOTE: Gate may not ramp down when approaching limits while "LEARNING"
gate positions but will ramp down after limits have been learned.
NOTE: If limits need to be re-adjusted, then they MUST be cleared first from control box memory, see #1 above.
MAX Arm/Ultra Arm V1
REV. 06/14/22
Adjustment Screw
Limit Switch
"BEEP/ALARM"
5"
127mm
Max = 60.3" (+/-.39") (1531 mm (+/- 10 mm)
7.35"
186mm
5.07"
128mm
2
Close
Adjusting Limits
(See note below)
Limit
Switch
5"
127mm
Max = 60.3" (+/-.39") (1531 mm (+/- 10 mm)
7.35"
186mm
5"
5.07"
128mm
127mm
2
7.35"
186mm
5.07"
128mm
2
Limit Cover
Re-lock Manual Release
5"
127mm
Max = 60.3" (+/-.39") (1531 mm (+/- 10 mm)
7.35"
186mm
5.07"
128mm
Adjusting Limits
(See note below)
OPEN Limit Switch
PULL OPEN OPEN LIMIT
ADJUSTMENT
PUSH OPEN CLOSE LIMIT
ADJUSTMENT
Switch Limit
PULL OPEN
PUSH OPEN
5"
127mm
7.35"
186mm
5.07"
128mm
MAX Ultra Arm V1
2
Limit Limit
Switch Switch
CLOSE Limit Switch
PULL OPEN OPEN LIMIT
ADJUSTMENT
PUSH OPEN CLOSE LIMIT
ADJUSTMENT
Limit
Switch
127mm
186mm
5.07"
128mm
MAX Ultra Arm V1
2
Max = 60.3" (+/-.39") (1531 mm (+/- 10 mm)
Limit Limit
Switch Switch
Limit Cap
PULL OPEN OPEN LIMIT
ADJUSTMENT
PUSH OPEN CLOSE LIMIT
ADJUSTMENT
Switch Limit Switch Limit
PULL OPEN
OPEN LIMIT
ADJUSTMENT
CLOSE LIMIT
ADJUSTMENT
Max = 60.3" (+/-.39") (1531 mm (+/- 10 mm)
MAX Ultra Arm V1
Adjustment Screw
Gate is CLOSED
PULL OPEN OPEN LIMIT
ADJUSTMENT
PUSH OPEN CLOSE LIMIT
ADJUSTMENT
Limit Limit
Switch Switch "BEEP/ALARM"
CLOSE LIMIT
PULL OPEN
ADJUSTMENT
5"
Max = 60.3" (+/-.39") (1531 mm (+/- 10 mm)
7.35"
OPEN LIMIT
PUSH OPEN
ADJUSTMENT
MAX Ultra Arm V1
MAX Ultra Arm V1
Learn Adjusted Limits
MOTION CONTROL
OPEN CLOSE
STOP
MAX Ultra Arm V1
Gate is OPEN
PULL OPEN
25
