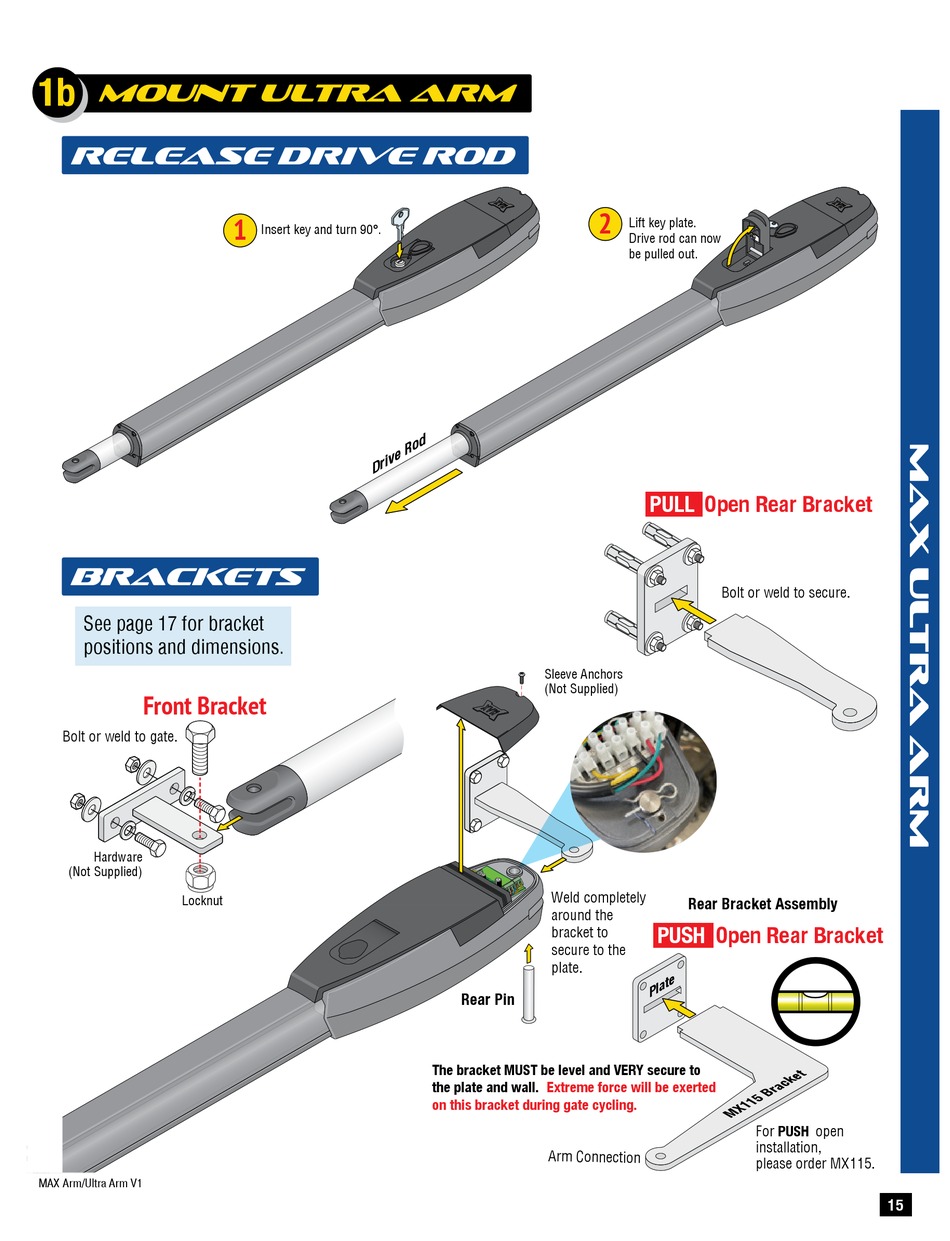

1b
mount ultra arm
release drive rod
brackets
See page 17 for bracket
positions and dimensions.
Front Bracket
Bolt or weld to gate.
Hardware
(Not Supplied)
Locknut
MAX Arm/Ultra Arm V1
1
Insert key and turn 90°.
R o
v e
D r i
2
d
Sleeve Anchors
(Not Supplied)
Weld completely
around the
bracket to
secure to the
plate.
Rear Pin
The bracket MUST be level and VERY secure to
the plate and wall. Extreme force will be exerted
on this bracket during gate cycling.
Lift key plate.
Drive rod can now
be pulled out.
PULL Open Rear Bracket
Bolt or weld to secure.
Rear Bracket Assembly
PUSH Open Rear Bracket
t e
P l a
For PUSH open
installation,
please order MX115.
15
