Open Ultra Install - Maximum Controls MAX ARM Installation And Owner's Manual

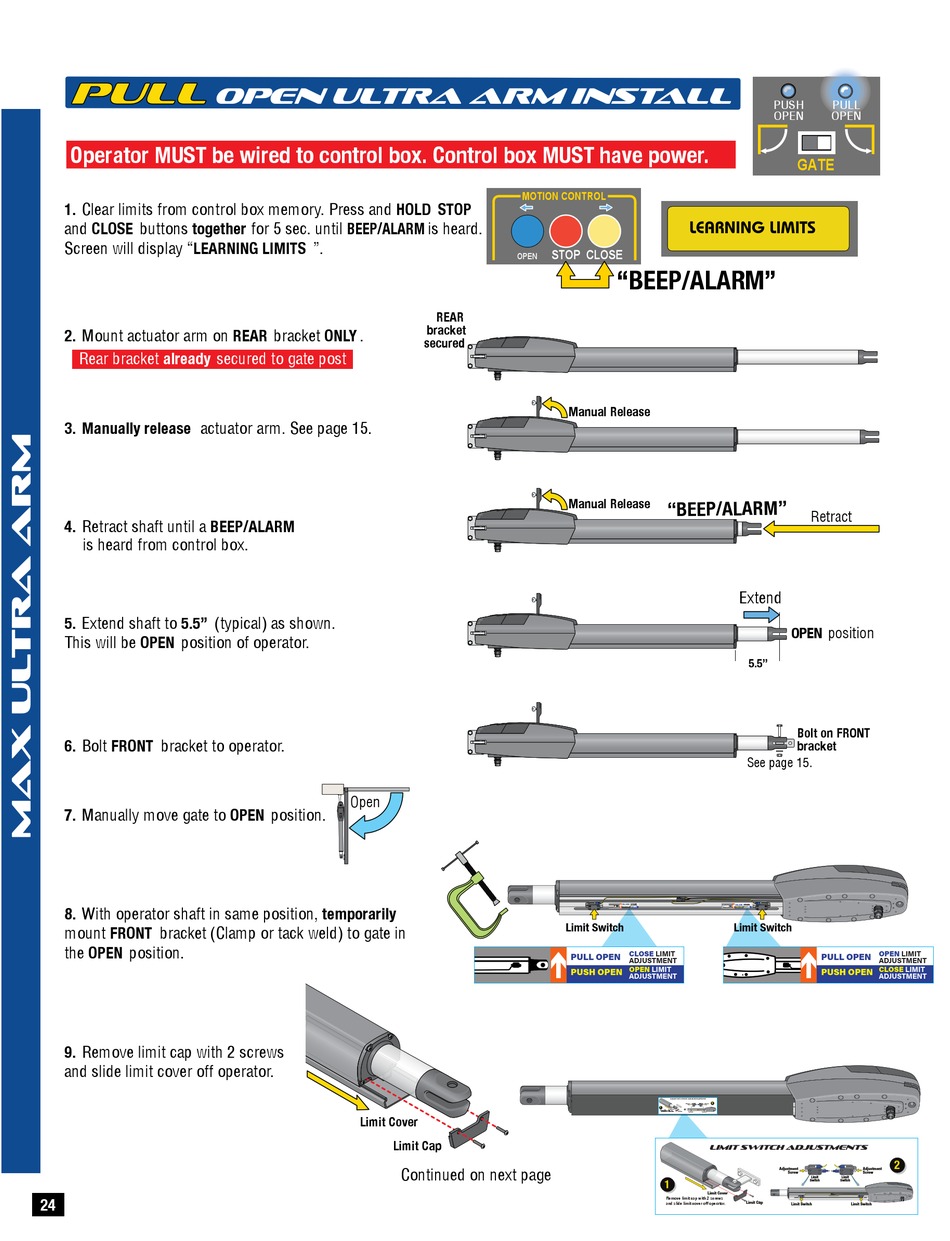

pull
open ultra arm install
Operator MUST be wired to control box. Control box MUST have power.
1. Clear limits from control box memory. Press and HOLD STOP
and CLOSE buttons together for 5 sec. until BEEP/ALARM is heard.
Screen will display "LEARNING LIMITS ".
2. Mount actuator arm on REAR bracket ONLY .
Rear bracket already secured to gate post
3. Manually release actuator arm. See page 15.
4. Retract shaft until a BEEP/ALARM
is heard from control box.
5. Extend shaft to 5.5" (typical) as shown.
This will be OPEN position of operator.
6. Bolt FRONT bracket to operator.
7. Manually move gate to OPEN position.
8. With operator shaft in same position, temporarily
mount FRONT bracket (Clamp or tack weld) to gate in
the OPEN position.
9. Remove limit cap with 2 screws
and slide limit cover off operator.
24
MOTION CONTROL
OPEN
REAR
bracket
secured
Open
Limit Limit
Switch Switch
Limit Cover
Limit Cap
Continued on next page
LEARNING LIMITS
STOP CLOSE
"BEEP/ALARM"
Manual Release
Manual Release
PULL OPEN CLOSE LIMIT
ADJUSTMENT
PUSH OPEN OPEN LIMIT
ADJUSTMENT
Limit
Limit Limit Switch
Limit Switch Switch Switch
127mm 5"
CLOSE LIMIT
PULL OPEN Max = 60.3" (+/-.39") (1531 mm (+/- 10 mm)
5"
127mm 186mm 7.35"
Max = 60.3" (+/-.39") (1531 mm (+/- 10 mm)
ADJUSTMENT 5.07"
128mm
7.35" 186mm
5.07" 2
128mm
OPEN LIMIT
PUSH OPEN MAX Ultra Arm V1
2
ADJUSTMENT
limit switch adjustments
2
Adjustment Adjustment
Screw Screw
1 Switch Limit Switch Limit
Limit Cover
Remove limit cap with 2 screws
and slide limit cover off operator. Limit Cap
Limit Switch Limit Switch
limit switch adjustments
1
Limit Cover
Remove limit cap with 2 screws
and slide limit cover off operator.
PUSH PULL
OPEN OPEN
GATE
Retract
Extend
OPEN position
5.5"
Bolt on FRONT
bracket
See page 15.
PULL OPEN OPEN LIMIT
ADJUSTMENT
CLOSE LIMIT
PUSH OPEN ADJUSTMENT
Limit
Switch
Limit Switch
OPEN LIMIT
PULL OPEN
ADJUSTMENT
MAX Ultra Arm V1
CLOSE LIMIT
PUSH OPEN
ADJUSTMENT
Limit Limit
Switch Switch
2
Adjustment Adjustment
Screw Screw
Limit Limit
MAX Arm/Ultra Arm V1
Switch Switch
rev 06/14/22
Limit Cap
Limit Switch Limit Switch
