Emx Irb-Mon (Single Gate) - Maximum Controls MAX ARM Installation And Owner's Manual

Blue Transmitter (TX) / Red Receiver (RX) Boards
emx irb-mon
Transmitter
(TX)
CLOSING direction Thru-Beam
To Control Box
12VDC OUT Input
Transmitter (TX)
TX
POWER INPUT
TRANSMITTER
BOARD (TX)
OPEN ONLY
P P P P PHOTO CLS
OPEN/CLS
12VDC OUT
OPEN ONLY
CLS ONLY
OPEN/CLS
12VDC OUT
DSP Arm Controller
50

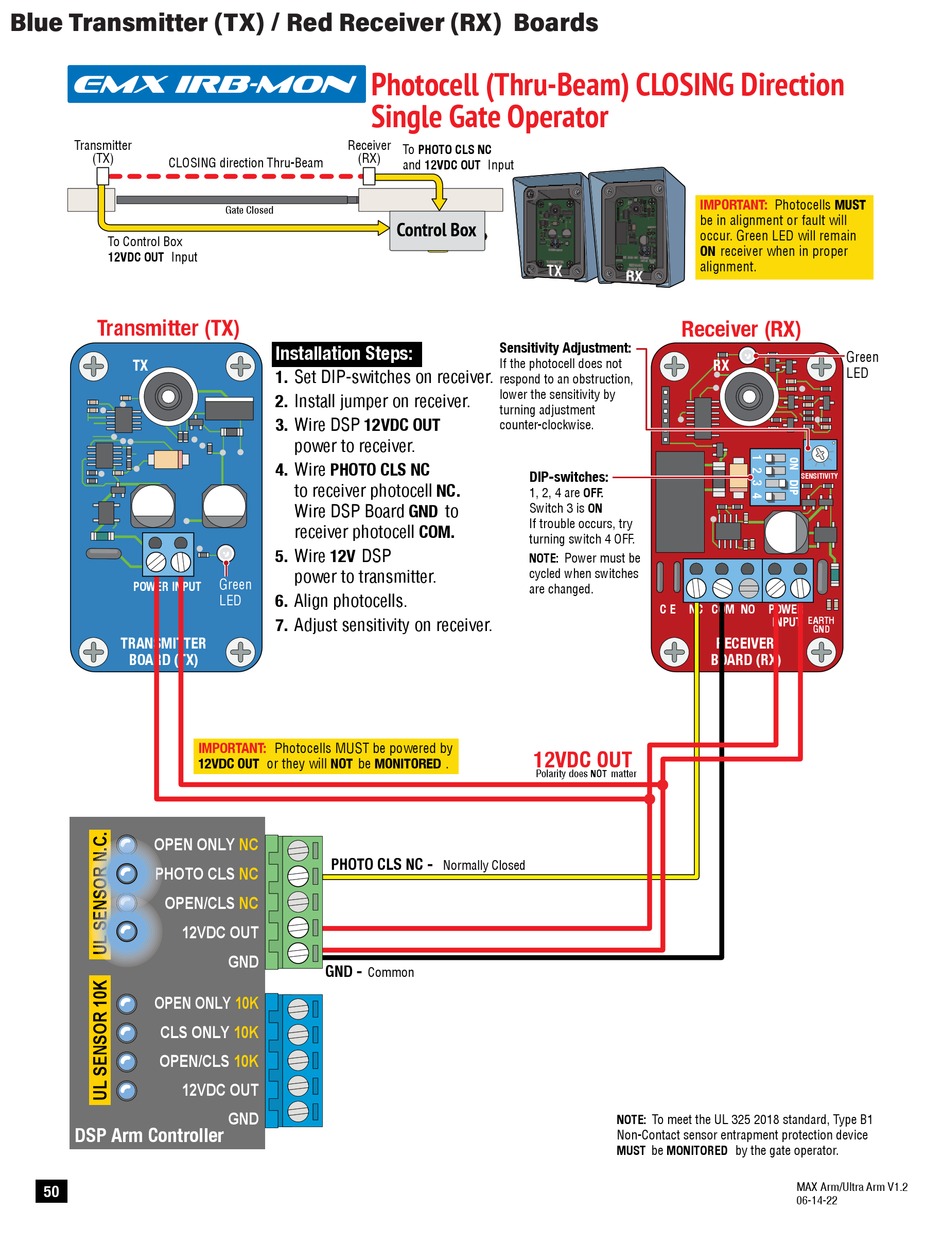

Photocell (Thru-Beam) CLOSING Direction
Single Gate Operator
Receiver
(RX)
Gate Closed
Installation Steps:
1. Set DIP-switches on receiver.
2. Install jumper on receiver.
3. Wire DSP 12VDC OUT
power to receiver.
4. Wire PHOTO CLS NC
to receiver photocell NC.
Wire DSP Board GND to
receiver photocell COM.
5. Wire 12V DSP
power to transmitter.
Green
6. Align photocells.
LED
7. Adjust sensitivity on receiver.
IMPORTANT:
Photocells MUST be powered by
12VDC OUT or they will NOT be MONITORED .
NC
PHOTO CLS NC -
NC
NC
GND
GND -
Common
10K
10K
10K
GND
To PHOTO CLS NC
and 12VDC OUT Input
Control Box
T X
Sensitivity Adjustment:
If the photocell does not
respond to an obstruction,
lower the sensitivity by
turning adjustment
counter-clockwise.
DIP-switches:
1, 2, 4 are OFF.
Switch 3 is ON
If trouble occurs, try
turning switch 4 OFF.
NOTE: Power must be
cycled when switches
are changed.
12VDC OUT
Polarity does NOT matter
Normally Closed
IMPORTANT: Photocells MUST
be in alignment or fault will
occur. Green LED will remain
ON receiver when in proper
alignment.
R X
Receiver (RX)
RX
C E NC COM NO POWER
INPUT
RECEIVER
BOARD (RX)
NOTE: To meet the UL 325 2018 standard, Type B1
Non-Contact sensor entrapment protection device
MUST be MONITORED by the gate operator.
Green
LED
SENSITIVITY
EARTH
GND
