Bluetooth Configuration - Javad HPT404BT Operator's Manual

3. Start ModemVU. Select the HPT404BT and than the COM port and click Ok (see "Configuring
HPT404BT with GSM" on page 18).
4. Click the Serial Interface &Tools tab;
5. Click Download Firmware button
6. Open the required firmware folder. Select the .xmd file and click OK.
7. Wait until the new firmware version process will be complete.
8. Click FileDisconnect, then FileExit to quit ModemVU.

8. Bluetooth Configuration

Bluetooth module of HPT404BT can be configured in the BT tab (Figure 2-1).
Use the BT drop down list to switch on/off the module. The PIN code can be inserted in the PIN code
field. Click Apply to save settings and apply configurations.
www.javad.com

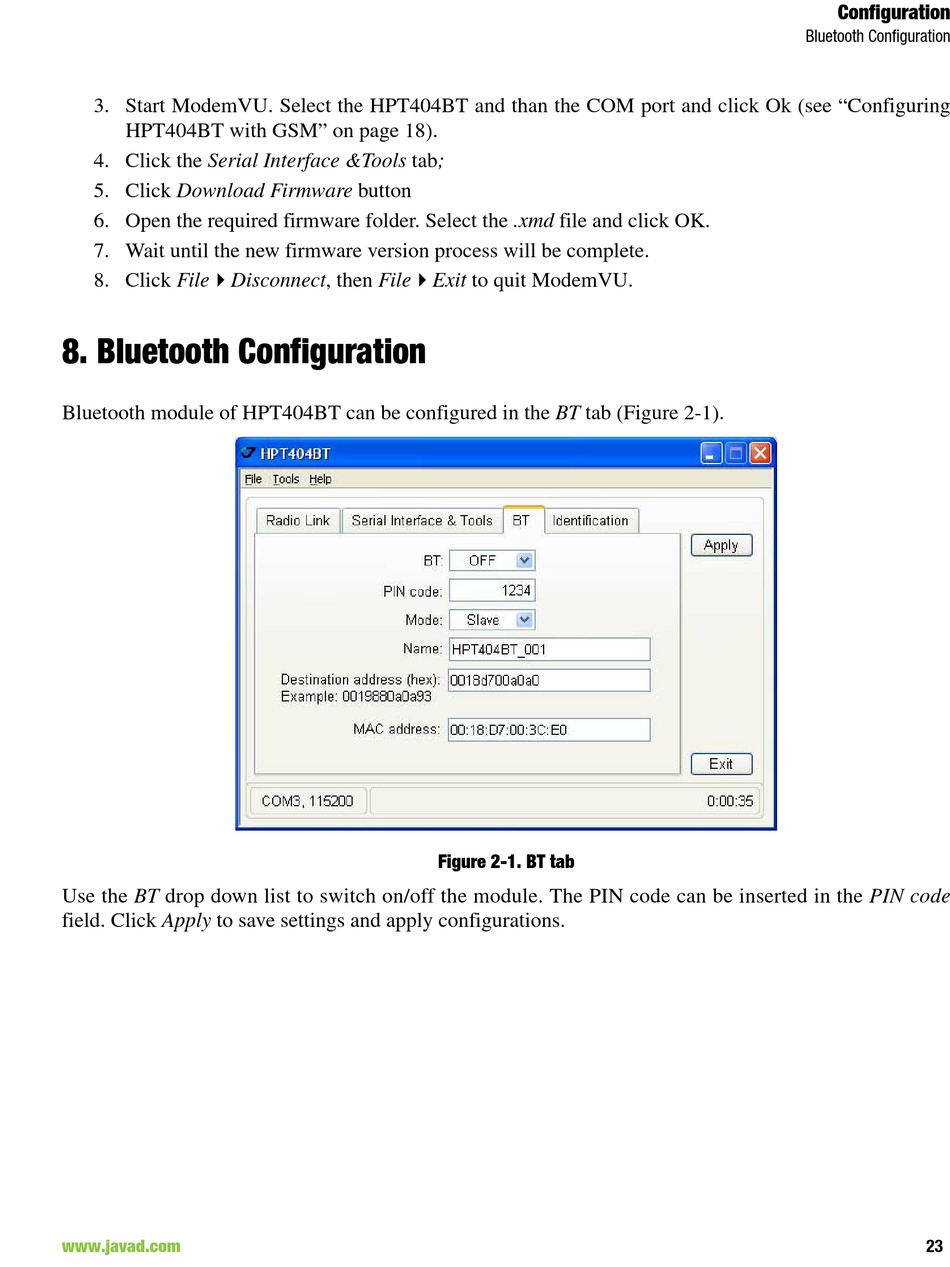

Figure 2-1. BT tab
Configuration
Bluetooth Configuration
23
