Configuration

Configuring HPT404BT with GSM

HPT404BT and external device connection procedure varies slightly depending on the type of external
device used. In general, the connection procedure is as follows:
Note:
Refer to your Bluetooth
information.
1. Turn on a Bluetooth
mode is Master; the modem's Bluetooth
2. Instruct the external device (Master) to search for the modem (Slave).
3. Once the Master device detects the modem, use the procedure described in the external device's
documentation to connect it with the modem.

5.4. Connecting HPT404BT and TRIUMPH-1

Connect the external HPT404BT UHF radio to receiver's port B with cable Accessory Data-Ser cable,
ODU-7/DB15/SAE (6 ft./1,8m), p/n14-578110-02.
Once you have established a connection between the modem and the TRIUMPH-1, you will be able to:
• Configure the modem and its components through receiver;
• Send commands to the modem trough receiver;
• Use ModemVU to load new firmware to the modem
• Transmit/receive GNSS data.
6. Configuring HPT404BT with GSM
Once you have established a connection between the modem and the computer, you will be able to:
• Configure the modem and its components
• Send commands to the modem
• Use ModemVU to load new firmware to the modem.
1. Ensure the SIM-card is installed in HPT404BT with GSM.
2. Connect the modem to PC, power it.
18
®
-enabled external device documentation for more detailed connection
®
-enabled external device and your receiver. The default external device
®
module mode is Slave.
+

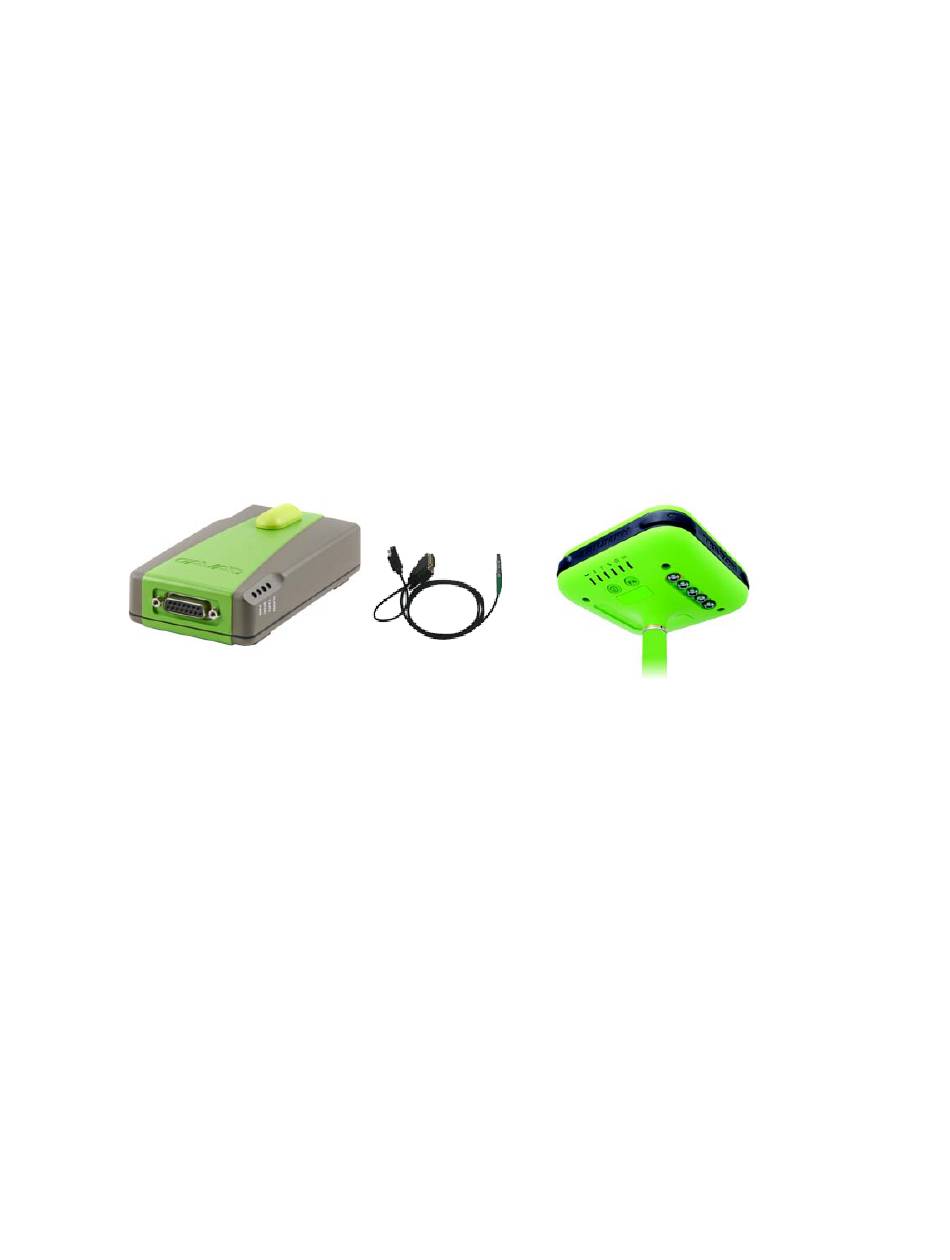

Figure 4. Connecting HPT404BT and TRIUMPH-1
+
