Introduction
Getting Acquainted

1.3. External Antenna and GSM Antenna Connectors

The external antenna connects to the BNC external antenna connector and GSM antenna connects to the
SMA connector which are placed on the back panel of HPT404BT with GSM.
Bluetooth Antenna
GSM Antenna
RF Antenna

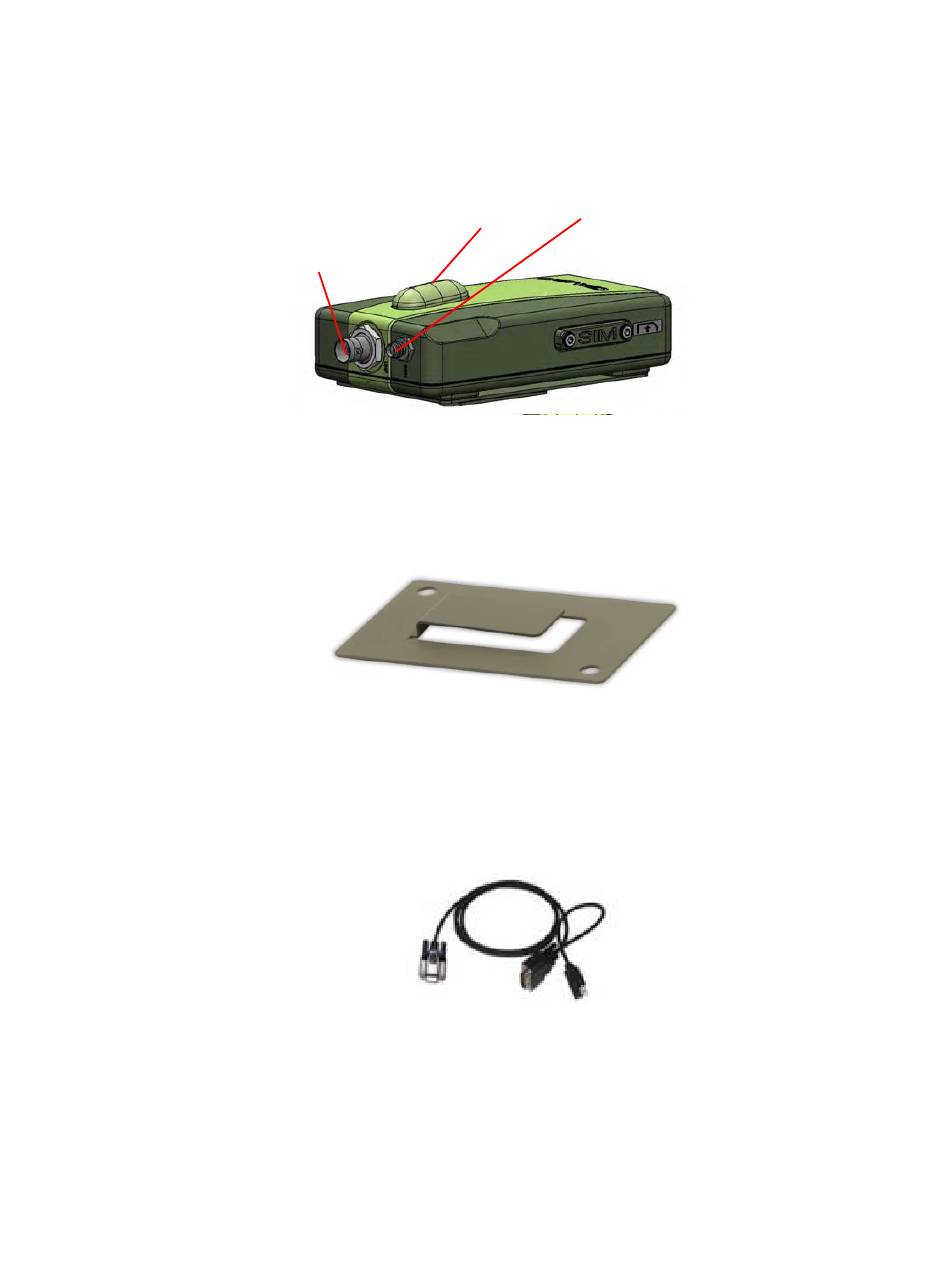

Figure 3. RF and GSM Antenna Connectors

1.4. Mounting Bracket

The mounting bracket (optional) connects the modem to a standard pole/adapter (Figure 4).
Figure 4. Optional mounting bracket (p/n 10-587302-21)

1.5. Cables

The HPT404BT with GSM package includes standard communication and power cable DB9/DB15/SAE
(p/n 14-578110-02) for configuring the modem and providing a power source to the modem.
Figure 5. Cable DB9/DB15/SAE (p/n 14-578110-02)

1.6. Literature

HPT404BT with GSM literature, including manuals and other product information are available on the
JAVAD GNSS website (http://www.JAVAD GNSScom.com):
www.javad.com 11
