Configuration

Loading New Firmware

11. In the Interface tab select Route and click Apply.
12. To switch off this mode, follow the steps:
• In the RTN tab the Mode switch to Disconnect and click Apply;
• In the GSM tab set the Mode to OFF and click Apply.
Use ModemVU to check the firmware version of your HPT404BT.
1. Connect your modem and computer. See "Connecting HPT404BT and Computer" on page 16 for
this procedure.
2. Start ModemVU. Select the HPT404BT and than the COM port and click Ok (see "Configuring
HPT404BT with GSM" on page 18).
3. Click on Identification tab.
This tab lists important information about the hardware accessories and software properties.
4. Click FileDisconnect, then FileExit to quit ModemVU.
7. Loading New Firmware
The modem uses ModemVU to load firmware onto the modem. For more information, refer to the
ModemVU Software Manual, available on the JAVAD GNSS website.
1. Download the new firmware package to your computer.
2. Connect your modem and computer, as described in "Connecting HPT404BT and Computer" on
page 16.
22

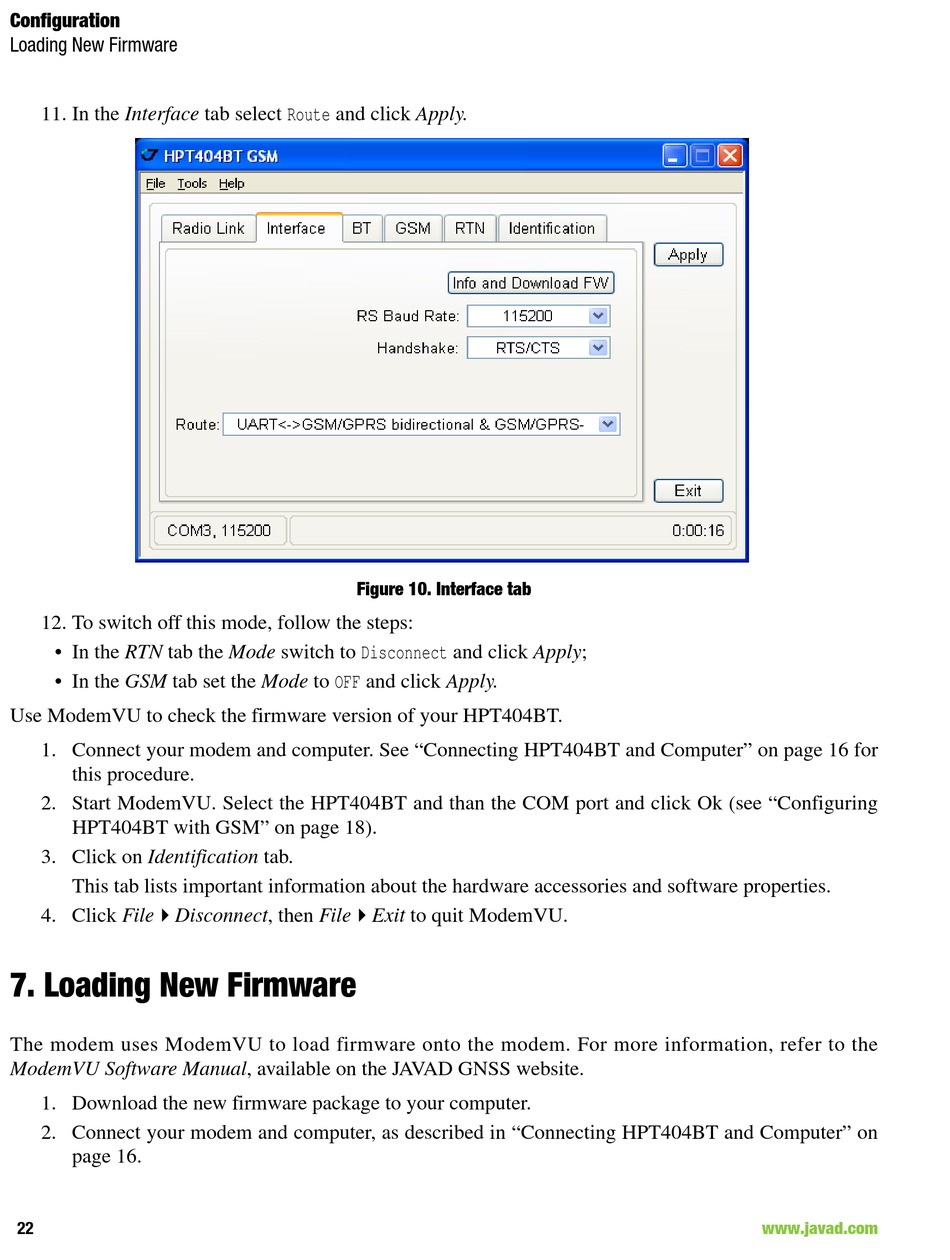

Figure 10. Interface tab
