Serial RS-232C Connector
The RS232 connectors (Figure A-3) are sealed receptacle, 7 pin, ODU p/n G80F1C-T07QC00-0000.
Table A-4 gives the RS-232C cable connector specifications.
www.javad.com

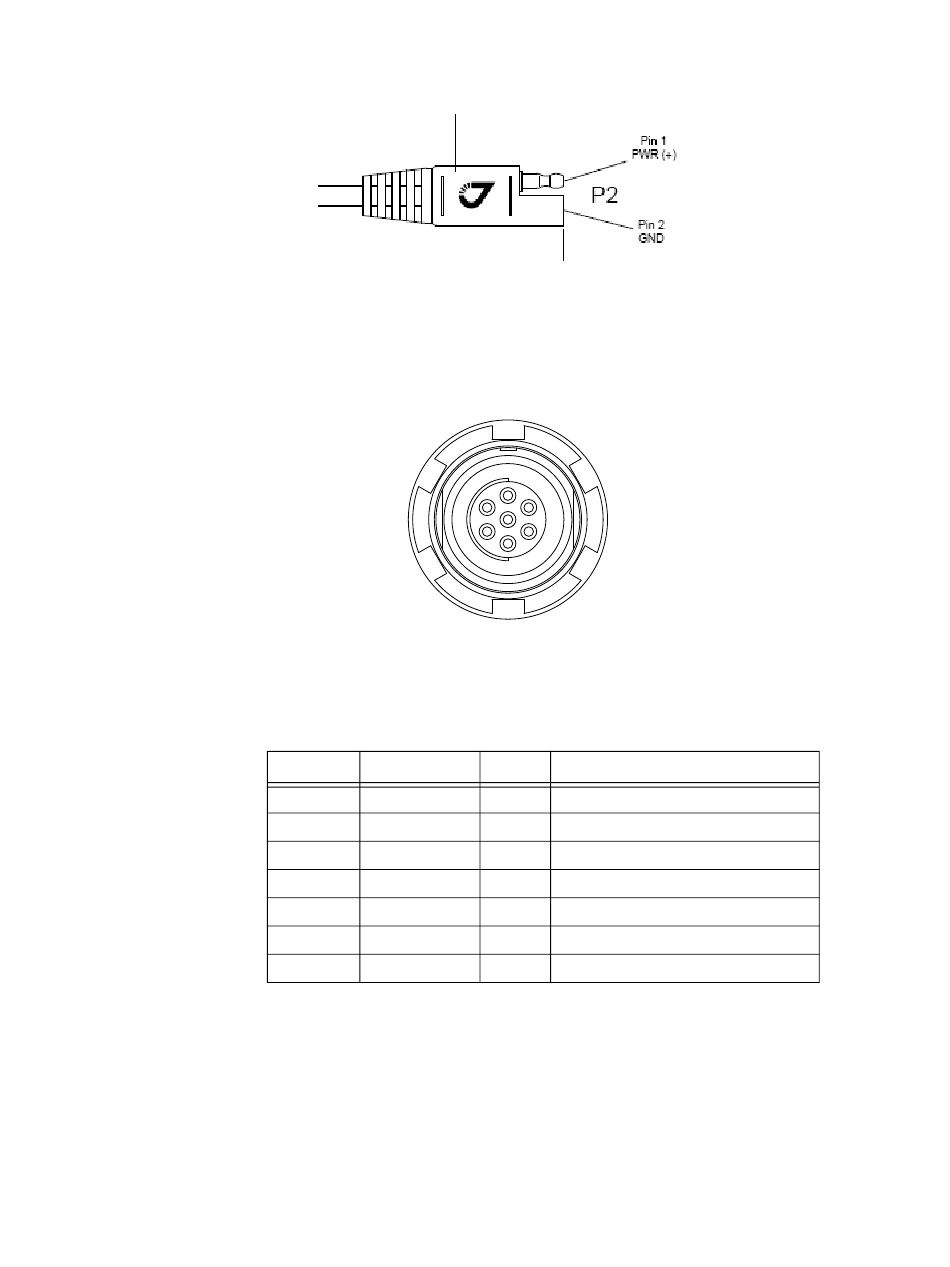

Figure A-2. Polarity of SAE for power cable P/N 14-578101-01
Figure A-3. RS-232C Connector
Table A-4. RS-232C Cable Connector Specifications
Number Signal Name
1 -
2 GND
3 CTS
4 RTS
5 RXD
6 TXD
7
2
3
7
1
4
6
5
Dir
- -
- Signal ground
I Clear to send
O Request to send
I Receive data
O Transmit data
Not used
