• Elevation Mask for Measurements Output (the minimum elevation angle for the satellites whose
data will be put in the receiver files logged when pressing FN).
• Satellites Number Mask for Position computation - Satellites with elevations lower than this mask
will be excluded from position computation.
• File Name Prefix - this setting specifies what prefix will be added to the names of the receiver files
created via MinPad, (i.e., by pressing FN). The prefix can be up to 20 characters long. Default is
log.
• Enable Implicit Management of Specific - enables/disables the management of Implicit Message
Output Period.
Function Key
• TriPad "FN" Button Action - This drop-down list box is used to program how the receiver will
react to clicking FN (i.e., keeping the button depressed for less than one (1) second). In
mode switch mode, clicking FN will toggle between the TriPad's standard and extended
information modes. In occupation mode switch you click FN to get the receiver to insert into the
corresponding log file a message indicating that the occupation type has been changed from static
to kinematic, or vice versa.
• Turn Data Recording on at Startup - enables/disables data recording on at startup,
• Initial Dynamic Mode - specifies the starting occupation type descriptor that will be inserted at the
beginning of each receiver files logged via the TriPad. You select static and kinematic to specify
that the corresponding log file will start with a static and kinematic occupation, respectively.
• Appending data to a specific file - If the new receiver data are to be appended to an existing log
file, enter the desired filename in the Always append to the file edit box. The setting can be up to
twenty characters long.
• Toggle Automatic Rotation Mode - enables/disables Automatic File Rotation Mode.
Automatic File Rotation Mode (AFRM)
Period – specifies the time duration of each of the multiple log files created in AFRM mode.
• Phase – specifies the phase (i.e., constant time shift) of the multiple log files created in AFRM
mode.
www.javad.com

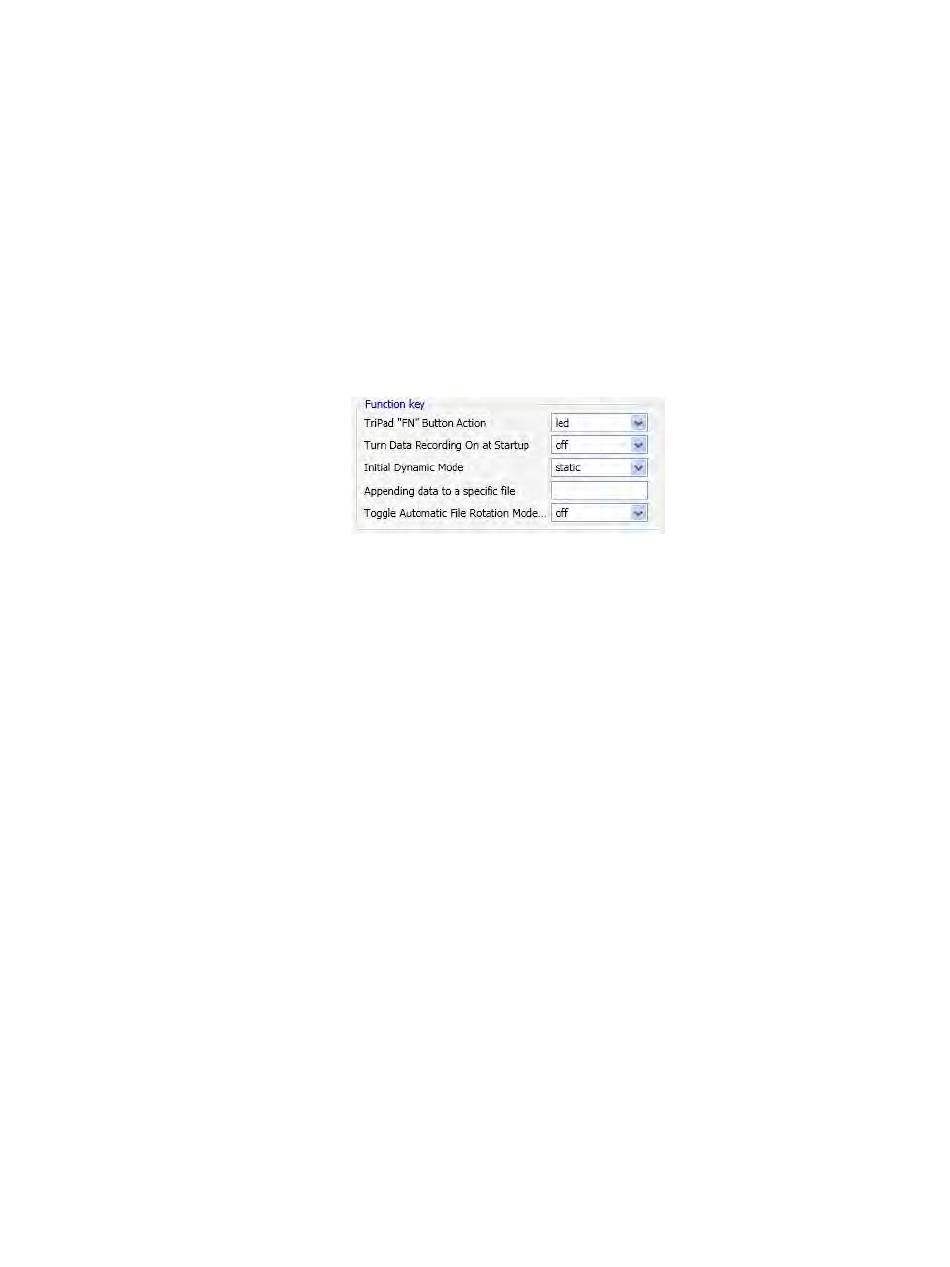

Figure 1-15. Function Key
