Printhead Replacement,

3

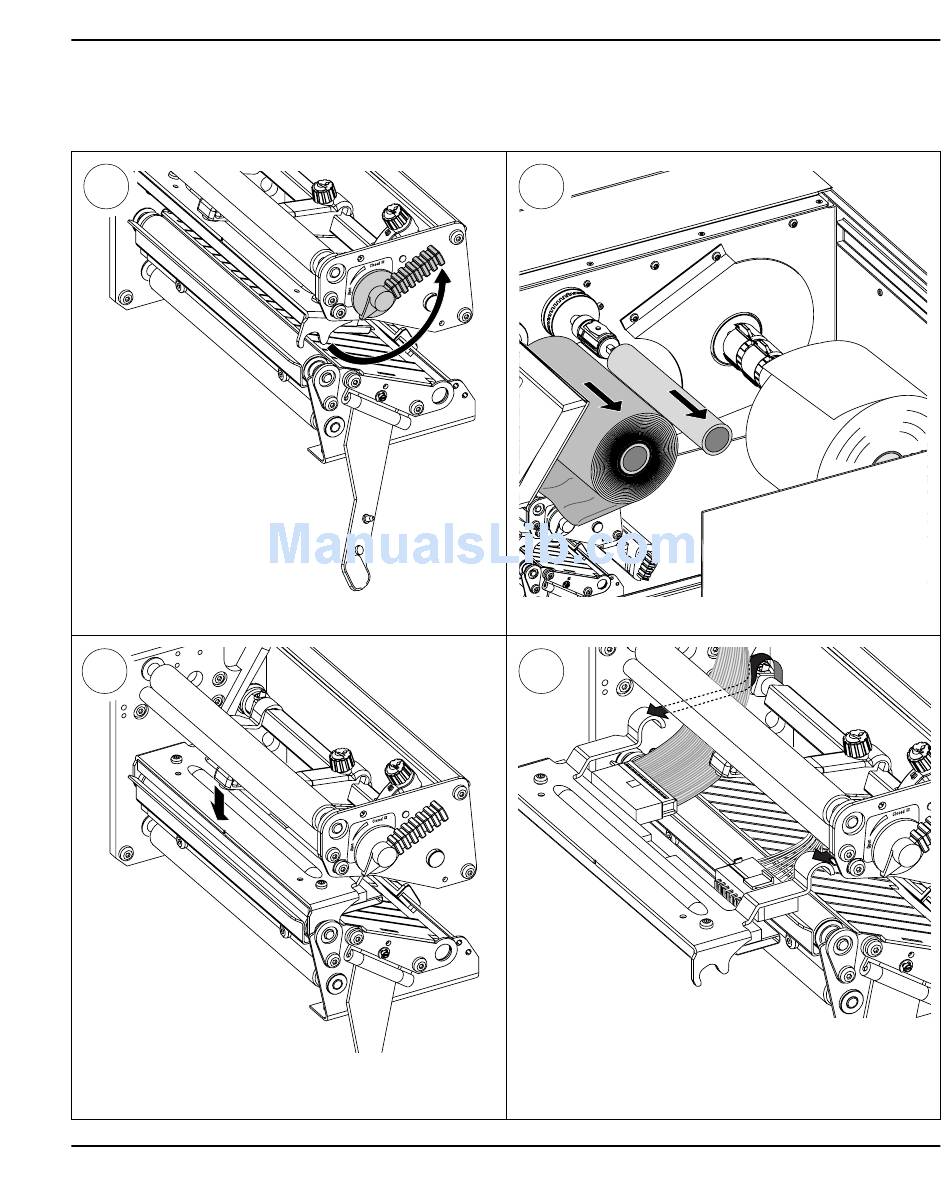

Turn the printhead lift knob to "Open" position.
5
Pull the printhead bracket away from the
magnet in the lift arm
Intermec EasyCoder 601 XP – Installation & Operation Ed. 3
cont'd.
4
Remove the paper and transfer ribbon, if any.
6
Disconnect the hooked printhead bracket fingers
from shaft and pull out the printhead as far as
Chapter 12
the cables allow.
