Peel Off,
cont'd.
6b

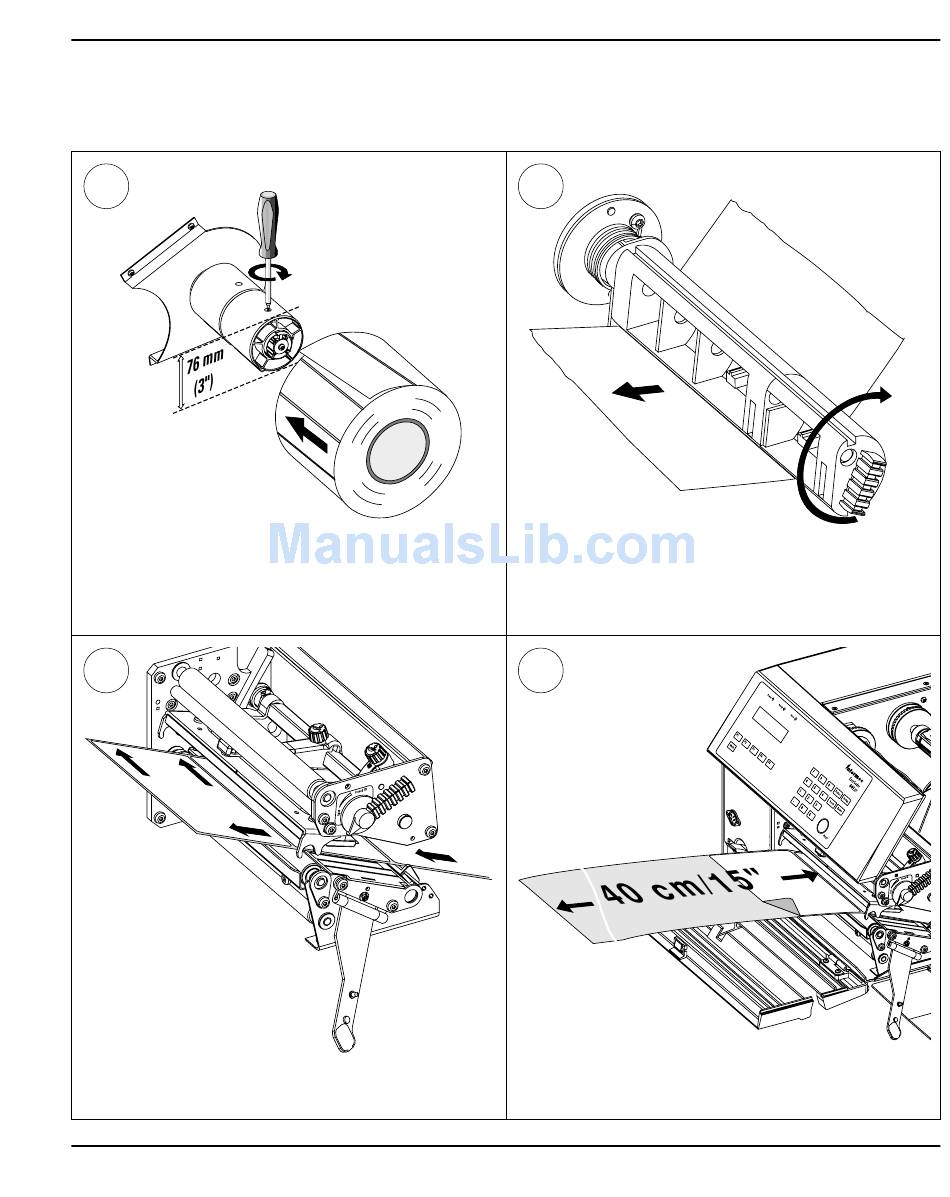

In case of paper roll with a 76 mm (3") core,
first fit two adapters on the paper supply spool.
8
Thread the paper through the print unit and
push it inwards as far as it will go.
Intermec EasyCoder 601 XP – Installation & Operation Ed. 3
7
Thread the paper underneath the slack absorber
and forward towards the print unit. The slack
absorber can be rotated for better access.
9
Pull out approx. 40 cm (15") of label web and
remove the labels from the backing paper.
Chapter 5 Paper Load
39
