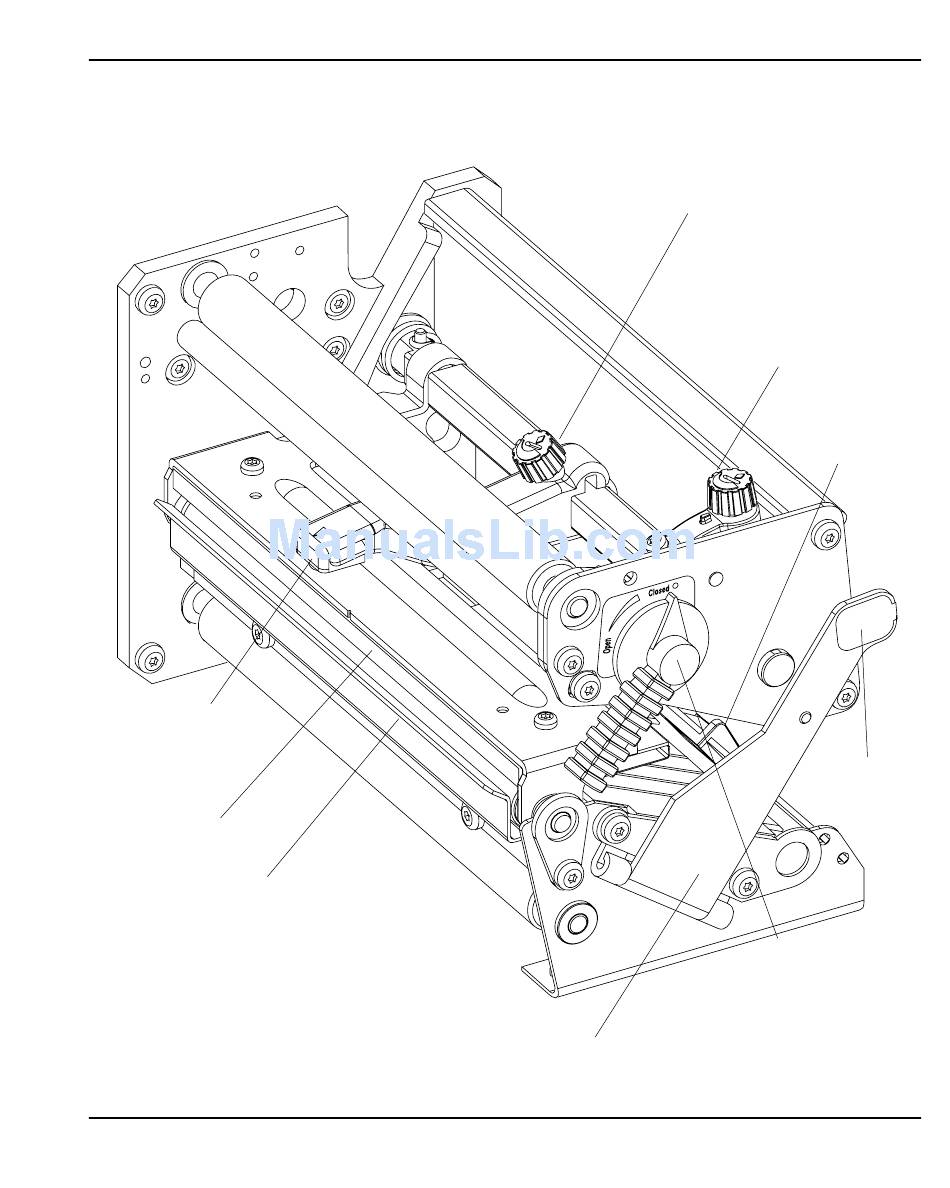

Print Unit
Printhead Lift Arm
Thermal Printhead
Dispenser/Tear Off Edge
Intermec EasyCoder 601 XP – Installation & Operation Ed. 3
The print unit features a high-performance 300 dpi thermal print-
head with quick-mount fittings to facilitate replacement.
Label Stop Sensor
Position Adjustment
(hidden behind locking handle)
Chapter 3
Installation
Lift Arm Locking Knob
Printhead Pressure
Adjustment
Paper Guide
Locking Handle
Printhead Lift Knob
