Peel Off,
cont'd.
10

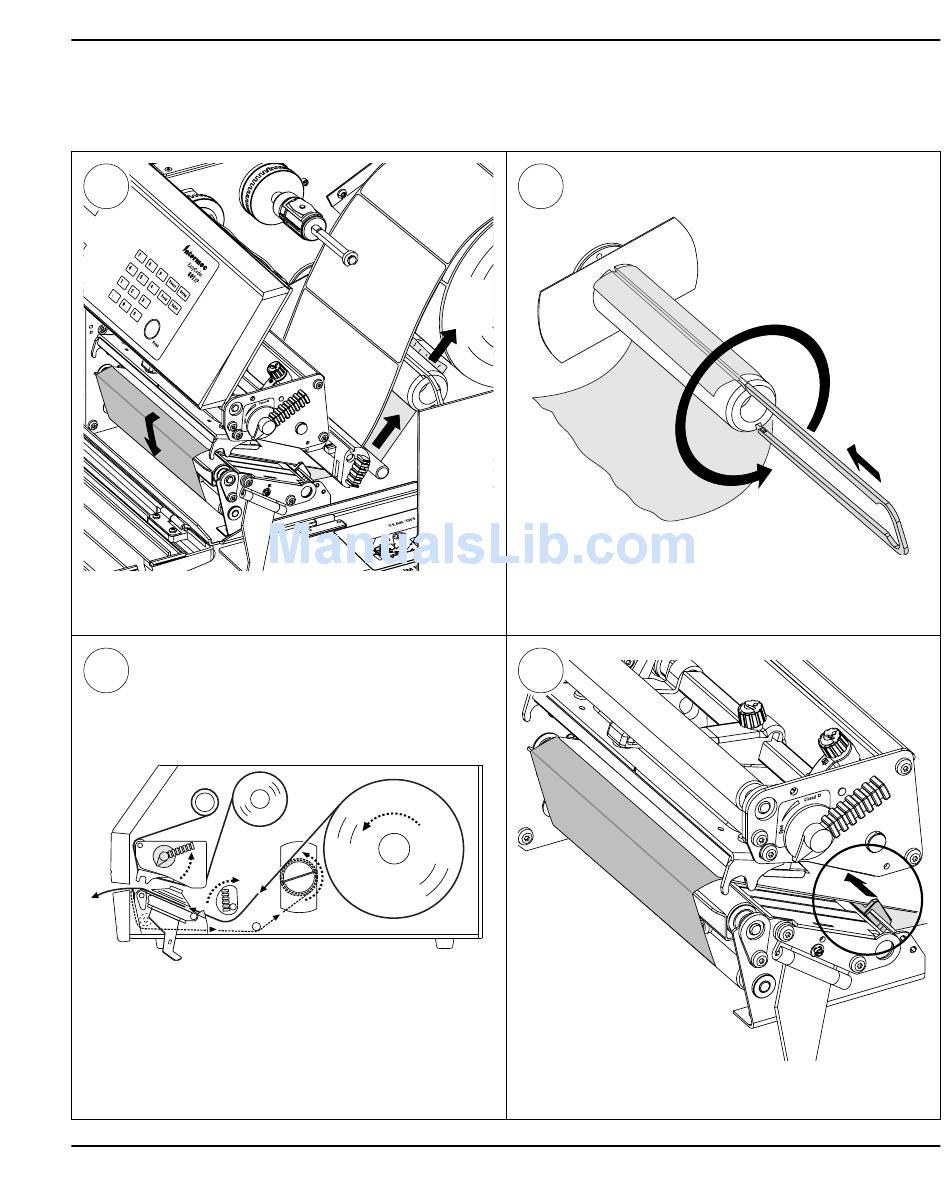

Thread the backing paper around the dispenser
edge and back under the print unit.
12
This diagram shows the path of the labels and
the backing paper.
Intermec EasyCoder 601 XP – Installation & Operation Ed. 3
11
Secure the backing paper with the clip (1) and
rotate the spool so the web becomes tight (2).
13
Adjust the position of the green paper guide so
the paper is guided with a minimum of play.
Chapter 5 Paper Load
